30 Products · Stock Ships Fast
01E Series EX/GR
Mid-load, high-speed. Loose (EX) & located (GR) options. Fits SN/SD housings.
SRB 80–450 mm
Double-row heavy duty, ideal for mining, cement, casting. Sealed, maintenance-free.
SN / SAF Compatible
180° split, drop-in for mainstream pedestal bases.

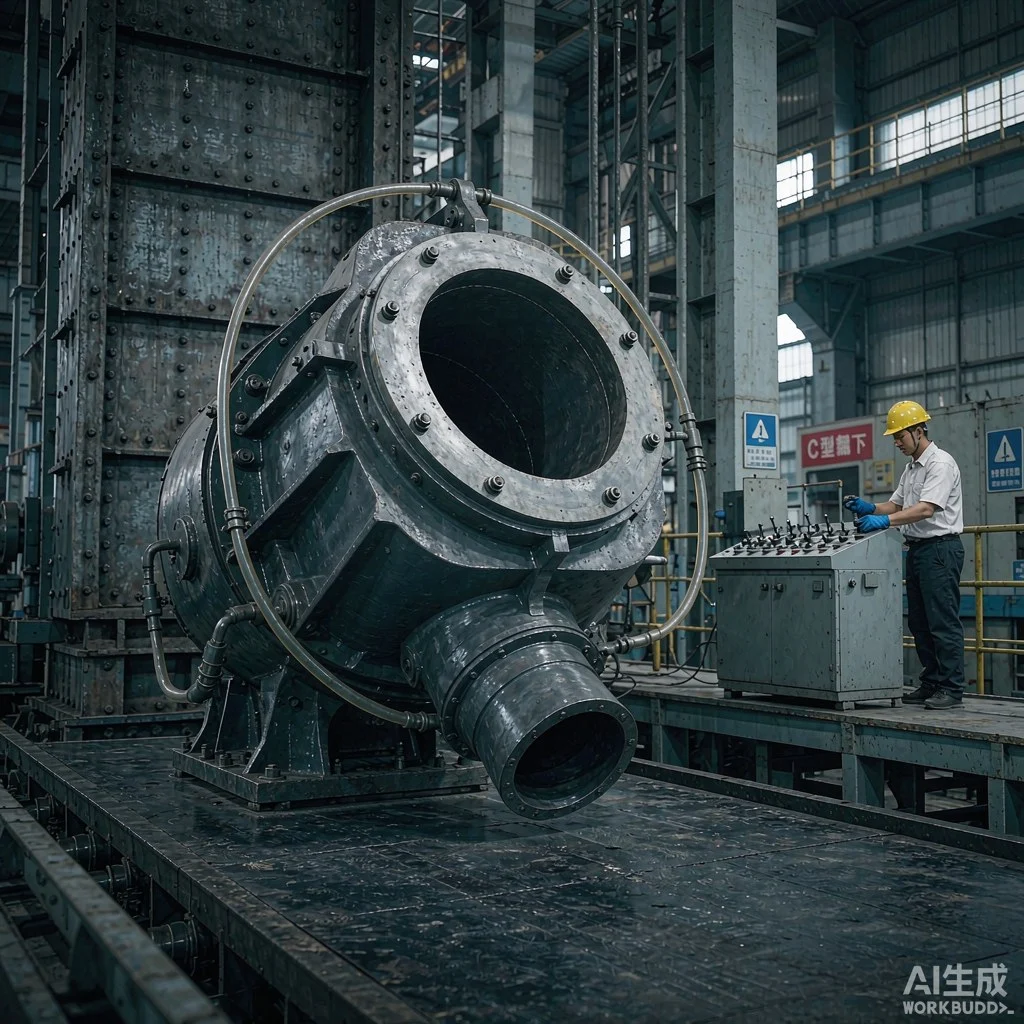

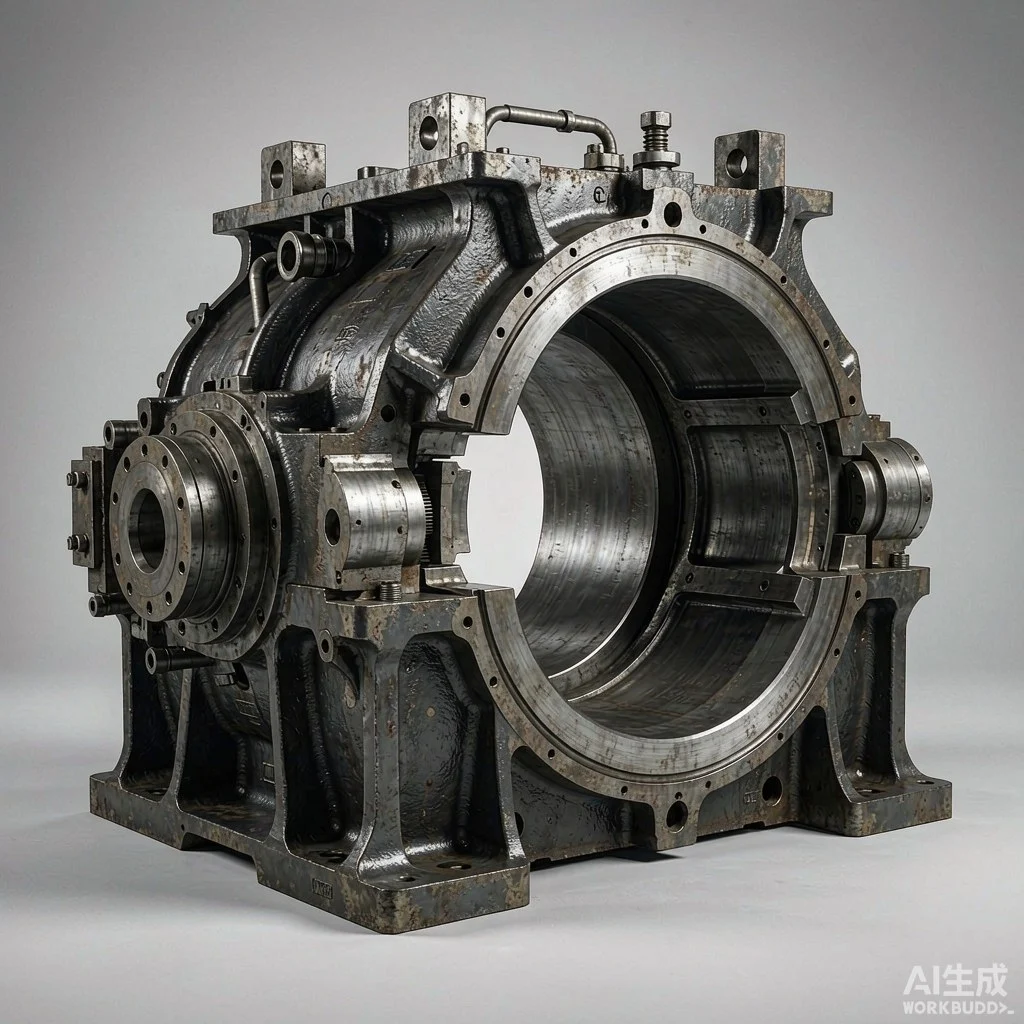

Water-cooled / Large Bore
Made to drawing, bores up to 1500 mm, rapid prototyping.
Double-row Located
Carries bi-directional axial load, for located-end duty.
Selector · Drawings · 3D
Every model ships with dimension tables, 2D drawings & 3D models.

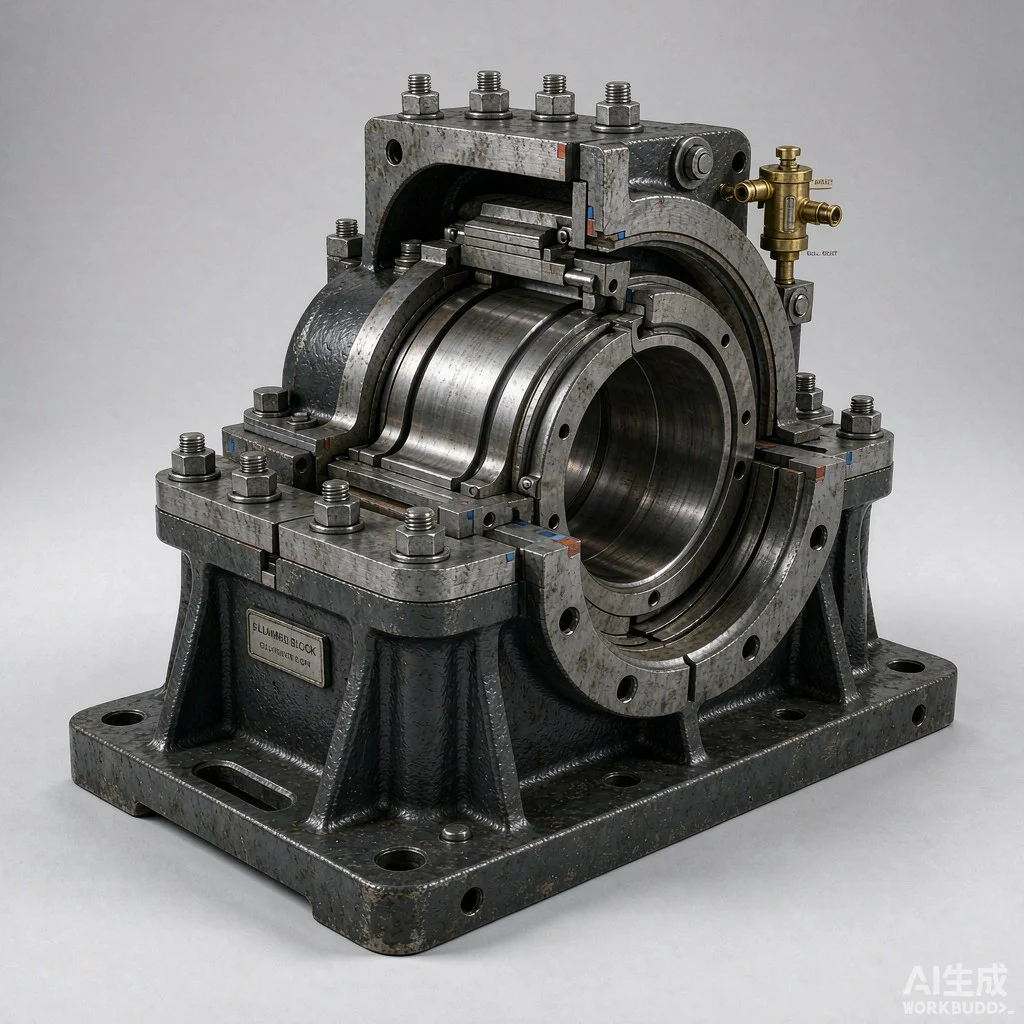

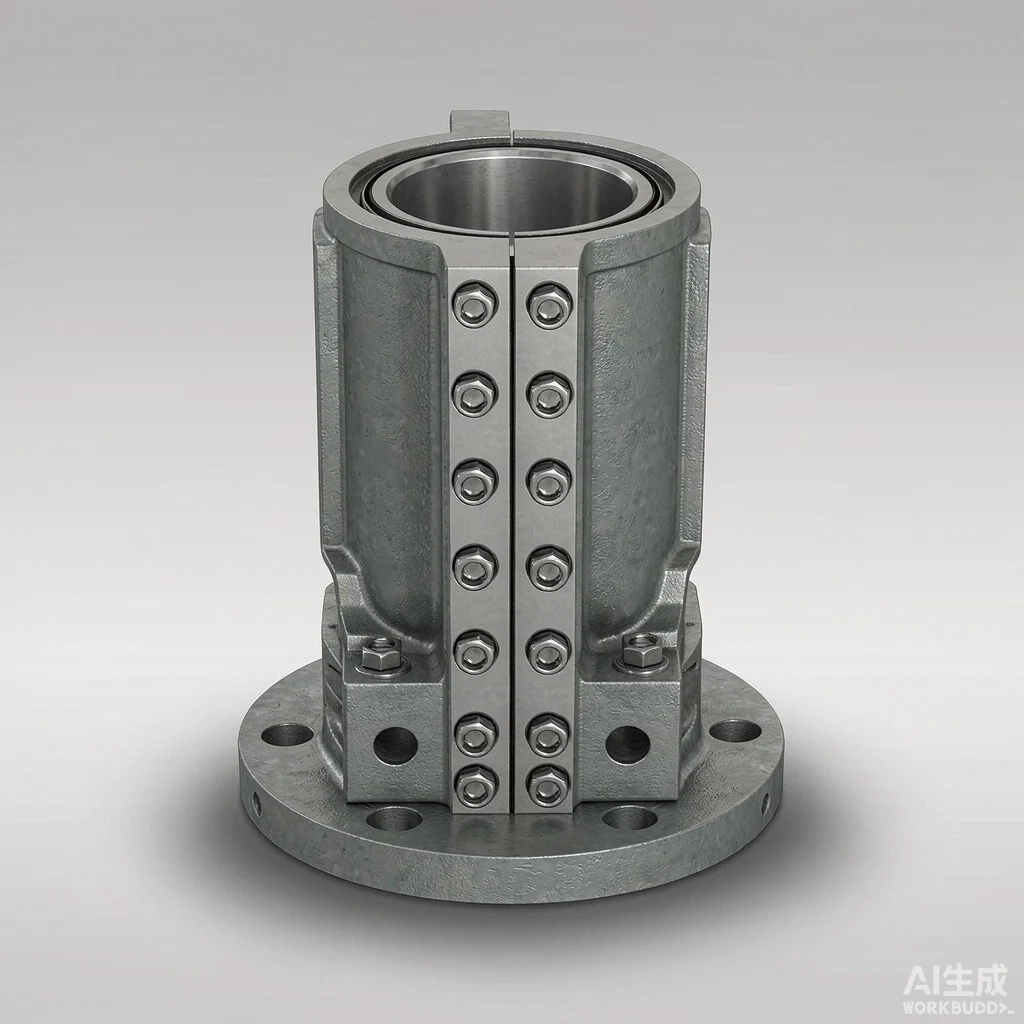

Split Bearing Housing (SD/SAF)
2-part cap + base in grey/ductile iron. Same footprint as SN/SD/SAF — fit our split bearings or your own.

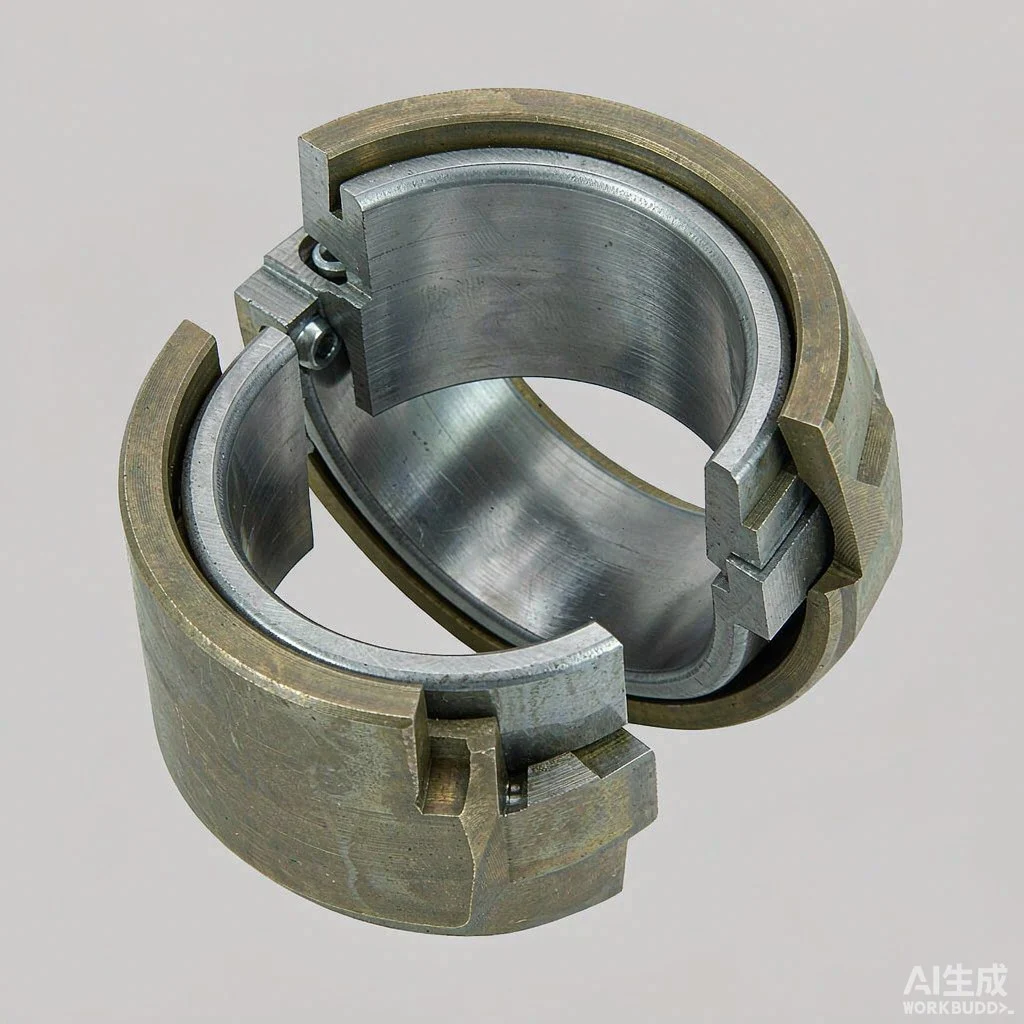

Split Plain Bearing & Shell
Babbitt or bronze shells in a 2-part housing. For low-speed, heavy-load, high-misalignment shafts.

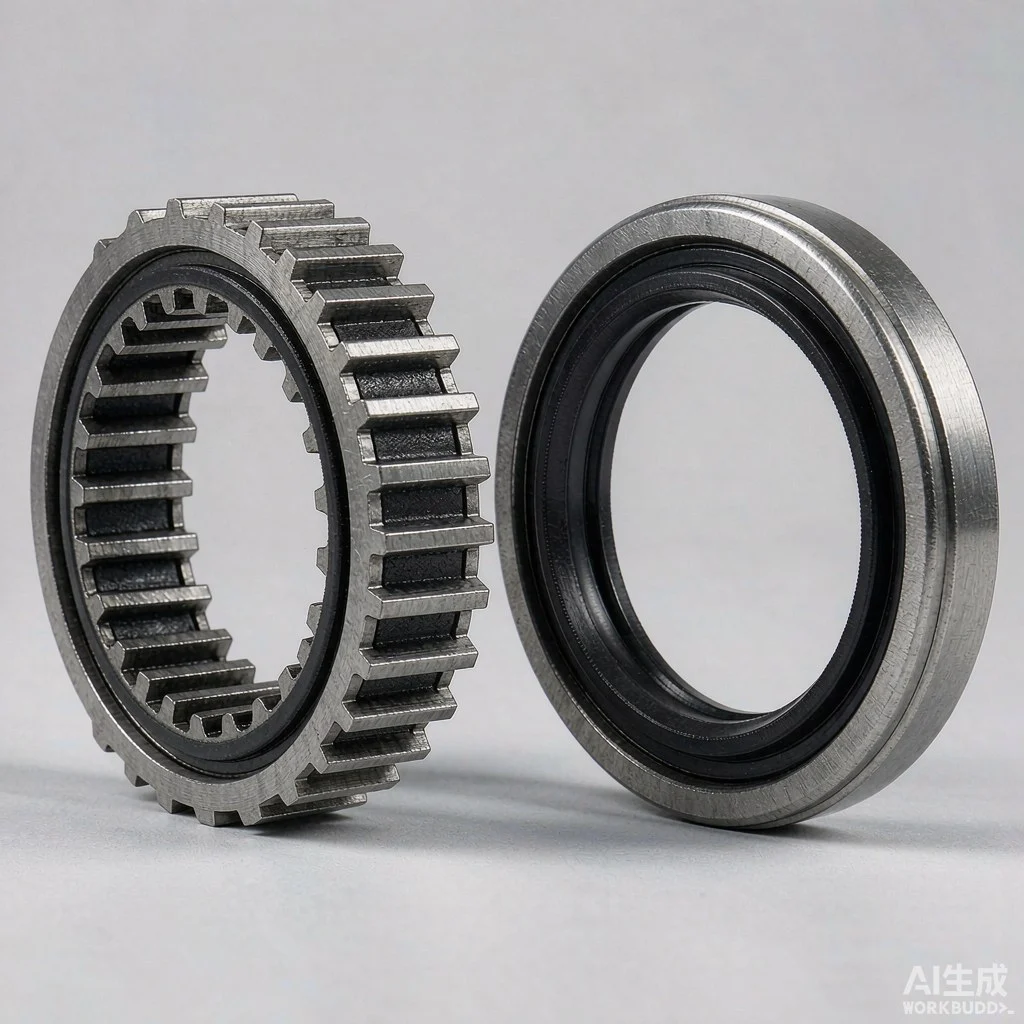

Labyrinth / Contact Seals
Triple-labyrinth, felt and contact styles. IP-rated against dust, water and slurry.
Adapter / Withdrawal Sleeve
Tapered sleeves with lock nut & washer for shaft mounting. Metric and inch sizes, matched to our bearings.

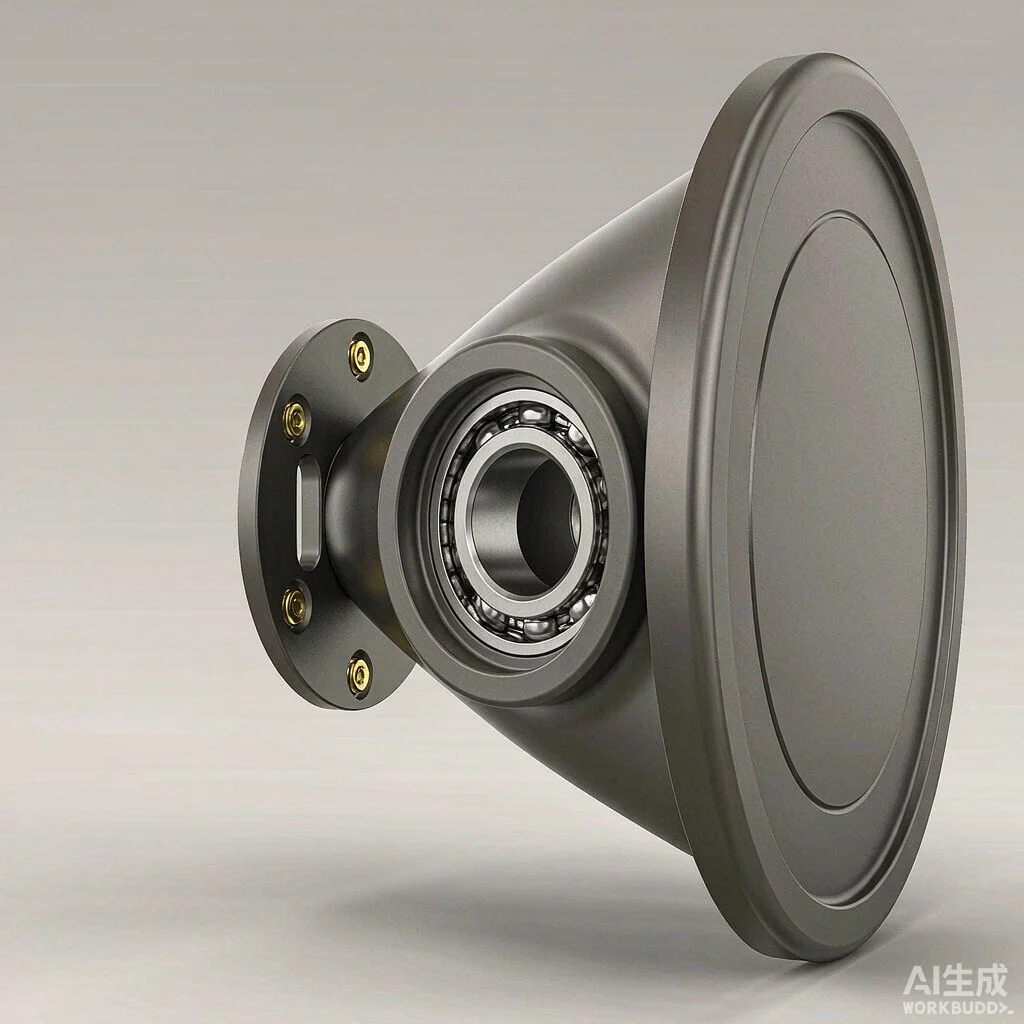

End Cover / Cap
Seals the housing bore end — keeps grease in, contaminants out. Split and solid styles for SN/SD/SAF.

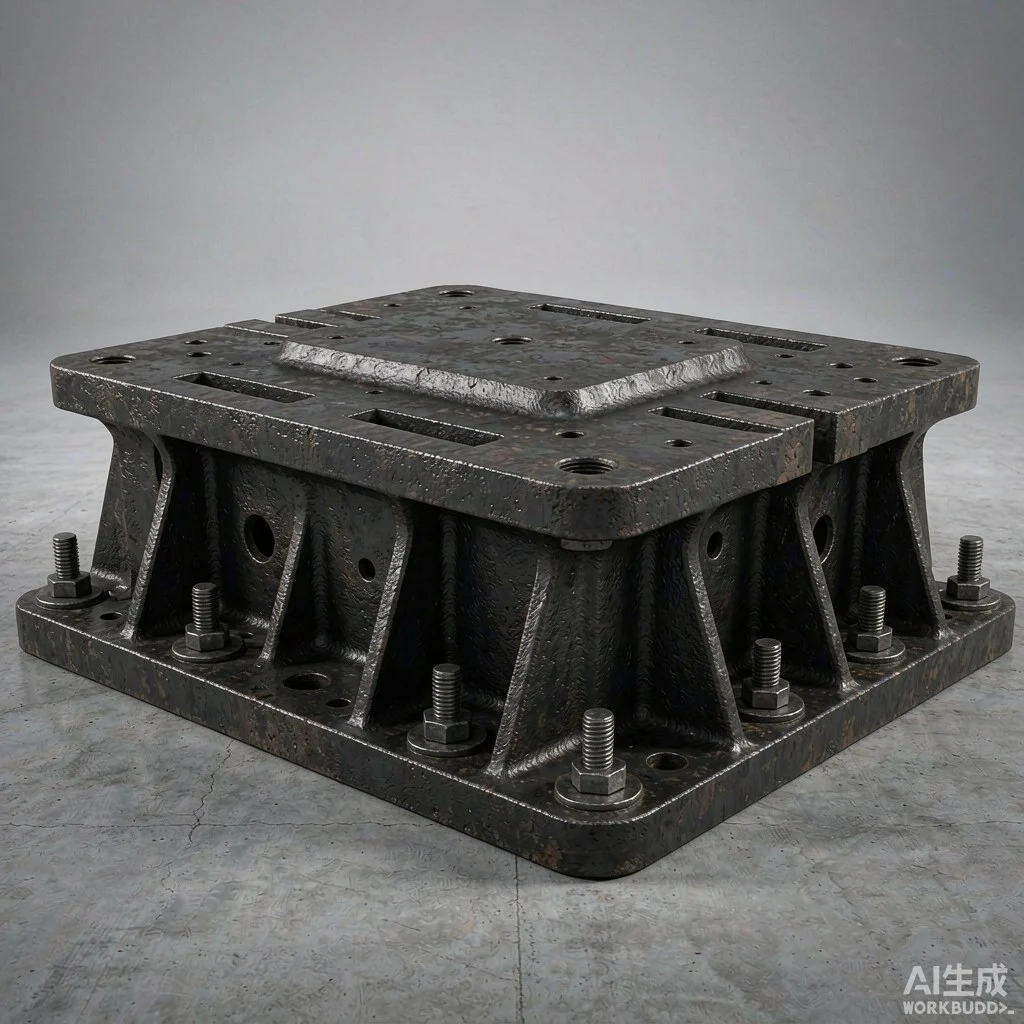

Support Block / Pedestal
Reinforced pedestal bases and flange blocks. Simplifies anchoring and shaft alignment on site.

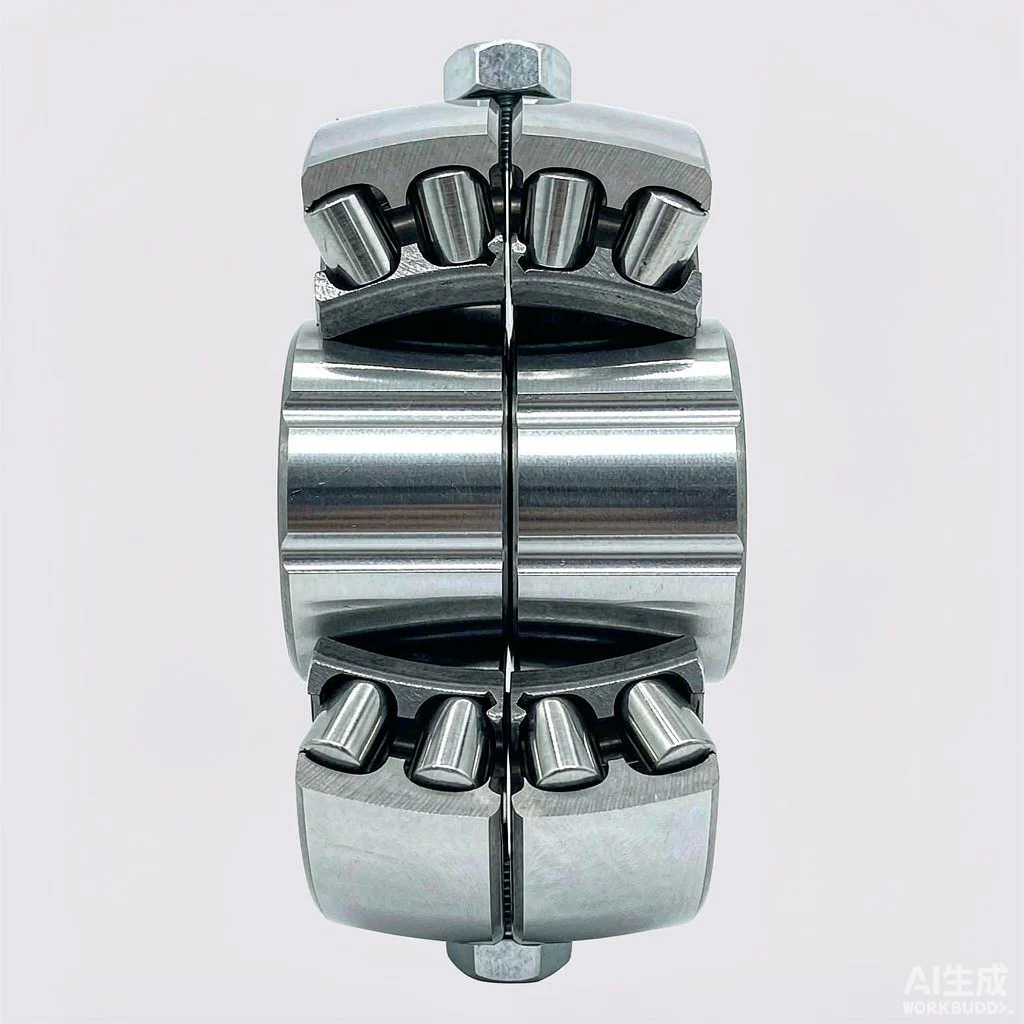

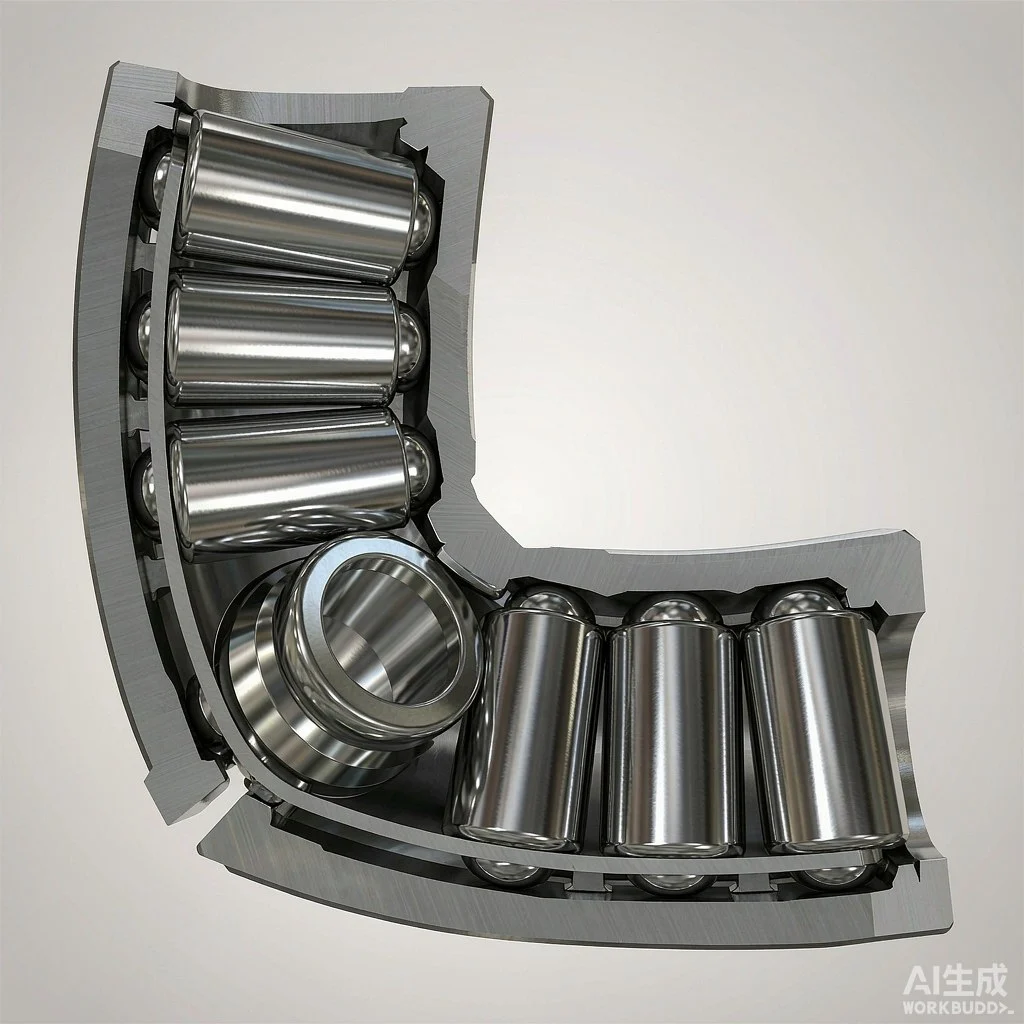

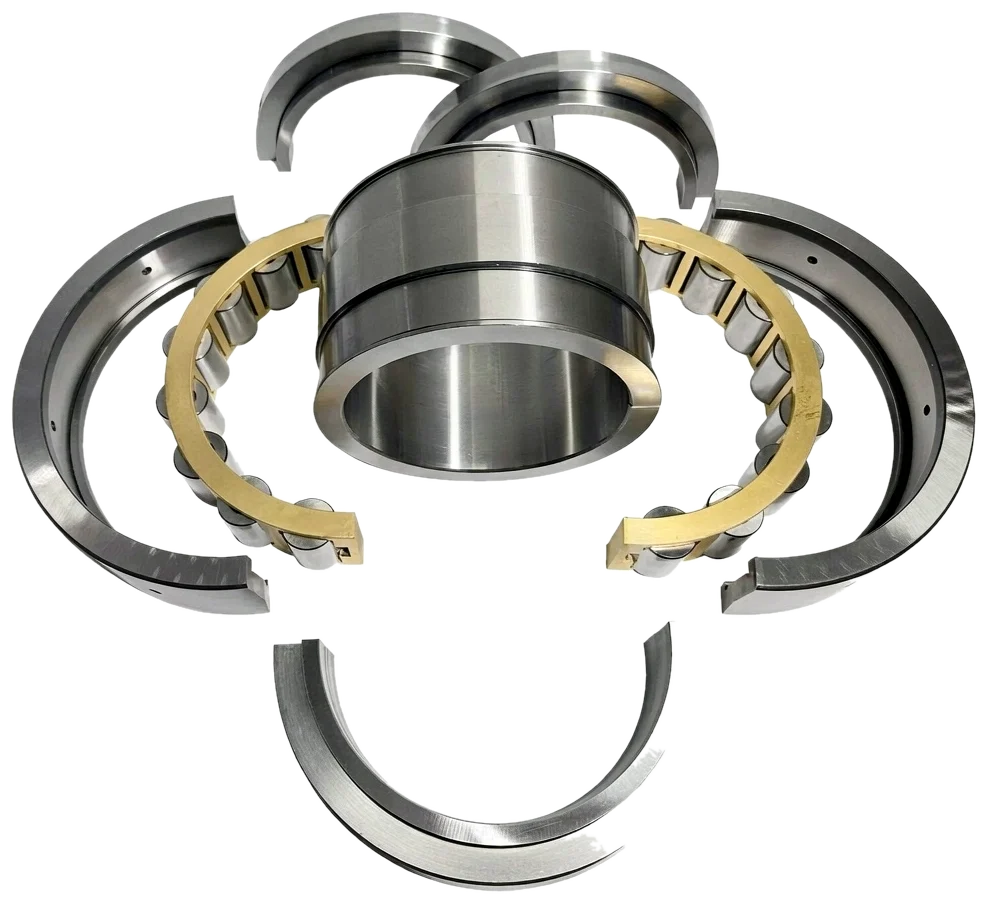

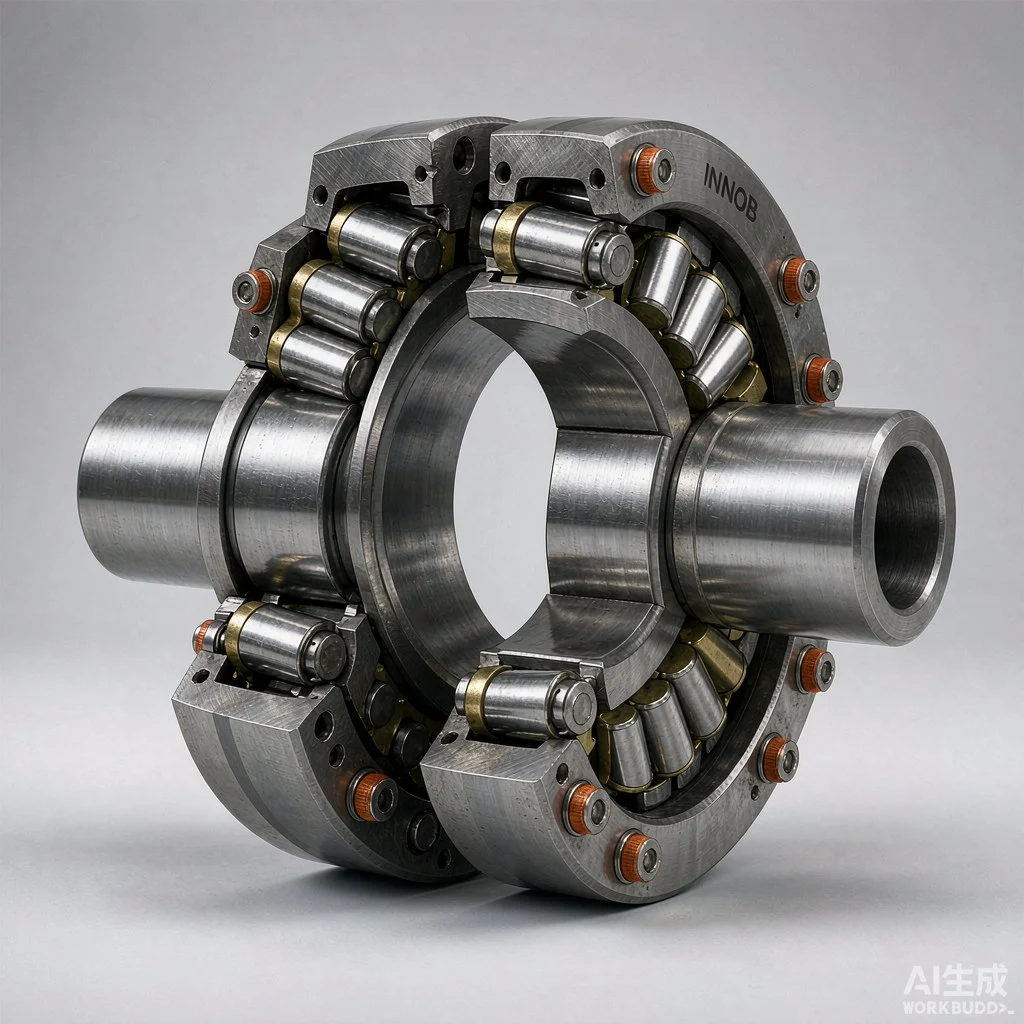

Split Spherical Roller Bearing SRB · 240–450 mm
Quote / Catalog| Type | Split spherical roller (double-row) |
| Bore range | 240 – 450 mm (9.45 – 17.72 in) |
| Load | Heavy radial + bi-axial |
| Sealing | Triple labyrinth + optional waterproof |
| Applications | Mining / Cement / Casting / Power |
| Interchange | Same dims as major brands |
Download engineering files for drop-in replacement validation:
Stock available for standard bores; custom sizes welcome — flexible lead time.
Housings · Plain Bearings · Accessories
Quote / CatalogHousing
| Series | SN (small) · SD (mid/large) · SAF (large) · S3000 |
| Material | Grey cast iron GG25 / Ductile iron GGG40–50 |
| Shaft dia. | 40 – 1500 mm (SN 20–140 / SD 115–900 / SAF 115–1000) |
| Base | 2-bolt / 4-bolt pedestal |
| Sealing | Labyrinth / felt / contact / V-ring |
| Lubrication | Grease nipple / oil bath |
| Interchange | Same bolt pitch & base as SN/SD/SAF |
| Temp. range | −30 ~ +200 ℃ |
| Standard | ISO 113 · DIN 504 |
Plain
| Type | Split journal bearing (split shell) |
| Shell material | Babbitt SnSb11Cu6 / Bronze CuSn8 · CuPb10Sn10 / bi-metal |
| Shaft dia. | 50 – 1500 mm |
| L/D ratio | 0.5 – 2.0 |
| Specific load | Babbitt ≤ 15 MPa · Bronze ≤ 25 MPa |
| Speed | Low speed, sliding < 2 m/s |
| Misalignment | Tolerates up to 1°+ |
| Lubrication | Oil bath / grease / graphite (dry) |
Parts
| Seals | Labyrinth / felt / contact (TC) / V-ring; NBR·FKM·PTFE·steel; IP65/IP66 equiv; −40~+200℃ |
| Adapter sleeve | Series H2xxx / withdrawal AH2xxx; taper 1:12; shaft 17–400 mm (AH to 1000); KM nut + MB washer; ISO 2982 / DIN 5415 |
| End cover | Split & solid; grey iron / steel / PA; for SN/SD/SAF bore; seals bore end |
| Support block | Pedestal / flange / take-up; cast iron or fabricated steel; 2/4-bolt base, drilled to drawing |
Supplied as a complete split system or as individual spares — same dimensions as mainstream brands, freely combined with our split bearings.
Standard sizes in stock; custom drawings welcome — flexible lead time.
