/ Single row roller slewing bearings

mini excavator swing bearing

1.Product Introduction: Customized to fit 1 - 6 tons of small excavators, it can withstand the impact loads and overturning moments during operation, is waterproof and dustproof, and suitable for outdoor complex working conditions.
2.Structure Type: It has a compact annular shape. The inner ring is connected to the machine body, and the outer ring is connected to the slewing platform. It has built-in single-row or double-row steel balls. The raceways are quenched, with double seals on the outside (rubber + dust ring), and the hole positions precisely match the machine body.
3.Size Range: Outer ring diameter: 400 - 1500mm, inner ring diameter: 350 - 1350mm, height: 20 - 60mm.
4.Material: Inner ring / outer ring: 50Mn, 42CrMo; rolling elements: GCr15 bearing steel, GCr15SiMn (optional for impact resistance); seals: nitrile rubber, fluororubber (optional for oil and high temperature resistance).
5.Application Fields: 1 - 6 tons of small excavators (for connecting the slewing platform), small loaders, micro engineering machinery.
6.Key Inspection Items: Quenching hardness (HRC55 - 60), anti-sediment performance of seals.

Send Inquiry

Download

Product Description

Data Sheet

High-Performance Mini Excavator Swing Bearing – Precision Engineered for Heavy-Duty Cycles

30+ Years of OEM Manufacturing Expertise | 48-Hour Standard Delivery | Custom Solutions in 20 Days

When your mini excavator swing bearing fails, downtime costs pile up fast. At LUOYANG INNO BEARING CO., LTD, we engineer products that endure extreme loads, harsh environments, and relentless rotation cycles. With 30+ years of expertise, we deliver bearings that outlast competitors by 20%—backed by ISO 9001 certifications and a 99.9% defect-free guarantee.

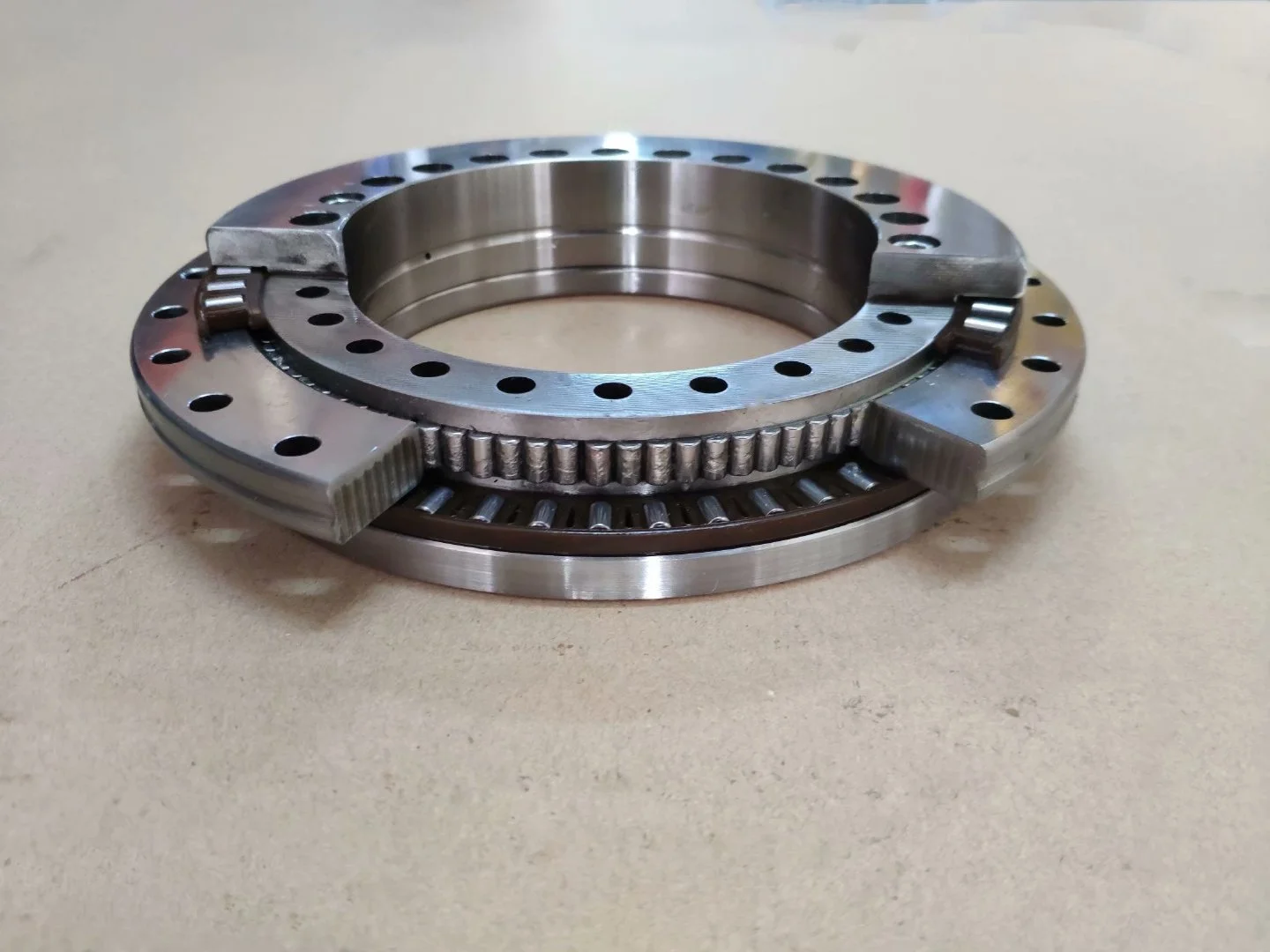

product-1440-1080

Technical Specifications: Built for Maximum Durability

Materials: Inner/outer rings: 50Mn, 42CrMo steel | Rolling elements: GCr15 bearing steel
Load Capacity: Dynamic 50–350 kN·m | Static 100–600 kN·m (adjustable for your excavator’s weight class)
Precision: <0.05mm radial runout (ISO 2768-mK) | HRC 55–60 surface hardness
Seals: Triple-layer NBR/FKM seals with IP67 dust/moisture resistance
Sizes: OD 400–1500mm | ID 350–1350mm | Height 20–60mm

Why Choose Our Mini Excavator Swing Bearings?

✓ Rapid Customization: Reverse-engineer legacy bearings or create new designs in 20 days.

✓ Proven Lifespan: 15,000+ operational hours under dynamic loads, validated by 12+ quality tests.

✓ Global Stock: 1,000+ standard bearings ready to ship within 48 hours.

✓ End-to-End Support: Installation guidance, predictive maintenance plans, and IoT monitoring tools.

product-1406-300

Key Applications: Where Performance Matters

1–6 Ton Mini Excavators: Connect slewing platforms to chassis with precision-fit mini excavator swing bearing.
High-Impact Scenarios: Withstand overturning moments during digging, lifting, and trenching.
Harsh Environments: Operate flawlessly in -30°C to 120°C temperatures and abrasive soil.

3-Stage Quality Assurance: No Compromises

1. Material Checks: Spectral analysis for steel purity | Impact toughness testing.

2. Production Monitoring: Hardness mapping | Raceway grinding accuracy (<0.01mm tolerance).

3. Final Validation: Rotational torque tests | Seal pressure resistance (up to 3 bar).

Global Logistics: Faster to Your Worksite

Americas/EMEA/APAC: Regional stock hubs for 48-hour delivery.
Custom Orders: Door-to-door tracking via DHL/FedEx partnerships.

product-750-1000

FAQ

1. How do you achieve faster lead times for custom bearings?

Our modular production system cuts 30% off standard timelines—prototypes in 20 days.

2. What makes your seals IP67-rated?

Dual rubber + dustproof layers, tested under 1m water immersion for 30 minutes.

3. Can you match legacy excavator bearing specs?

Yes! Send drawings or samples—we'll reverse-engineer a precision-fit solution.

4. Do you support IoT integration?

Ask about bearings with embedded sensors for real-time wear monitoring.

Contact Us

Ready to Upgrade Your Swing Bearing?

Get Your Solution in 3 Steps:

1. Share Requirements: Upload specs, CAD files, or photos.

2. Review Engineering Plan: Get a quote within 4 hours.

3. Fast-Track Production: Receive bearings in 15–20 days (custom) or 48 hours (standard).

📩 Contact Us Today:

Email: sales@inno-bearing.com

Download Resources:

[3D CAD Models] | [Installation Manual] | [Material Certifications]

Your Trusted Partner in Mini Excavator Swing Bearings—Since 1993.

Cross Cylindrical Roller Slewing Bearing-Without Teeth
d124.5～1320mm
Boundary Dimension			Bearing Type	Related Dimension												Weight
d	D	T		D1	d1	d2	DwP	H	h	n1	n2	n3	φ1	φ2	φ3	kg≈	Loading Curve
124.5	234	35	D797/124.5G2	214	143	178	179	30	5	-	16	16	-	3/8(美制）	10	6.53
320	550	85	79764	515	365	438	440	75	10	-	8	12	-	18	17	85.6
320	550	80	110.20.435.12	500	355	434	436	70	10	2	18	18	M10X1	22	22	75.8
400	660	89	79780G2	620	440	529	530	82	7	4	20	20	M10X1	22	22	123
480	595	77	110.25.574/P5	640	508	572.5	574	64	13	2	35	36	M10X1	M16	18	87
600	900	125	797/600G2	848	690	750	752	105	20	3	29	30	M10X1	M24	26	246
670	907	85	797/670	870	730	808	710	80	10	-	8	12	-	18	M16	173
678	922	82	110.28.800.04	878	722	798.5	800	72	10	6	30	30	M10X1	22	22	154
678	922	82	110.28.800.12	878	722	798.5	800	72	10	6	30	30	M10X1	22	22	154
700	1000	140	797/700G	940	770	879	880	130	10	4	24	24	M10X1	22	M20	370
845	1150	130	797/845G2	1100	895	1050	1005	105	10	6	24	24	M6	22	22	393
870	1090	79	797/870K1	1050	910	978.5	980	72	7	4	44	44	M10X1	22	22	164
870	1180	115	797/870G	1125	920	1023	1025	100	15	2	18	18	M8X1	28	28	355
870	1180	115	797/870K1	1125	920	1023	1025	100	15	2	18	18	M10X1	28	28	355
870	1180	115	797/870G2K1	1125	920	1023	1025	100	15	2	18	18	M10X1	28	28	356
890	1080	82	797/895G2	1015	922	973	975	70	12	6	30	30	M10X1	M16	M16	139
962	1200	90	797/962G2	-	-	1088	1090	76	10	-	-	-	-	-	-	224
1000	1270	100	792/1000G2	1220	1050	1132	1135	85	15	4	36	36	M10X1	19	19	303
1000	1270	100	792/1000G2K	1220	1050	1132	1135	85	15	3	36	36	9	19	19	303
1000	1270	100	792/1000G2K1	1220	1050	1132	1448	85	15	-	36	36	-	19	19	303
1000	1270	100	792/1000G2K2	1220	1050	1132	1135	85	15	-	36	36	-	19	19	303
1000	1270	100	792/1000G2K5	1220	1050	1132	1135	85	15	2	36	36	20	19	19	304
1000	1270	100	792/1000G2K6	1220	1050	1132	1135	85	15	4	36	36	20	19	19	304
1060	1400	120	797/1060G2	-	-	1248	1250	120	0	-	-	-	-	-	-	596
1060	1400	120	797/1060G2K1	1340	1126	1228	1230	110	10	2	36	36	20	26	26	517
1060	1400	120	797/1060G2K2	1340	1126	1228	1230	110	10	4	36	36	20	26	26	517
1060	1400	120	797/1060G2K3	1340	1126	1228	1230	110	10	2	36	36	20	26	26	517
1060	1400	120	797/1060G2K4	1340	1126	1228	1230	110	10	4	36	36	20	26	26	517
1120	1340	70	LY-8010	-	-	1230	1232	70	0	2	-	-	6	-	-	224
1200	1520	90	797/10200G2	-	-	1356	1360	90	0	-	-	-	-	-	-	504
1250	1608	148	797/1250G2	1512	1297	1403	1405	128	20	4	16	16	M10X1	25	25	743
1250	1608	148	797/1250G2K	1512	1297	1403	1405	128	20	4	16	16	M10X1	25	25	717
1250	1700	155	792/1250G2	1650	1330	1446	1448	140	10	6	24	24	M10X1	26	26	1103
1278	1660	120	797/1278G2K	1535	1335	1428	1430	105	15	4	18	18	M10X1	26	26	589
1280	1600	175	792/1280G2	1550	1340	1445	1448	160	15	12	24	24	M12	22	22	758
1320	1715	134	D797/1320G2	-	-	1503	1506	134	0	-	-	-	-	-	-	958
1320	1719	134	D797/1320G2K2	-	-	1532	1534	134	0	8	-	-	12	-	-	967
1320	1720	134	797/1320G2K	-	-	1532	1534	134	0	-	-	-	-	-	-	965
1320	1720	134	797/1320G2K1	-	-	1532	1534	134	0	-	-	-	-	-	-	965
1320	1720	134	797/1320G2K3	-	-	1532	1534	134	0	8	-	-	12	-	-	963
1370	1840	160	797/1370G	1770	1430	1598	600	140	10	4	24	30	M10X1	28	28	1213
1380	1700	145	797/1380G2	1650	1440	1574	1533	140	5	6	24	24	M10X1	27	27	746
1380	1700	145	797/1380G2K	1620	1440	1574	1533	118	5	6	24	24	M10X1	27	27	746
1412	1680	170	3-944G2	-	1460	1544	1546	170	25	2	24	-	M10X1	18	-	725
1412	1680	170	3-977G2K	-	1460	1544	1546	170	25	2	24	-	M10X1	18	-	723
1412	1680	185	3-944G2K1	-	1460	1544	1546	170	40	2	24	-	M12X1.25	18	-	759
1412	1680	170	3-944G2K2	1618	1470	1549	1551	170	25	4	20	14	M10X1	M20	M10	693
1600	2140	145	797/1600G	1940	1710	1828	1830	135	10	4	48	48	M10X1	26	26	1357
1776	2210	150	797/1776G2	2105	1840	1968	1970	135	15	4	36	36	M10X1	26	26	1244
1776	2210	150	797/1776G2K	2105	1840	1968	1970	135	15	4	36	36	M10X1	26	26	1244
1825	2178	112	110.40.2000.12	2110	1891	1991	1993	100	12	8	48	48	M10X1	33	33	900
1825	2178	112	110.40.2000.03K	2110	1891	1991	1993	100	12	8	24	24	M10X1	26	M24	806
1860	2320	151	797/1860G2	2245	1980	2113	2115	141	1	6	42	42	M10X1	33	33	1772
1860	2320	151	797/1860G2K	2245	1980	2113	2115	141	1	20	42	42	M14X1.5	33	33	1772
1860	2320	151	LY-8009	2245	1980	2113	2115	141	1	6	42	42	M12	33	33	1771
1916	2320	150	797/1916G2	2245	1980	2113	2115	130	15	3	42	42	M10X1	34	34	1214
2065	2418	112	110.40.2240.12K	2350	2131	2237.5	2240	100	12	9	18	18	M10X1	26	M24	929
2190	2860	300	797/2190G	2800	2270	2530	2540	260	40	12	36	36	8	32	32	4797
2325	2678	112	110.40.2500.12	2610	2391	2498.5	2500	100	12	8	56	56	M10X1	33	33	876
2325	2678	112	110.40.2500.12K	2610	2391	2497.5	2500	100	12	8	56	56	M16X1.5	33	33	876
2500	2980	180	797/2500G2	2910	2590	2739	2741	170	10	6	48	48	M16X1.5	33	33	2913
2500	2980	180	797/2500G2K	2910	2590	2739	2741	170	10	6	48	48	M10X1	33	33	2913
2500	2980	180	797/2500G2K1	2910	2590	2739	2741	170	10	3	48	48	M16X1.5	34	34	2913
2625	2978	130	110.40.2800.11K	2910	2691	2798	2800	118	30	8	16	16	M10X1	33	33	1287
2800	3310	190	792/2800G	3220	2890	3050	3055	165	25	2	60	60	M10X1	39	39	2864
2992	3628	216	D797/2992	3472	3092	3289.5	3292	194	16	6	72	72	M10X1	33	33	4747
2922	3376	134	110.50.3150.03K	3286	3014	3147.5	3150	122	12	9	56	56	M10X1	33	33	1987
3116	3494	150	110.40.3300.03	3428	3182	3298	3300	140	28	14	56	56	M10X1	33	33	1864
