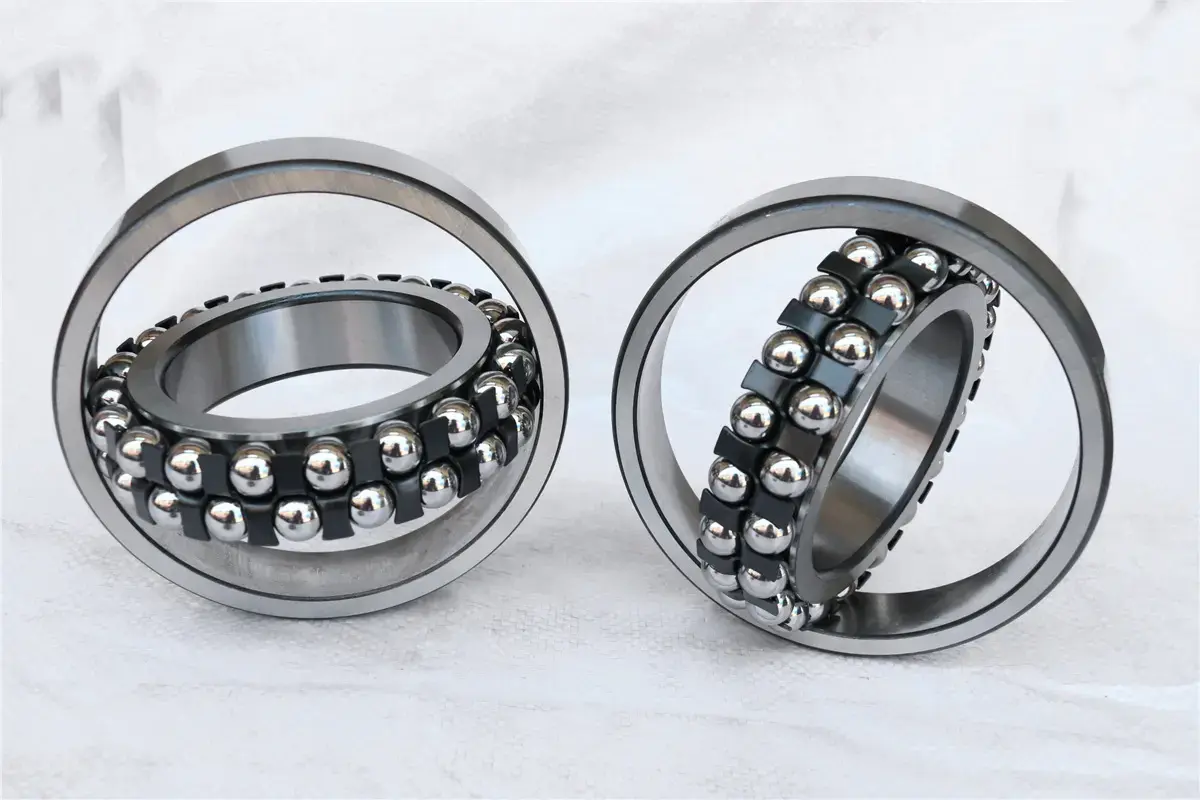

/ Self aligning ball bearings

2202 2rs bearing

1.Product Introduction: The miniature model of self-aligning ball bearings (2202), with an inner diameter of 15mm and equipped with 2RS double-sided rubber seals, having a compact size, suitable for miniature sealed equipment.
2.Structure Type: Inner ring (with cylindrical hole) + outer ring (with miniature spherical raceway) + single-row small-diameter steel balls + engineering plastic cage + double-sided rubber seals, without redundant protrusions.
3.Size Range: Inner diameter: 15mm, outer diameter: 35mm, width: 14mm.
4.Material: Inner ring / outer ring: GCr15, rolling elements (steel balls): GCr15, cage: engineering plastic, seals: nitrile rubber (2RS).
5.Accuracy: Conventional P0 grade, precision models are of P6 grade.
6.Application Fields: Micro-motors (below 1kW), household appliances (washing machines), small water pumps, instruments and meters (flow meters).
7.Key Inspection Items: Contact performance of seals, radial clearance (0.005 - 0.02mm), integrity of steel balls (no bumps or collisions).

Send Inquiry

Download

Product Description

DATA SHEET

2202 2RS Bearing: High-Performance Solution for Extreme Industrial Environments

Looking for a reliable 2202 2RS bearing that thrives under high temperatures and heavy loads? Designed for metallurgy, mining, and heavy machinery, this double-sealed bearing combines compact size (15mm bore, 35mm OD) with robust construction. Its nitrile rubber seals (2RS) protect against contaminants while maintaining smooth operation in harsh conditions. With a dynamic load rating of 12.3kN and heat resistance up to 150°C, it’s engineered to reduce downtime in demanding applications like rolling mills and smelting equipment.

product-1-1

Technical Specifications & Certifications

Dimensions: Inner Diameter 15mm | Outer Diameter 35mm | Width 14mm
Materials: GCr15 chrome steel rings & balls | Engineering plastic cage
Seals: Double rubber (2RS) for dust/fluid protection
Temperature Range: -30°C to +150°C
Precision: Standard P0 or optional P6 grade
Noise Level: ≤35dB under load
Certifications: ISO 9001, ISO 15243 (fatigue tested)

Where the 2202 2RS Bearing Excels?

Metallurgy & Mining

To address the continuous impact loads of metallurgical equipment and the high dust content of mining environments, the bearings feature a reinforced raceway design (surface hardness reaches HRC 60-62) to withstand frequent impacts without deformation. Double rubber seals (2RS) prevent the intrusion of ore debris and metal dust, extending the maintenance cycle by 30% compared to standard bearings and reducing the frequency of equipment disassembly and repairs.

Medical & Precision Equipment

Achieve P4-grade accuracy (≤8μm runout) with our precision-tuned version, ideal for surgical tools and lab devices requiring noise levels below 35dB.

Heavy-Duty Conveyors

Reinforced raceways handle radial loads up to 12.3kN, even in dusty mining environments.

Tailored to Your Needs

Need a custom 2202 2RS bearing? We adjust:

Bore/OD: ±0.5mm tolerance
Sealing type: Optional fluororubber seal (oil-resistant, chemical-resistant) or metal dust cover (ZZ type, high rigidity)
Lubrication: Grease, oil, or dry-film options
Precision: Upgrade to P4 grade

Non-standard orders ship in 15-20 days.

Built to Last: Our Quality Promise

Every product undergoes:

Material Testing: Spectral analysis for 99.7% steel purity.
Precision Grinding: Tolerance control within 0.001mm.
Performance Validation: 12+ tests including vibration (ISO 15242) and seal integrity checks.

Result: 99.9% defect-free delivery since 2021.

product-1-1

Fast Global Delivery

Standard Orders: 1,000+ units shipped in 48 hours from regional hubs (USA, Germany, South Korea).
Low MOQ: 100 units for urgent replacements.

Your Partner in Bearing Performance

With 30+ years in industrial bearings, we provide:

24/7 Technical Support: Troubleshoot installation or lubrication issues.
IoT Monitoring Kits: Track bearing health in real time (free with bulk orders).
Lifetime Optimization Guides: Extend bearing lifespan by 40% with our maintenance protocols.

FAQs

1.How do 2202 2RS bearings cope with the high dust pollution in mining environments?

The double rubber seal (2RS) features a reinforced lip design. The sealing lip fits tightly against the inner ring, blocking over 99% of fine dust. At the same time, the long-lasting grease filled inside the bearing forms an oil film barrier, preventing direct contact between dust and the steel balls and reducing wear.

2. Can you modify the bore without losing load capacity?

Yes! We reinforce raceways during customization to maintain the 12.3kN dynamic load rating.

3. What testing ensures vibration resistance?

Each bearing undergoes ISO 15242-compliant vibration tests, with results documented in your QC report.

4. How do you guarantee 48-hour delivery?

Regional warehouses stock 10,000+ standard units, backed by our modular production system.

product-1-1

Contact Us

Upgrade to Reliability

Reduce unplanned downtime with a 2202 2RS bearing built for your toughest challenges.

📩 Contact Us Today: sales@inno-bearing.com for pricing or custom quotes.

d 17~45mm
Overall Dimensions				Rated Load		Limiting Rotational Speed		Bearing Designation				Mounting Dimensions			Calculation Coefficient				Weight
Overall Dimensions				Rated Load		Limiting Rotational Speed		Cylindrical Bore	Tapered Bore	Cylindrical Bore	Tapered Bore	damin	Damax	ramax	e	Y1	Y2	Y0
d	D	B	rmin	Dynamic Load C	Static Load C。	Grease	Oil	Current Model		Original Model		damin	Damax	ramax	e	Y1	Y2	Y0
mm				kN		r/min						mm							kg
17	40	12	0.6	8.67	2.45	13500	16200	1203	1203K	1203	111203	21	36	0.6	0.31	2	3.1	2.2	0.076
20	47	14	1	12.4	3.2	13500	16200	1204	1204K	1204	111204	25	42	1	0.27	2.3	3.6	2.4	0.119
20	52	21	1.1	18.2	4.75	10000	13000	2304	2304K	1604	111604	26.5	45.5	1	0.51	1.2	1.9	1.3	0.219
25	52	15	1	14	4.05	11700	14400	1205	1205K	1205	111205	30	47	1	0.27	2.3	3.6	2.4	0.144
	52	18	1	16.5	4.28	11700	14400	2205	2205K	1505	111505	30	47	1	0.41	1.5	2.3	1.5	0.187
	62	17	1.1	18.6	6	8500	11000	1305	1305K	1305	111305	31.5	55.5	1	0.27	2.3	3.5	2.4	0.258
	62	24	1.1	26.5	6.95	8500	11000	2305	2305K	1605	111605	31.5	55.5	1	0.47	1.3	2.1	1.4	0.354
30	62	16	1	15.6	5.85	9000	11700	1206	1206K	1206	111206	35	57	1	0	3	4	2.7	0.227
	62	16	1	15.6	5.85	9000	11701	1206TNI				35	57	1	0.24	2.6	4	2.7	0.224
	62	20	1	23.3	5.68	9500	11700	2206	2206K	1506	111506	35	57	1	0.39	1.6	2.4	1.7	0.26
	72	19	1.1	22.1	7.8	8100	10000	1306	1306K	1306	111306	36.5	65.5	1	0.34	2.4	3.8	2.6	0.39
35	72	17	1.1	18.6	6.7	8100	10000	1207	1207K	1207	11207	42	66	1	0	3	4	2.9	0.347
	72	23	1.1	30.1	8.6	8100	10000	2207	2207K	1507	111507	41.5	655	1	0.38	1.7	2.6	1.8	0.441
	80	21	1.5	26	9.8	6800	8100	1307	1307K	1307	111307	43	72	1.5	0.25	2.6	4	2.7	0.538
	80	31	1.5	39.7	12.9	6800	8100	2307	2307K	1607	111607	43	72	1.5	0.46	1.4	2.1	1.4	0.675
40	80	18	1.1	19.5	8.65	6800	8100	1208	1208K	1208	11208	47	74	1	0	3	4	3	0.419
	80	23	1.1	31.2	9.8	6800	8100	2208	2208K	1508	111508	46.5	73.5	1	0.34	1.9	2.9	2	0.53
	90	23	1.5	33.1	12.2	6000	7200	1308	1308K	1308	111308	48	82	1.5	0.24	2.6	4	2.7	0.711
	90	33	1.5	52.9	15.6	6000	7200	2308	2308K	1608	111608	48	82	1.5	0.43	1.5	2.3	1.5	0.93
45	85	19	1.1	22.4	9.65	6000	7200	1209	1209K	1209	111209	51.5	78.5	1	0.21	2.9	4.6	3.1	0.493
	85	23	1.1	31.9	10.8	6000	7200	2209	2209K	1509	11509	51.5	78.5	1	0.31	2.1	3.2	2.2	0.553
	100	25	1.5	38.2	16	5700	6800	1309	1309K	1309	11309	53	92	1.5	0.25	2.5	3.9	2.6	0.951
	100	36	1.5	62.4	19.6	5700	6800	2309	2309K	1609	111609	53	92	1.5	0.42	1.5	2.3	1.6	1.25
d 50～750mm
Overall Dimensions				Rated Load		Limiting Rotational Speed		Bearing Designation				Mounting Dimensions			Calculation Coefficient				Weight
Overall Dimensions				Rated Load		Limiting Rotational Speed		Cylindrical Bore	Tapered Bore	Cylindrical Bore	Tapered Bore	damin	Damax	ramax	e	Y1	Y2	Y0
d	D	B	rmin	Dynamic Load C	Static Load C。	Grease	Oil	Current Model		Original Model		damin	Damax	ramax	e	Y1	Y2	Y0
mm				kN		r/min						mm							kg
50	90	20	1.1	26	10.8	6300	7700	1210	1210K	1210	111240	56.5	83.5	1	0.2	3.1	4.8	3.3	0.545
	90	23	1.1	33.1	11.2	6300	7700	2210	2210K	1510	111510	56.5	83.5	1	0.29	2.2	3.4	2.3	0.678
	110	27	2	43.6	17.6	5000	6000	1310	1310K	1310	111310	59	101	2	0.24	2.7	4.1	2.8	121
	110	40	2	63.7	20	5000	6000	2310	2310K	1610	111610	59	101	2	0.43	1.5	2.3	1.6	1.66
55	100	21	1.5	27	13.4	5000	6000	1211	1211K	1211	111211	63	92	1.5	0.2	3.2	5	3.4	0.704
	120	29	2	51.4	22.4	4500	5400	1311	1311K	1311	111211	64	111	2	0.23	2.7	4.2	2.8	1.58
	120	43	2	76.1	24	4500	5400	2311	2311K	1611	111611	64	111	2	0.41	1.5	2.4	1.6	2.09
60	110	22	1.5	30.2	15.6	5000	6000	1212	1212K	1212	111212	68	102	1.5	0.19	3.4	5.3	3.6	0.896
	110	28	1.5	47.8	16.8	5000	6000	2212	2212K	1512	111512	68	102	1.5	0.28	2.3	3.5	2.4	1.15
	130	31	2.1	57.2	26.5	4050	5000	1312	1312K	1312	111312	71	119	2	0.23	2.8	4.3	2.9	1.96
	130	46	2.1	87.1	28.5	4050	5000	2312	2312K	1612	111612	71	119	2	0.41	1.6	2.5	1.6	2.58
65	140	33	2.1	63.7	29	3870	4500	1313	1313K	1313	111313	76	129	2	0.23	2.8	4.3	2.9	2.38
70	150	35	2.1	74.1	27.5	3600	4320	1314	1314K	1314	111314	81	139	2	0.22	2.8	4.4	2.9	2.98
75	160	37	2.1	79.3	30	3400	4300	1315	1315K	1315	111315	86	149	2	0.22	2.8	4.4	3	3.55
75	160	55	2.1	124	43	3400	4300	2315	2315K	1615	111615	86	149	2	0.38	1.7	2.6	1.7	4.71
80	170	39	2.1	88.4	33.5	3200	4100	1316	1316	1316	111316	91	159	2	0.22	2.9	4.5	3.1	4.17
85	180	41	3	97.9	38	3100	3600	1317	1317	1317	111317	98	167	2.5	0.22	2.9	4.5	3	4.95
750	920	78	5	276	307	260	340	118/750	118/750K	118/750	11118/750	761	909	4	0.059	10.6	16.4	11.1	116
