/ Single row cylindrical roller bearings

Cylindrical Roller Bearings

1.Product Introduction: Covering multiple series, mainly bearing radial loads, and widely used in industrial applications.
2.Structure Type: The inner ring / outer ring have ribs, with single-row / double-row rollers + cage, and it is open - type / sealed, and the inner ring / outer ring are separable.
3.Size Range: Inner diameter 10 - 1000mm, outer diameter 26 - 2000mm, width 8 - 300mm.
4.Material: Inner ring / outer ring / rollers: GCr15/GCR15SIMN/20Cr2Ni4A, cage: stamped steel / brass.
5.Precision: P0/P6 level, precision version is P5/P4 level.
6.Application Fields: Electric motors, machine tools, reducers, automobiles, construction machinery.
7.Key Inspection Items: Radial clearance, load-bearing capacity, operation stability.

Send Inquiry

Download

Product Description

Data Sheet

High-Performance Cylindrical Roller Bearings for Heavy Machinery – Customized & Ready to Ship

Engineered for extreme loads, high temperatures (up to 150°C), and rapid delivery – precision-built for metallurgical, mining, and port machinery.

Cylindrical Roller Bearings are the backbone of industrial machinery requiring unmatched radial load capacity and durability. At LUOYANG INNO BEARING CO., LTD, we specialize in manufacturing bearings that thrive under punishing conditions—whether it's a steel mill furnace operating at 150°C or a port crane enduring 10,000+ impact cycles. With 30+ years of engineering expertise, our solutions combine precision, speed, and reliability to minimize downtime and maximize productivity.

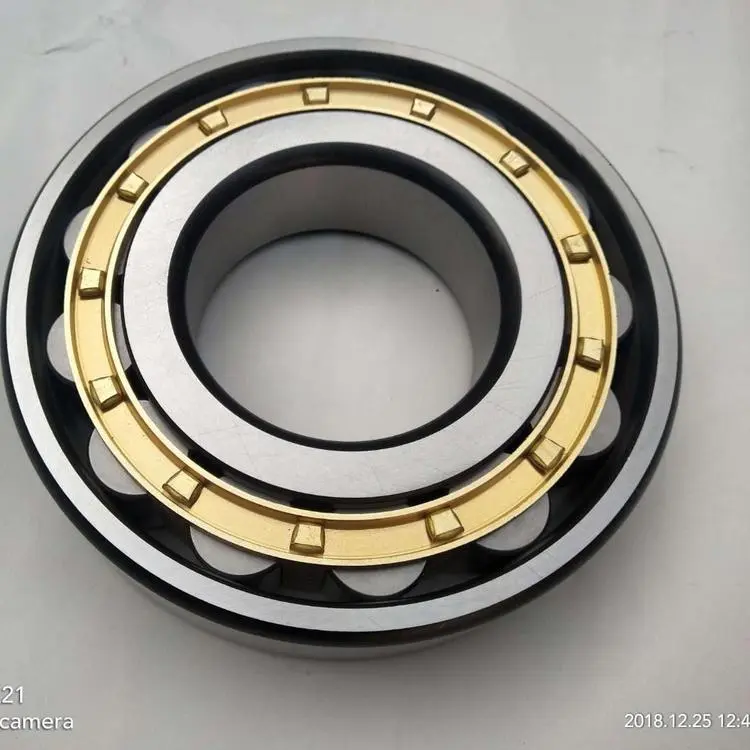

product-750-750

Technical Specifications & Customization

Core Features

✔️ Sizes: Standard (φ50mm–φ5000mm) & non-standard dimensions

✔️ Radial Load Capacity: Up to 300kN static load

✔️ Material: High-purity GCr15 steel with vacuum degassing

✔️ Precision: P4-grade tolerances for minimal vibration

✔️ Temperature Range: -30°C to +150°C (ceramic-coated rollers available)

Tailored Solutions

Bore/OD Modifications: Adjust dimensions within ±0.005mm accuracy.
Cage Materials: Choose stamped steel, brass, or polymer for noise/load needs.
Sealing: Labyrinth seals for dust-heavy environments; contact seals for wet conditions.

Built for Demanding Industries

1. Metallurgy & Steel Production

Our Cylindrical Roller Bearings withstand continuous 150°C heat in rolling mills, with slag-resistant coatings to prevent material buildup.

2. Port Machinery & Mining

Shock-absorbing double-row designs handle sudden 300-ton loads in crane slewing rings. Mining-grade bearings last 2x longer in corrosive crushers.

3. Wind Energy & Heavy Machinery

Corrosion-resistant polymer seals protect offshore turbine bearings from salt spray (1,000+ hours ASTM B117 compliance).

product-1406-300

Why Choose Us?

30+ Years of Precision Engineering

Fast Delivery: 1,000+ standard bearings in stock; 48-hour dispatch.
Custom Speed: Produce φ3000mm+ bearings in 20 days (30% faster than market).
Zero Defects: 3-stage quality checks (raw material inspection, CMM testing, 100% vibration analysis).

Global Support Network

Regional Warehouses: EU, North America, and Asia hubs for faster shipping.
24/7 Monitoring: IoT-enabled bearings provide real-time load/temperature data to predict failures.

FAQ

Q: Can you customize bearings for high-speed medical equipment needing <35dB noise?

A: Yes! We use brass cages and polished rollers to reduce noise by 40% compared to standard designs.

Q: How do your bearings handle dusty mining environments?

A: Triple-labyrinth seals block 99% of contaminants while maintaining smooth rotation.

Q: Do you comply with ISO 15243 for metallurgical applications?

A: Absolutely. Our heat treatment and material certifications meet ISO 15243 fatigue life requirements.

Contact Us

Ready to Solve Your Cylindrical Roller Bearings Challenges

Submit your specifications today:

Get a custom quote within 4 hours.
Download our technical datasheet for load/temperature guidelines.

📧 Contact Us: sales@inno-bearing.com

🔧 Emergency Orders: Available with 24/7 support.

Optimized for performance. Backed by science. Delivered on time.

d 55～60mm
Overall Dimensions					Rated Load		Limiting Rotational Speed		Bearing Designation		Shaft Diameter	Other Dimensions				Mounting Dimensions					Weight
d	D	B	rmin	r1min	Dynamic Load C	Static Load C₀	Grease	Oil	Current Model	Original Model	Shaft Diameter	d1	D1	E	F	damin	Damax	Dbmin	ramax	rbmax	Weight
mm					kN		r/min				mm	mm				mm					kg
55	100	21	1.5	1.1	87	100	6000	7000	NF211E		55	70.9	86.5	90		61.5	91		1.5	1	0.74
	100	21	1.5	1.1	87	100	6000	7000	NU 211 EF1		55		86.5		66	61.5	91		1.5	1	0.73
	120	29	2	2	110	110	4800	5600	N311	2311	55	77		105		64	107		2	2	1.53
	120	29	2	2	110	110	4800	5600	N311M	2311H	55	77		105		64	107		2	2	1.67
	120	29	2	2	110	110	4800	5600	NU 311M	32311H	55		98.5		70.5	64	111		2	2	1.71
	120	29	2	2	110	110	4800	5600	NF311	12311	55	77	99	105		64	111107		2	2	1.54
	120	29	2	2	140	146	4800	5600	NU 311 EPC/P5		55		101		70.5	64	111		2	2	1.44
	120	43	2	2	148	162	4800	5600	NU 2311M	32611H	55		98.5		70.5	64	111		2	2	2.77
	120	43	2	2	148	162	4800	5600	NJ 2311M	42611H	55	76	98.5		70.5	64	111		2	2	2.93
	120	43	2	2	202	235	4800	5600	NJ2311EF1/C4	YB	55	77.5	100		70.5	64	111		2	2	2.45
	140	33	2.1	2.1	139	138	4800	5600	NU 411M	32411H	55		108		77.2	66	129		2	2	3.24
	140	33	2.1	2.1	139	138	4800	5600	NJ 411M	42411H	55	85	108		77.2	66	129		2	2	3.29
60	95	18	1.1	1	48.7	62.3	6700	8000	NU1012M		60		82.2		69.5	65	88.5		1	1	0.49
	110	22	1.5	1.5	73.3	82	5300	6300	N212	2212	60	78.4		97.5		68	100		1.5	1.5	0.87
	110	22	1.5	1.5	98.5	108.6	5300	6300	NJ 212E	42212E	60	77.6	95		72	68	102		1.5	1.5	0.71
	110	22	1.5	1.5	76	87	5300	6300	NU 212M	32212H	60		92.2		73.5	68	102		1.5	1.5	0.96
	110	22	1.5	1.5	76	87	5300	6300	NJ212M	42212H	60	776	92.2		73.5	68	102		1.5	1.5	0.98
	130	31	2.1	2.1	126	130	4300	5000	N312	2312	60	82.6		113		71	116		2	2	1.86
	130	31	2.1	2.1	135	140	4300	5000	N312M	2312H	60	85.4		113		71	116		2	2	2.05
	130	31	2.1	2.1	126	130	4300	5000	NU 312	32312	60		107		77	71	120		2	2	1.86
	130	31	2.1	2.1	126	130	4300	5000	NU 312Q1	32312Q	60		107		77	71	120		2	2	2.08
	130	31	2.1	2.1	135	140	4300	5000	NU 312M	32312H	60		107		77	71	120		2	2	2.08
	130	31	2.1	2.1	126	130	4300	5000	NJ312	42312	60	84.2	107		77	71	120		2	2	1.9
	130	31	2.1	2.1	135	140	4300	5000	NJ312M	42312H	60	84.2	107		77	71	120		2	2	2.12
	130	31	2.1	2.1	155	164	4300	5000	NJ 312EF1		60	84.3	109		77	71	120		2	2	1.95
	130	31	2.1	2.1	155	164	4300	5000	NU 312EPC/P5		60		110		77	71	120		2	2	1.82
	130	46	2.1	2.1	222	262	4300	5000	N2312EF1		60	84.3		115		71	116		2	2	2.9
	130	46	2.1	2.1	222	262	300	5000	NJ2312EF1		60	84.3	108		77	71	120		2	2	2.99
	140	51	2.5	2.5	145	108	4300	5000	N612/C9	2712U	60	86		122		75	125		2	2	3.21
d 60～70mm
Overall Dimensions					Rated Load		Limiting Rotational Speed		Bearing Designation		Shaft Diameter	Other Dimensions				Mounting Dimensions					Weight
d	D	B	rmin	r1min	Dynamic Load C	Static Load C₀	Grease	Oil	Current Model	Original Model	Shaft Diameter	d1	D1	E	F	damin	Damax	Dbmin	ramax	rbmax	Weight
mm					kN		r/min				mm	mm				mm					kg
60	150	35	2.1	2.1	167	168	4300	5000	N412M	2412H	60	91.7		127		71		128	2	2	3.52
	150	35	2.1	2.1	167	168	4300	5000	NJ412	42412	60	91	119	83		71	138		2	2	3.21
	150	35	2.1	2.1	206	220	4300	5000	NJ412EF1		60	91.5	121	83		72	138		2	2	3.14
65	100	18	1.1	1	41	51	6300	7500	NU1013M	32113H	65		86.6		74.5	70	93.5		1	1	0.52
	120	23	1.5	1.5	85	96.1	4800	5600	NJ213M		65	85	102		79.5	74	111		1.5	1.5	1.18
	120	23	1.5	1.5	85	96.1	4800	5600	N 213M		65	85		106		74		108	1.5	1.5	1.15
	120	31	1.5	1.5	144	172	4800	5600	NU2213EM		65		104	78.5		74	111		1.5	1.5	1.63
	120	31	1.5	1.5	144	172	4800	5600	NU2213ENM		65		104	78.5		74	111		15	1.5	1.61
	140	33	2.1	2.1	140	146	4000	4800	N313	2313	65	91		122		77		125	2	2	2.32
	140	33	2.1	2.1	140	146	4000	4800	N313M	2313H	65	92.3		122		77		125	2	2	2.58
	140	33	2.1	2.1	140	146	4000	4800	NU 313M	32313H	65		115		83.5	77	129		2	2	2.51
	140	33	2.1	2.1	140	146	4000	4800	NU 313Q1	32313Q	65		115		83.5	77	129		2	2	2.53
	140	33	2.1	2.1	140	146	4000	4800	NJ313M	42313H	65	91	115		83.5	77	129		2	2	2.57
	140	33	2.1	2.1	177	211	4000	4800	NJ313E		65	90.6	119		82.5	77	129		2	2	2.45
	140	33	2.1	2.1	177	211	4000	4800	NU 313EFI		65		119		82.5	77	128		2	2	2.41
	140	33	2.1	2.1	140	146	4000	4800	N313Q1/P6S0		65	92.3		122		77		125	2	2	2.54
	140	33	2.1	2.1	140	146	4000	4800	NU 313Q1/P63SO		65		115	83.5		77	129		2	2	2.53
	140	33	2.1	2.1	140	146	4000	4800	NJ313Q1/P63S0		65	90.5	115		83.5	77	129		2	2	2.6
	140	48	2.1	2.1	238	276	4000	4800	NU 2313EM	32613EH	65		119	82.5		77	129		2	2	3.71
70	125	24	1.5	1.5	83.5	95	4500	5300	NJ 214M	42214H	70	88.6	105		84.5	78	117		1.5	1.5	1.36
	125	24	1.5	1.5	83.5	95	4500	5300	NU 214M	32214H	70		105		84.5	78	117		1.5	1.5	1.34
	125	24	1.5	1.5	123	143	4500	5300	N214EL	2214EL	70	89.6		114		78		114	1.5	1.5	1.21
	125	24	1.5	1.5	112	126	4500	5300	N214EM		70	89.6			83.5	78		114	1.5	1.5	1.33
	125	24	4	1.5	123	143	4500	5300	NF214/C9YB2		70	89.6	109	114		78		114	3	1.5	1.25
	125	24	1.5	1.5	123	143	4500	5300	NJ 214EF1		70	89.6	109		83.5	78	117		1.5	1.5	1.25
	125	24	1.5	1.5	123	143	4500	5300	NJ214EFI/YB2		70	89.6	109		83.5	78	117		1.5	1.5	1.25
	125	31	1.5	1.5	145	185	4500	5300	NJ2214EM	42514EH	70	89.4	109		83.5	78	117		1.5	1.5	1.93
