/ Single row cylindrical roller bearings

full complement roller bearing

1.Product Introduction: With full complement of rollers without cage, having strong radial load-bearing capacity, and suitable for low-speed and heavy-load applications.
2.Structure Type: The inner ring / outer ring have double ribs, full complement of rollers (without cage), some with spacer blocks, and it is open - type.
3.Size Range: Inner diameter 20 - 500mm, outer diameter 47 - 1000mm, width 14 - 200mm.
4.Material: Inner ring / outer ring / rollers: GCr15/GCR15SIMN/20Cr2Ni4A, cage: stamped steel / brass, spacer blocks: engineering plastics (wear-resistant).
5.Precision: P0/P6 level, P5 level for special requirements.
6.Application Fields: Crane wheels, mining machinery, heavy-duty reducers, port equipment.
7.Key Inspection Items: Radial load-bearing capacity, roller assembly density, dimensional accuracy.

Send Inquiry

Download

Product Description

Data Sheet

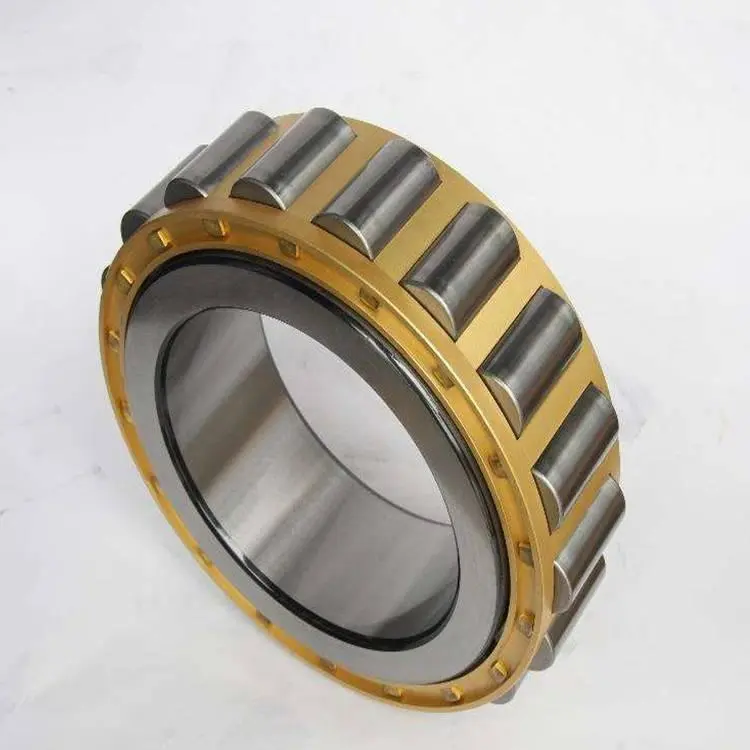

High-Load Full Complement Roller Bearings Engineered for Extreme Industrial Demands

Customizable solutions with φ5000mm+ capacity, built for metallurgy, mining, and construction machinery.

---

product-750-750

What Makes Full Complement Roller Bearings Ideal for Heavy-Duty Applications?

Full complement roller bearings are designed to maximize load capacity by eliminating the cage structure, allowing more rollers to fit within the same space. This makes them perfect for low-speed, high-load scenarios like crane wheels, mining equipment, and port machinery. At LUOYANG INNO BEARING, we engineer these bearings with high-purity steel and precision grinding to handle radial loads up to 1,500 kN while resisting wear in abrasive environments.

---

product-1256-742

Technical Specifications at a Glance

Dimensions: Bore (20–500mm), OD (47–1000mm), Width (14–200mm) | Custom sizes up to φ5000mm.
Load Capacity: Static (Cor) 1,200 kN | Dynamic (Cr) 850 kN (adjustable for custom designs).
Material: GCr15/GCR15SIMN steel rings | Optional 20Cr2Ni4A for enhanced toughness.
Precision: P0/P6 standard | P4-grade available for critical alignment (ISO 492:2014).
Temperature Range: -50°C to 150°C with specialized heat treatments.

---

product-1406-300

Why Choose Our Full Complement Roller Bearings?

✅ 30+ Years of Heavy-Duty Expertise

We combine in-house R&D with modular production to deliver custom bearings 70% faster than industry averages.

✅ Built to Endure Extreme Conditions

From 500°C steel mills to saltwater port cranes, our bearings use advanced heat treatment and corrosion-resistant coatings.

✅ Rigorous Quality Control

Every bearing undergoes 3-stage inspections: material spectrometry, dimensional checks, and 12+ performance tests.

✅ Fast Global Delivery

Choose from 1,000+ stocked models (shipped in 48 hours) or custom orders delivered in 25-30 days.

---

Where Full Complement Roller Bearings Excel

🏗️ Metallurgy & Steel Production

Withstand thermal shocks and 500°C temperatures in rolling mills.

⚓ Port Machinery & Cranes

Saltwater-resistant designs for slewing rings and sheaves.

⛏️ Mining & Material Handling

Reinforced rollers and shock-absorbent spacers for crushers/conveyors.

---

Customization Made Simple

1. Share Requirements: Load, speed, environment, and dimensions.

2. Simulate & Prototype: CAD models validated for your application.

3. Produce & Test: ISO-certified manufacturing with real-time quality tracking.

4. Deploy & Support: On-site installation guidance and IoT-driven maintenance plans.

---

Quality You Can Trust

Materials Tested: Spectrometry ensures 100% alloy compliance.
Precision Grinding: Micron-level tolerances for smooth operation.
Lifespan Validation: 50,000+ hours in simulated abrasive conditions.

---

FAQs: Your Questions, Answered

1. How do your bearings handle 500°C environments?

We use chromium-molybdenum steel and graphite-enriched lubrication to minimize heat degradation.

2. What’s the lead time for a φ3000mm custom bearing?

15–20 days via our modular production system—30% faster than competitors.

3. Can these bearings handle combined axial/radial loads?

Yes! Spacer blocks and optimized roller alignment improve multi-directional load capacity.

4. Are certifications available?

We’re ISO 9001-certified and comply with CE, API, and GOST standards.

5. Do you support legacy equipment retrofits?

Absolutely. Send your old bearing specs, and we’ll reverse-engineer a compatible solution.

---

Need a Bearing That Outperforms?

📧 Email our engineers at sales@inno-bearing.com for a quote within 4 hours!

🔧 Download the Full Technical Datasheet → [Button]

d 55～60mm
Overall Dimensions					Rated Load		Limiting Rotational Speed		Bearing Designation		Shaft Diameter	Other Dimensions				Mounting Dimensions					Weight
d	D	B	rmin	r1min	Dynamic Load C	Static Load C₀	Grease	Oil	Current Model	Original Model	Shaft Diameter	d1	D1	E	F	damin	Damax	Dbmin	ramax	rbmax	Weight
mm					kN		r/min				mm	mm				mm					kg
55	100	21	1.5	1.1	87	100	6000	7000	NF211E		55	70.9	86.5	90		61.5	91		1.5	1	0.74
	100	21	1.5	1.1	87	100	6000	7000	NU 211 EF1		55		86.5		66	61.5	91		1.5	1	0.73
	120	29	2	2	110	110	4800	5600	N311	2311	55	77		105		64	107		2	2	1.53
	120	29	2	2	110	110	4800	5600	N311M	2311H	55	77		105		64	107		2	2	1.67
	120	29	2	2	110	110	4800	5600	NU 311M	32311H	55		98.5		70.5	64	111		2	2	1.71
	120	29	2	2	110	110	4800	5600	NF311	12311	55	77	99	105		64	111107		2	2	1.54
	120	29	2	2	140	146	4800	5600	NU 311 EPC/P5		55		101		70.5	64	111		2	2	1.44
	120	43	2	2	148	162	4800	5600	NU 2311M	32611H	55		98.5		70.5	64	111		2	2	2.77
	120	43	2	2	148	162	4800	5600	NJ 2311M	42611H	55	76	98.5		70.5	64	111		2	2	2.93
	120	43	2	2	202	235	4800	5600	NJ2311EF1/C4	YB	55	77.5	100		70.5	64	111		2	2	2.45
	140	33	2.1	2.1	139	138	4800	5600	NU 411M	32411H	55		108		77.2	66	129		2	2	3.24
	140	33	2.1	2.1	139	138	4800	5600	NJ 411M	42411H	55	85	108		77.2	66	129		2	2	3.29
60	95	18	1.1	1	48.7	62.3	6700	8000	NU1012M		60		82.2		69.5	65	88.5		1	1	0.49
	110	22	1.5	1.5	73.3	82	5300	6300	N212	2212	60	78.4		97.5		68	100		1.5	1.5	0.87
	110	22	1.5	1.5	98.5	108.6	5300	6300	NJ 212E	42212E	60	77.6	95		72	68	102		1.5	1.5	0.71
	110	22	1.5	1.5	76	87	5300	6300	NU 212M	32212H	60		92.2		73.5	68	102		1.5	1.5	0.96
	110	22	1.5	1.5	76	87	5300	6300	NJ212M	42212H	60	776	92.2		73.5	68	102		1.5	1.5	0.98
	130	31	2.1	2.1	126	130	4300	5000	N312	2312	60	82.6		113		71	116		2	2	1.86
	130	31	2.1	2.1	135	140	4300	5000	N312M	2312H	60	85.4		113		71	116		2	2	2.05
	130	31	2.1	2.1	126	130	4300	5000	NU 312	32312	60		107		77	71	120		2	2	1.86
	130	31	2.1	2.1	126	130	4300	5000	NU 312Q1	32312Q	60		107		77	71	120		2	2	2.08
	130	31	2.1	2.1	135	140	4300	5000	NU 312M	32312H	60		107		77	71	120		2	2	2.08
	130	31	2.1	2.1	126	130	4300	5000	NJ312	42312	60	84.2	107		77	71	120		2	2	1.9
	130	31	2.1	2.1	135	140	4300	5000	NJ312M	42312H	60	84.2	107		77	71	120		2	2	2.12
	130	31	2.1	2.1	155	164	4300	5000	NJ 312EF1		60	84.3	109		77	71	120		2	2	1.95
	130	31	2.1	2.1	155	164	4300	5000	NU 312EPC/P5		60		110		77	71	120		2	2	1.82
	130	46	2.1	2.1	222	262	4300	5000	N2312EF1		60	84.3		115		71	116		2	2	2.9
	130	46	2.1	2.1	222	262	300	5000	NJ2312EF1		60	84.3	108		77	71	120		2	2	2.99
	140	51	2.5	2.5	145	108	4300	5000	N612/C9	2712U	60	86		122		75	125		2	2	3.21
d 60～70mm
Overall Dimensions					Rated Load		Limiting Rotational Speed		Bearing Designation		Shaft Diameter	Other Dimensions				Mounting Dimensions					Weight
d	D	B	rmin	r1min	Dynamic Load C	Static Load C₀	Grease	Oil	Current Model	Original Model	Shaft Diameter	d1	D1	E	F	damin	Damax	Dbmin	ramax	rbmax	Weight
mm					kN		r/min				mm	mm				mm					kg
60	150	35	2.1	2.1	167	168	4300	5000	N412M	2412H	60	91.7		127		71		128	2	2	3.52
	150	35	2.1	2.1	167	168	4300	5000	NJ412	42412	60	91	119	83		71	138		2	2	3.21
	150	35	2.1	2.1	206	220	4300	5000	NJ412EF1		60	91.5	121	83		72	138		2	2	3.14
65	100	18	1.1	1	41	51	6300	7500	NU1013M	32113H	65		86.6		74.5	70	93.5		1	1	0.52
	120	23	1.5	1.5	85	96.1	4800	5600	NJ213M		65	85	102		79.5	74	111		1.5	1.5	1.18
	120	23	1.5	1.5	85	96.1	4800	5600	N 213M		65	85		106		74		108	1.5	1.5	1.15
	120	31	1.5	1.5	144	172	4800	5600	NU2213EM		65		104	78.5		74	111		1.5	1.5	1.63
	120	31	1.5	1.5	144	172	4800	5600	NU2213ENM		65		104	78.5		74	111		15	1.5	1.61
	140	33	2.1	2.1	140	146	4000	4800	N313	2313	65	91		122		77		125	2	2	2.32
	140	33	2.1	2.1	140	146	4000	4800	N313M	2313H	65	92.3		122		77		125	2	2	2.58
	140	33	2.1	2.1	140	146	4000	4800	NU 313M	32313H	65		115		83.5	77	129		2	2	2.51
	140	33	2.1	2.1	140	146	4000	4800	NU 313Q1	32313Q	65		115		83.5	77	129		2	2	2.53
	140	33	2.1	2.1	140	146	4000	4800	NJ313M	42313H	65	91	115		83.5	77	129		2	2	2.57
	140	33	2.1	2.1	177	211	4000	4800	NJ313E		65	90.6	119		82.5	77	129		2	2	2.45
	140	33	2.1	2.1	177	211	4000	4800	NU 313EFI		65		119		82.5	77	128		2	2	2.41
	140	33	2.1	2.1	140	146	4000	4800	N313Q1/P6S0		65	92.3		122		77		125	2	2	2.54
	140	33	2.1	2.1	140	146	4000	4800	NU 313Q1/P63SO		65		115	83.5		77	129		2	2	2.53
	140	33	2.1	2.1	140	146	4000	4800	NJ313Q1/P63S0		65	90.5	115		83.5	77	129		2	2	2.6
	140	48	2.1	2.1	238	276	4000	4800	NU 2313EM	32613EH	65		119	82.5		77	129		2	2	3.71
70	125	24	1.5	1.5	83.5	95	4500	5300	NJ 214M	42214H	70	88.6	105		84.5	78	117		1.5	1.5	1.36
	125	24	1.5	1.5	83.5	95	4500	5300	NU 214M	32214H	70		105		84.5	78	117		1.5	1.5	1.34
	125	24	1.5	1.5	123	143	4500	5300	N214EL	2214EL	70	89.6		114		78		114	1.5	1.5	1.21
	125	24	1.5	1.5	112	126	4500	5300	N214EM		70	89.6			83.5	78		114	1.5	1.5	1.33
	125	24	4	1.5	123	143	4500	5300	NF214/C9YB2		70	89.6	109	114		78		114	3	1.5	1.25
	125	24	1.5	1.5	123	143	4500	5300	NJ 214EF1		70	89.6	109		83.5	78	117		1.5	1.5	1.25
	125	24	1.5	1.5	123	143	4500	5300	NJ214EFI/YB2		70	89.6	109		83.5	78	117		1.5	1.5	1.25
	125	31	1.5	1.5	145	185	4500	5300	NJ2214EM	42514EH	70	89.4	109		83.5	78	117		1.5	1.5	1.93
