cross roller slewing bearing

1.Product Introduction: With a crossed roller design, it can bear bidirectional axial loads, radial loads and overturning moments. The slewing accuracy reaches the level of 0.01mm, suitable for precision slewing scenarios.
2.Structure Type: It has an annular structure. The inner and outer rings have double raceways, with crossed cylindrical rollers, equipped with nylon cages to prevent collisions. Some models are equipped with dust-proof seals and reserved with evenly distributed mounting holes.
3.Size Range: Outer ring diameter: 80 - 2000mm, inner ring diameter: 60 - 1850mm, height: 10 - 80mm.
4.Material: Inner ring / outer ring: 50Mn, 42CrMo; rolling elements: GCr15 bearing steel, GCr15SiMn (optional for impact resistance); seals: nitrile rubber, fluororubber (optional for oil and high temperature resistance).
5.Application Fields: Precision machine tools, robot joints, radar antennas, inspection equipment, semiconductor manufacturing equipment.
6.Key Inspection Items: Radial runout, precision of roller arrangement.

Send Inquiry

Download

Product Description

Data Sheet

High-Precision Cross Roller Slewing Bearings for Demanding Industrial Applications

When your equipment requires unmatched rotational accuracy and reliability under extreme conditions, cross roller slewing bearings deliver. At LUOYANG INNO BEARING CO., LTD, we engineer these specialized bearings to handle bidirectional axial loads, radial forces, and overturning moments with precision down to 0.01mm. Perfect for robotics, medical imaging systems, and heavy machinery, our solutions combine 30+ years of manufacturing expertise with cutting-edge material science.

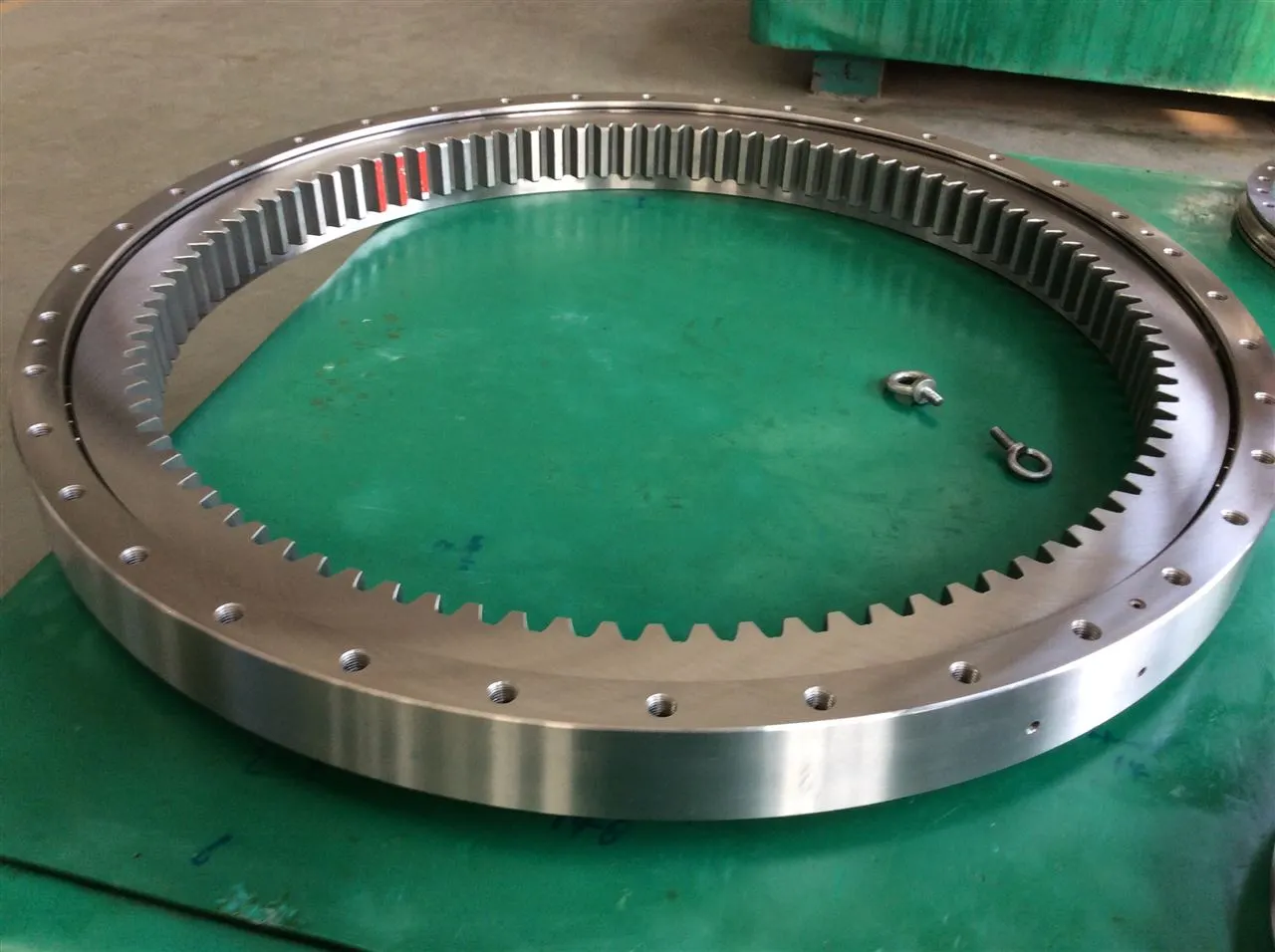

product-1280-956

Why Our Cross Roller Slewing Bearings Outperform?

1. Precision Engineering for Critical Applications

0.01mm Slewing Accuracy: Achieve repeatable positioning in automated assembly lines and semiconductor manufacturing.
Optimized Load Distribution: Crossed cylindrical rollers minimize friction while supporting combined loads up to 300 tons.
High-Temperature Resilience: Operate continuously at 150°C with 42CrMo/50Mn steel components and advanced heat treatment.

2. Custom-Built for Your Industry

Parameter	Specifications
Sizes	Outer Diameter: 80mm - 2000mm (expandable)
Load Capacity	Custom axial/radial/moment configurations
Materials	GCr15 rollers, nitrile/FKM seals optional
Precision Class	ISO P4/P5 (JIS B 1501 Class 0 available)
Mounting Options	Pre-drilled holes, integrated gear teeth

3. Built to Survive Harsh Environments

Corrosion Resistance: 50Mn steel with zinc-nickel coating for chemical/offshore use.
Impact-Resistant Variants: GCr15SiMn rollers for mining/shovel applications.
Low-Noise Design: <55dB operation in medical CT scanners and lab equipment.

product-1406-300

Where Cross Roller Slewing Bearings Excel?

Precision Machine Tools

Ensure micron-level accuracy in CNC rotary tables and grinding machines.

Robotics & Automation

Enable smooth articulation in robotic arms (6-axis models) with minimal backlash.

Energy & Heavy Machinery

Support 250-ton dynamic loads in wind turbine yaw systems and crane slewing rings.

Medical/Semiconductor

Meet cross roller slewing bearing ISO 13485 standards for MRI scanners and wafer handling robots.

5 Reasons Global Clients Choose Us

✅ Vertical Manufacturing

Full control over R&D, heat treatment, and quality checks – no subcontracting.

✅ 70% Faster Prototyping

Get functional samples (φ1000mm) in 10 days with 3D modeling support.

✅ In-Stock Solutions

1,000+ standard models ship within 48 hours globally.

✅ Smart Monitoring

Optional IoT sensors track bearing health, temperature, and vibration in real time.

✅ Retrofit Expertise

Modernize legacy equipment with backward-compatible designs.

product-1256-742

FAQs

Q: Can you replace competitors' bearings without machine modifications?

A: Yes! Share the OEM model or dimensions – we'll match mounting interfaces and load specs.

Q: How do you prevent premature wear in dusty environments?

A: Triple-labyrinth seals + FKM options block contaminants in cement/steel plants.

Q: What certifications do your bearings hold?

A: ISO 9001, CE, and material traceability reports. Medical grades have FDA-compliant lubrication.

Q: Lead time for φ3000mm custom slewing bearings?

A: 25 days with expedited production – 60% faster than industry averages.

Contact Us

Need a Cross Roller Slewing Bearing Precision-Grade Solution?

📧 Email: sales@inno-bearing.com

Upload your technical drawings today for a same-day response!

Cross Cylindrical Roller Slewing Bearing-With Internal Teeth
d695～3780mm
Boundary Dimension			Bearing Type	Related Dimension												Gear Parameter					Weight
d	D	T		D1	d1	d2	H	h	DwP	n1	n2	n3	φ1	φ2	φ3	da	b	m	Z	X	kg≈
695	920	90	2797/695G2	870	735	800	76	4	802	3	30	30	10	18	18	658	65	7	96	0	175
760	1000	95	2797/760G2	956	800	878	82	15	880	4	24	24	M10X1	20	20	718.18	70	8	91	0.35	206
870	1180	115	2797/870G2	1125	920	1023	100	15	1025	2	18	18	M8X1	26	26	828.8	90	8	105	0.3	374
875	1170	95	2797/875G2	1120	930	1018	82	15	1020	4	24	24	M10X1	22	22	830.1	70	8	105	0.35	297
955	1200	90	2797/955G	1160	1000	1088	76	14	1090	4	18	36	M8X1	18	18	908.8	72	8	115	0.3	245
955	1200	90	2797/955G2	1160	1000	1088	76	14	1090	4	18	36	M8X1	18	18	908.8	72	8	115	0.3	245
1010	1200	90	2797/1010G2	1160	1041	1088	76	10	1090	2	20	36	M8X1	M20	22	962	72	10	97	0.6	199
1010	1200	90	2797/1010GK	1160	1041	1088	76	10	1090	2	20	36	M8X1	M20	22	962	72	10	97	0.6	199
-	1216	100	113.28.1094.03	1172	1013	1092	90	10	1094	4	12	12	M10X1	M18	22	920	90	10	94	0	326
1278	1595	120	2797/1278G2	1535	1335	1428	106	14	1430	6	36	36	M10X1	26	26	1221.14	90	12	103	0.35	585
1400	1715	110	2792/1400G2K	1660	1460	1558	95	15	1560	4	40	40	M10X1	M24	26	1330	90	10	135	0	587
1424	1776	160	113.40.1600.03K	1724	1476	1598.5	150	39	1600	5	45	45	M10X1	26	26	1349.6	90	14	97	0.5	924
1665	2002	156	113.45.1830.11	1940	1720	1827	128	28	1830	6	54	54	M10X1	30	30	1610	100	12	135	0.5	912
2100	2335	160	2792/2000G2	2350	2070	2207	140	20	2210	6	48	48	M10X1	M30	33	1913.5	120	14	138	0.3	1607
2032	2335	124	2797/2032	2280	2144	2206	80	20	2208	6	64	64	M10X1	M20	22	2032	100	14	147	0	630
2240	2670	160	2792/2240G	2600	2320	2457	140	20	2460	6	54	54	M12X1.25	M36	35	2154.5	120	16	136	0.3	1798
2300	2800	208	3-940G	2710	2390	2535	180	18	2540	6	48	42	M10X1	M36	38	2162.75	175	20	110	0	2756
2325	2678	162	2797/2325	2610	2391	2498	145	17	2500	8	56	56	M10X1	33	33	2234.4	110	12	188	0	1627
2680	3325	300	2797/2680GY	3242	2754	2996	270	30	2998.48	4	48	48	M16X1.5	33	33	2592	180	16	164	0	6320
2680	3325	300	2797/2680GK	3242	2754	2996	270	30	2998.48	4	32	32	M16X1.5	33	33	2592	180	16	164	0	6641
2680	3325	300	2797/2680G	3242	2754	2996	270	30	2998.48	4	32	32	M16X1.5	33	33	2595	180	16	164	0	6320
-	3100	110	2797/2768	3052	2897	2972	94	16	2974.5	10	60	60	M10	24	24	2768	100	16	175	0	975
3322	3850	200	3-943G2	3720	3420	3568	180	22	3570	12	60	60	Z1/4	45	45	3206.368	158	22	147	0.35	4520
3780	4500	260	2797/3780G2	4400	3900	4055	238	32	4150	12	64	60	M16X1.5	40	40	3668.24	190	22	168	0.35	8346

Cross Cylindrical Roller Slewing Bearing-With External Teeth
D235～2500mm
Boundary Dimension			Bearing Type	Related Dimension												Gear Parameter					Weight
d	D	T		D1	d1	d2	H	h	DwP	n1	n2	n3	φ1	φ2	φ3	da	b	m	Z	X	kg≈
235	380	55	1797/235	358	259	308	45	8	308.5	2	27	24	ZG1/4	13	13	403.5	39	4.5	88	0	24
270	-	86	179254G2	456	300	386	81	5	387	3	9	9	ZG1/4	18	M16	520	80	8	63	0	70
400	-	80	1797/400	575	450	519	70	10	520	-	8	12	-	20	M20	656	80	8	80	0	108
545	867	132.5	LY-8013	805	611	693	12	10.5	695	4	35	40	G1/4	M27	30	920	90	10	90	0	290
574	781	90	111.25.675.03K/P6	753	604	675.5	71	16	677	3	18	18	M10X1	22	22	816	65	6	132	1.092	125
664	890	75	1797/664	847	705	774	65	10	776	4	35	36	M10X1	22	22	929.6	60	8	115	-0.4	133
608	812	75	111.25.710.12K	776	644	708.5	65	10	710	4	24	24	M10X1	18	M16	846	60	6	139	0	118
715	935	100	1797/715	893	753	821.5	84	16	823	4	28	28	M10X1	22	22	979	63	10	94	1.1	173
736	-	56	D1797/736G2	885	798	840	44.5	11.5	844	4	40	36	M10X1	1/2(美制）	1/2(美制）	944	44.5	4	234	0	80.9
678	922	82	111.28.800.12	878	722	798.5	72	10	800	6	30	30	M10X1	22	22	968	65	8	635	0.5	161
885	1056	83	1792/885	1032	925	986	75	12.5	987	-	16	16	-	17.5	M16	1096	62.5	8	135	0	172
885	1056	83	E1792/885	1032	925	986	75	12.5	987	-	16	16	-	17.5	M16	1096	62.5	8	135	0	172
885	1056	83	E1792/885K	1032	925	986	75	12.5	987	3	16	16	M10X1	17.5	M16	1096	62.5	8	135	0	172
885	1150	115	1797/885G	1115	935	1023	100	15	1025	4	16	16	M8X1	18	18	1180	80	5	234	0	330
1080	1475.5	110	112.36.1250.03	1350	1150	1248	100	21	1250	4	28	24	M10X1	M27	27	1475.5	75	10	144	0.86	542
1100	1400	140	1798/1100G2	1352	1160	1260	126	21	1262	4	26	26	M10X1	26	24	1477.28	90	14	104	-0.24	642
1100	1400	145	1798/1100G2K	1352	1160	1260	131	26	1262	4	26	26	M10X1	26	24	1477.28	90	14	104	-0.24	644
1100	1415	115	1797/1100G	1345	1160	1253	100	15	1254	4	18	24	M12X1.25	21	21	1452	84	6	240	0	502
1100	1400	140	1798/1100G2K1/P5	1352	1160	1260	119	14	1262	4	26	26	4	26	M22	1477.28	90	14	104	-0.24	651
1250	1548	148	1797/1250G2	1512	1297	1403	122	20	1405	4	16	16	M10X1	25	25	1608	100	12	132	0	661
1278	1595	120	1797/1278G2	1535	1335	1428	105	15	1430	4	36	36	M10X1	26	26	1655.46	90	12	134	1.15	597
1300	1705	165	1797/1300G	1644	1360	1504	134	31	1506	4	24	24	M10X1	32	32	1783.6	85	14	126	-0.3	1023
1400	1715	110	1792/1400G	1660	1460	1558	95	17	1560	4	42	42	M12X1.25	26	26	1780.8	78	12	147	-0.3	579
1400	1715	110	1792/1400G2	1660	1460	1558	95	17	1560	4	42	42	M12X1.25	26	26	1881.6	78	12	147	-0.3	579
1400	1715	110	1792/1400G2K	1660	1460	1558	95	17	1560	4	42	42	M12X1.25	26	26	1780.8	78	12	147	-0.3	579
1400	1715	110	E1792/1400G2K2	1660	1460	1558	95	17	1560	4	42	24	M12X1.25	没4	M24	1788	78	12	147	0	595
1400	1788	110	D1792/1400G2K1	1660	1460	1558	95	15	1560	4	24	24	M12X1.25	没4	M24	1788	78	12	147	0	585
1460	1800	125	1797/1460G2	1735	1525	1633	110	10	1635	4	24	32	M10X1	26	26	1881.6	95	14	133	-0.3	828
1460	-	125	1797/1460G2K	1735	1525	1633	110	10	1635	4	36	32	M10X1	26	26	1880	115	10	186	0	845
1460	1740	91	111.32.1600.04	1687	1513	1598	81	10	1600	5	36	45	M10X1	26	26	1820	75	14	127	0.5	486
1722	2020	123	1797/1722	1960	1780	1868	110	13	1870	12	45	36	M10X1	30	M27	2074	100	12	170	1	801
1785	2178	220	1797/1785	2110	1851	1977.5	210	20	1980	14	36	48	M10X1	33	33	2264.4	123	18	125	0.5	1941
1825	2178	112	111.40.2000.11	2110	1891	1998	100	12	1993	8	48	48	M10X1	33	33	2272	90	16	139	0.5	900
1914	-	190	1797/1914	2245	1980	2110	120	10	2112.5	14	48	42	M10X1	43	33	2444.4	180	18	133	1	2117
1915	2420	140	1797/1915G2	2320	1980	2113	130	20	1643	8	42	40	M10X1	34	34	2500	90	10	248	0	1643
1916	-	150	1797/1916G2	2245	1980	2113	130	15	2115	3	40	42	M10X1	34	34	2415.6	135	18	133	-0.4	1601
2100	2600	180	1797/2100G2	2540	2200	2368	158	22	2370	8	42	48	M10X1	32	32	2700	130	18	148	0	2395
2100	2600	180	1797/2100G2K	2540	2200	2368	158	22	2370	8	48	48	M10X1	32	32	2700	130	18	148	0	2392
2100	2600	180	1797/2100G2K1	2540	2200	2368	158	22	2370	8	48	48	M10X1	32	32	2700	130	18	148	0	2395
2100	2600	180	1797/2100G2K2	2540	2200	2368	158	22	2370	8	48	48	M10X1	32	32	2700	130	18	148	0	2395
2460	-	220	1797/2460G2	2930	2560	2785	185	20	2746	30	48	48	ZG1/4	34	33	3108	200	14	220	0	4091
2460	-	220	1797/2460G2K	2930	2560	2785	185	20	2746	15	30	30	M12X1.25	34	33	3108	200	14	220	0	4091
2460	-	220	1797/2460G2K1	2930	2560	2785	200	185	2746	30	30	30	ZG1/4	34	33	3108	200	14	220	0	4091
2460	-	220	1797/2460G2K2	2930	2560	2785	185	20	2746	30	30	30	ZG1/4	34	33	3108	200	14	220	0	4091
2460	-	220	1797/2460G2	2930	2560	2785	185	20	2746	30	30	30	ZG1/4	34	33	3108	200	14	220	0	4091
2500	2920	260	1797/2500K	3060	2622	2949	240	60	2820	36	30	36	M12X1.25	40	40	3258	190	18	179	0	5407
2500	2920	270	1797/2500K1	3060	2622	2949	250	60	2820	18	30	36	ZG1/4	40	40	3325	200	25	131	0	5450
2500	2920	260	1797/2500K2	3060	2622	2949	240	60	2820	18	30	36	ZG1/4	40	40	3258	190	18	179	0	5410
2500	-	210	1797/2500K3	2990	2630	2818	200	10	2820	12	30	36	M10X1	37	37	3250	200	25	128	0	4597
2500	2920	260	1797/2500K4	3060	2622	2949	240	60	2820	36	30	36	ZG1/4	40	40	3258	190	18	179	0	5410
2500	-	210	1797/2500K5	2990	2630	2818	200	10	2820	6	36	36	M16X1.5	37	37	3250	200	25	128	0	4632
2500	2920	260	1797/2500K6	3060	2622	2949	240	60	2820	36	36	36	ZG1/4	40	40	3258	190	18	179	0	5407
2500	-	210	1797/2500K7	3060	2622	2818	200	10	2820	12	36	36	ZG1/4	40	40	3258	200	18	179	0	4597
2500	-	210	1797/2500K8	2990	2630	2818	200	10	2820	12	36	36	ZG1/4	37	37	3250	200	25	128	0	4632
2500	2920	260	1797/2500K9	3060	2622	2949	240	60	2820	36	36	36	ZG1/4	40	40	3258	190	18	179	0	5556
2500	2920	260	1797/2500K10	3060	2622	2949	240	60	2820	36	36	36	ZG1/4	40	40	3258	190	18	179	0	5192
2500	2920	260	1797/2500K11	3060	2622	2949	240	60	2820	36	36	36	ZG1/4	40	40	3258	190	18	179	0	5557
2500	-	210	1797/2500G2	2990	2630	2818	200	10	2820	12	36	36	M14X1.5	37	37	3250	200	25	128	0	4597
2500	2920	260	1797/2500G2K1	3060	2622	2949	240	60	2820	36	36	36	ZG1/4	40	40	3258	190	18	179	0	5407
2500	2920	260	1797/2500G2K2	3060	2622	2949	240	60	2820	12	36	36	ZG1/4	40	40	3258	190	18	179	0	5407
2500	2920	260	1797/2500G2K3	3060	2622	2949	240	60	2820	36	36	36	ZG1/4	40	40	3258	190	18	179	0	5407
2500	-	210	1797/2500G2K5	2990	2630	2818	200	10	2820	6	36	36	M16X1.5	37	37	3250	200	25	128	0	4632
2500	-	210	1797/2500G2K6	2990	2630	2818	200	10	2820	12	36	36	M14X1.5	37	37	3250	200	25	128	0	4596
2600	-	200	1797/2600	3050	2700	2868	180	20	2870	12	60	60	ZG1/4	35	35	3232.8	180	20	160	-0.18	3558
2600	-	200	1797/2600G	3050	2700	2868	180	20	2870	6	60	60	M12X1.25	35	35	3232.8	180	20	160	-0.18	3936
2600	-	200	1797/2600G2	3050	2700	2868	180	20	2870	18	60	60	ZG1/4	35	35	3232.8	180	20	160	-0.18	3936
2600	-	200	1797/2600G2K	3050	2700	2868	180	20	2870	4	60	60	14	35	35	3232.8	180	20	160	-0.18	3936
2600	-	200	1797/2600G2K1	3050	2700	2868	180	20	2870	8	60	60	M10X1	35	35	3232.8	180	20	160	-0.18	3558
2600	-	200	1797/2600G2K3	3050	2700	2868	180	20	2870	12	60	60	ZG1/4	35	35	3232.8	180	20	160	-0.18	3558
2600	-	200	1797/2600G2K4	3050	2700	2868	180	20	2870	12	60	60	ZG1/4	35	35	3232.8	180	20	160	-0.18	3936
2600	-	200	1797/2600G2K5	3050	2700	2868	180	20	2870	18	60	60	ZG1/4	35	35	3232.8	180	20	160	-0.18	3936
2600	-	200	1797/2600G2K6	3050	2700	2868	180	20	2870	10	60	60	M10X1	35	35	3232.8	180	20	160	-0.18	3559
2625	2978	112	111.40.2800.03	2910	2691	2797.5	100	12	2800	8	56	56	M10X1	33	33	3078	90	18	168	0.5	1282
2625	2978	112	112.40.2800.12	2910	2691	2797	100	12	2800	8	56	56	M10X1	33	33	3078	90	20	151	0.5	1280
2625	-	150	112.40.2800.12K	2910	2691	2797	100	12	2800	8	56	56	10	33	33	3388	150	22	151	0.5	2780
2625	-	150	112.40.2800.12K1	2910	2691	2797	100	12	2800	8	56	56	10	35	35	3384	150	22	151	0.5	2780
2625	2978	144	112.40.2800.12K2	2910	2691	2797	132	12	2800	8	56	56	M10X1	33	33	3080	120	20	151	0.5	1741
2625	2978	144	112.40.2800.12K3	2910	2691	2797	132	12	2800	8	56	56	M10X1	33	33	3080	120	20	151	0.5	1741
2635	3332	270	1797/2635G	3240	2755	2998	240	45	3000	6	36	36	M12X1.25	42	42	3440	200	20	170	0	5973
2635	3332	270	1797/2635G2	3240	2755	2998	240	30	3000	12	36	36	ZG1/4	42	42	3440	200	20	170	0	5973
2635	3440	270	1797/2635	3240	2755	2998	225	45	3000	12	36	36	ZG1/4	42	42	3440	200	20	170	0	5925
2635	3440	270	1797/2635G2K	3240	2755	2998	225	45	3000	12	36	36	ZG1/4	42	42	3440	200	20	170	0	5925
2635	3440	270	1797/2635G2K1	3240	2755	2998	225	45	3000	9	36	36	ZG1/4	42	42	3440	200	20	170	0	5925
2800	3550	240	1797/2800G2	3390	2920	3152	220	20	3155	8	44	44	14	37	37	3680	200	23	158	0	5050
2922	3376	134	111.50.3150.12	3286	3014	3147.5	122	12	3150	8	56	56	M10X1	45	45	2476	110	20	171	0.5	2177
2922	3376	134	111.50.3150.12K	3286	3014	3147.5	122	12	3150	8	56	56	M10X1	45	45	3476	110	20	171	0.5	2177
2922	3376	134	112.50.3150.12	3286	3014	3147.5	122	12	3150	8	56	56	M14X1.5	45	45	3476	110	22	155	0.5	2177
2922	3376	134	112.80.3200.12K	3286	3014	3147.5	122	12	3150	8	56	56	6	45	45	3476	110	25	155	0.5	2177
2930	3470	210	112.80.3200.12K	3380	3020	3197	190	20	3200	8	48	48	M10X1	37	37	3600	180	25	142	0	4280
2930	3470	210	112.80.3200.12K1	3380	3020	3197	190	20	3200	8	48	48	ZG1/4	37	37	3600	180	25	142	0	4279
2930	3470	210	112.80.3200.03	3380	3020	3197	190	20	3200	8	48	48	6	37	37	3600	180	25	142	0	4279
2930	3470	210	112.80.3200.12K	3380	3020	3197	190	20	3200	8	48	48	6	37	37	3600	180	25	142	0	4279
3230	3970	240	1797/3230	3820	3350	3578	220	20	3580	9	54	52	M12X1.25	37	37	4100	200	25	162	0	7613
3230	3970	240	1797/3230G2	3820	3350	3578	220	20	3580	9	54	52	M12X1.25	37	37	4100	200	25	162	0	7613
3230	3970	240	1797/3230G	3820	3350	3578	220	20	3580	9	54	52	M12X1.25	37	37	4100	200	25	162	0	7612
3230	3970	240	1797/3230GY	3820	3380	3578	220	20	3580	4	36	52	M12X1.25	37	37	4100	200	25	162	0	7612
3230	3970	240	1797/3230G2K	3820	3350	3578	220	20	3580	8	54	52	14	37	37	4100	200	25	162	0	7613
3230	4092	240	1797/3230G2K2	3820	3350	3578	220	20	3580	9	54	52	M12X1.25	37	37	4092	200	25	184	0	7804
3230	4080	240	1797/3230G2K3	3820	3350	3578	220	20	3580	9	54	52	M12X1.25	37	37	4080	200	20	202	0	7302
3230	4100	240	1797/3230G2K4	3820	3350	3578	220	20	3580	8	54	52	ZG1/4	37	37	4100	200	25	162	0	7613
3230	4100	240	1797/3230G2K5	3820	3350	3578	220	20	3580	16	54	52	ZG1/4	37	37	4100	200	25	162	0	7612
3230	4100	240	1797/3230G2K6	3820	3380	3578	220	20	3580	4	36	52	M12X1.25	37	37	4100	220	25	162	0	7673
3230	3970	252	1797/3230G2K7	3820	3350	3578	220	32	3580	16	36	52	ZG1/4	37	37	4100	200	25	162	0	7870
3230	3970	240	1797/3230G2K8	3820	3350	3578	220	20	3580	10	54	52	M12X1.25	37	37	4100	200	25	162	0	7613
3230	3970	240	1797/3230G2K9	3820	3350	3578	220	20	3580	10	54	52	ZG1/4	37	37	4100	200	25	162	0	7663
3230	3970	240	1797/3230G2K10	3820	3350	3578	220	20	3580	8	54	52	M12X1.25	37	37	4100	200	25	162	1	7663
3230	3970	240	1797/3230G2K11	3820	3350	3578	220	20	3580	8	54	52	ZG1/4	37	37	4120	200	25	162	0.5	7663
3230	3970	240	1797/3230G2K13	3820	3350	3578	220	20	3580	13	54	52	14	37	37	4100	200	25	162	0.5	7613
3230	-	240	1797/3230Y3	3820	3380	3578	220	20	3580	13	36	52	ZG1/4	37	37	4100	220	25	162	0	7687
3230	-	240	1797/3230K4	3820	3380	3576	220	20	3580	18	67	52	M14X1.25	37	37	4100	200	25	162	0	7611
3230	4100	240	1797/3230K5	3820	3350	3578	220	20	3580	4	54	52	M12X1.25	37	37	4100	220	25	162	0	7673
3230	4100	240	1797/3230G2Y	3820	3380	3578	220	20	3580	4	36	52	M12X1.25	37	37	4100	200	25	162	0	7613
3230	4100	240	1797/3230G2Y2	3820	3380	3578	220	20	3580	4	36	52	M12X1.25	37	37	4100	200	25	162	0	7613
3230	4100	240	1797/3230G2Y3	3820	3380	3578	220	20	3580	4	36	52	M14X1.5	37	37	4100	220	25	162	0	7686
3230	4100	240	1797/3230G2Y4	3820	3380	3578	220	20	3580	9	36	52	M14X1.5	37	37	4100	220	25	162	0	7686
3230	4100	240	1797/3230GK4	3820	3380	3578	220	20	3580	18	69	52	M12X1.25	37	37	4100	200	25	162	0	7613
3230	4100	240	1797/3230GK5	3820	3350	3578	220	20	3580	4	54	52	M12X1.25	37	37	4100	200	25	162	0	7613
3230	4100	252	1797/3230GK6	3820	3350	3578	232	30	3580	8	54	52	M12X1.25	37	37	4100	200	25	162	0	7803
3230	4100	240	1797/3230G2Y3K	3820	3380	3578	220	20	3580	4	36	52	M12X1.25	37	37	4100	220	25	162	0	7686
3230	4100	240	1797/3230G2Y3K1	3820	3380	3578	220	20	3580	13	36	52	M14X1.5	39	39	4100	220	25	162	0	7673
3322	3776	134	111.52.3550.12	3686	3414	3548	122	12	3550	8	56	56	M10X1	45	45	3880	110	20	191	0.5	2464
3322	3776	134	111.52.3550.12K	3686	3414	3548	122	12	3550	8	56	56	M10X1	45	45	3880	110	20	191	0.5	2464
3322	3776	134	112.50.3550.03	3686	3414	3547.5	122	12	3550	8	56	56	M10X1	45	45	3894	110	22	174	0.5	2465
3322	3776	134	112.50.3550.12	3686	3414	3547	122	12	3550	8	56	56	6	45	45	3889.6	110	22	174	0.5	2465
3322	3776	134	112.50.3550.12K	3686	3414	3547	122	12	3550	8	56	56	M10X1	45	45	3889.6	110	22	174	0.5	2465
3322	3776	150	112.50.3550.12K1	3686	3414	3548	122	12	3550	8	56	56	M10X1	45	45	3894	150	22	174	0.5	2484
3760	4220	240	1797/3760G	4160	3840	3996	50	55	4000	4	48	48	M14X1.5	32	32	4326	135	14	307	0	4396
4014	4490	206	1797/4014	4411	4080	4243	30	30	4245.5	10	40	40	M10X1	30	30	4593	160	22	206	0.5	4812
4250	4940	250	1797/4250G	4840	4350	4598	25	25	4600	9	72	72	M16X1.5	48	48	5082	200	30	168	0	8954
4272	4726	174	112.50.4500.12K	4636	4364	4484	12	12	4487	10	30	30	RP1/4	33	33	4845	150	25	191	0.5	4366
