/ Three-row cylindrical roller slewing bearings

tower crane slewing ring

1.Product Introduction: Slewing rings suitable for tower cranes, with external gear drives, capable of withstanding overturning moments and radial loads during the slewing of tower cranes, and suitable for high-altitude working environments.
2.Structure Type: It has an annular shape. The inner and outer rings are made of 42CrMo steel, with built-in double-row steel balls. The outer ring is machined with external teeth (module 3 - 8), and metal skeleton seals are used to prevent dust, and the mounting holes precisely match the tower crane body.
3.Size Range: Outer ring diameter: 800 - 2500mm, inner ring diameter: 700 - 2350mm, height: 40 - 100mm.
4.Material: Inner ring / outer ring: 50Mn, 42CrMo; rolling elements: GCr15 bearing steel, GCr15SiMn (optional for impact resistance); seals: nitrile rubber, fluororubber (optional for oil and high temperature resistance).
5.Application Fields: QTZ63, QTZ80, QTZ125 series of tower cranes.
6.Key Inspection Items: Tooth surface hardness of external gears, anti-overturning moment, dust-proof performance of seals.

Send Inquiry

Download

Product Description

Data Sheet

High-Performance Tower Crane Slewing Rings for Unmatched Durability & Precision

Custom-Built Slewing Solutions for Tower Cranes – ISO-Certified, Rapid Delivery, 30+ Years of Expertise

When your tower crane slewing ring is engineered to handle extreme loads, precision and reliability are non-negotiable. At LUOYANG INNO BEARING CO., LTD, we specialize in manufacturing heavy-duty slewing rings designed for tower cranes operating in demanding environments like construction sites and port logistics. With over three decades of expertise, our solutions combine high-purity steel, advanced heat treatment, and rigorous testing to deliver unmatched durability, smooth rotational movement, and resistance to wear.

---

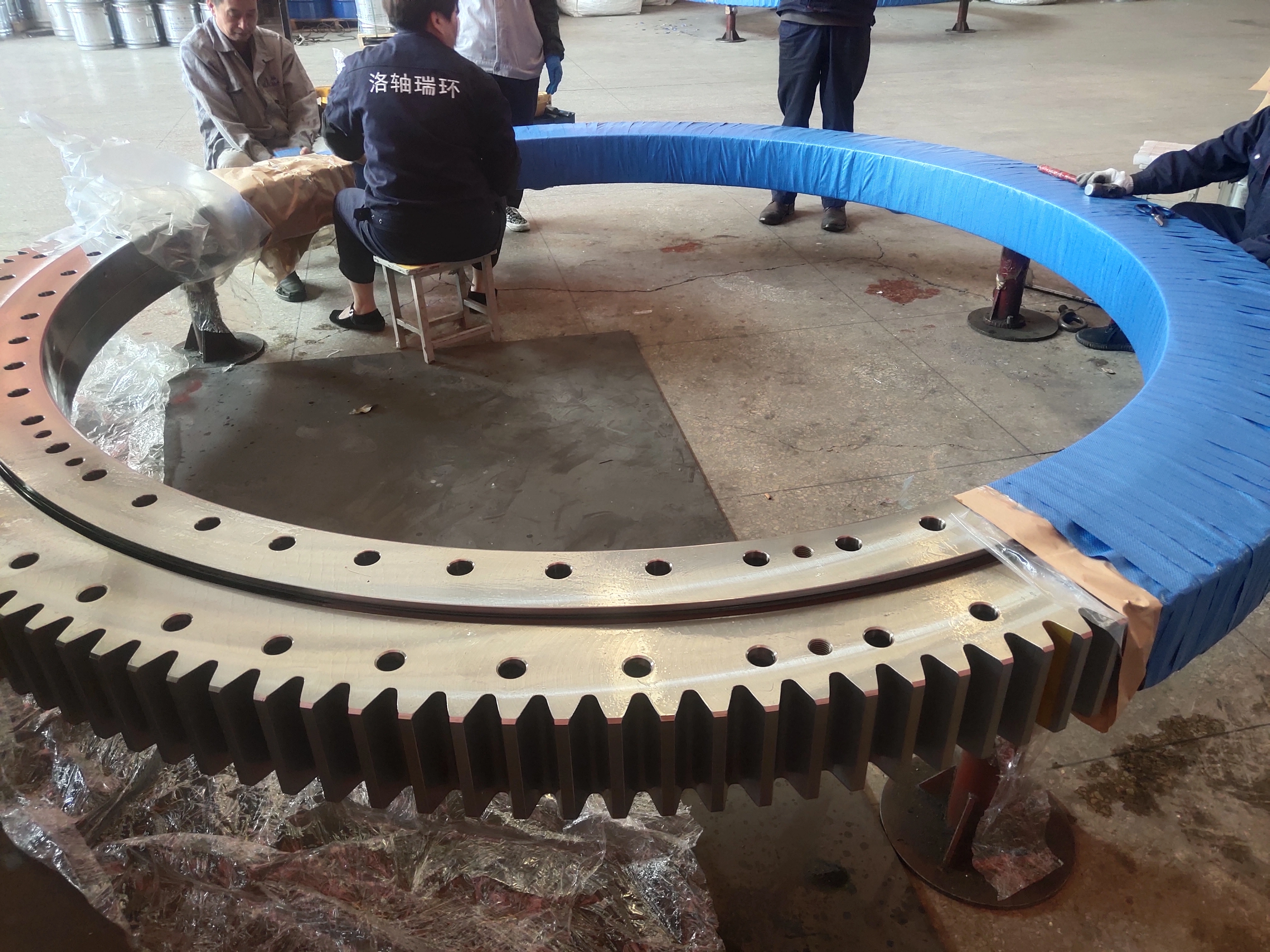

product-4032-3024

Optimized for Tower Crane Performance

Tower crane slewing rings are critical components enabling 360° rotation under heavy axial, radial, and overturning moments. Our products are tailored for:

QTZ Series Tower Cranes: Compatible with QTZ63, QTZ80, and QTZ125 models.
Harsh Environments: Anti-corrosion coatings and fluororubber seals protect against dust, moisture, and temperature extremes.
Long-Term Stability: Double-row steel ball design distributes loads evenly, minimizing deflection even after 20,000+ rotations.

Key Features:

Material: 42CrMo/50Mn steel rings, GCr15 bearing balls.
Precision: ≤0.05mm runout tolerance (P5/P6 grade).
Customization: External gears (module 3–8), bolt patterns, and integrated sensor mounts.

---

product-1256-742

Technical Specifications

Parameter	Details
Outer Diameter	800–2500mm (up to φ5000mm customized)
Load Capacity	Up to 15,000 kN·m overturning moment
Hardness	HRC 55–60 (gear surfaces)
Seals	Nitrile rubber or high-temp fluororubber
Certifications	ISO 9001, CE, EN 15056

---

Built to Last – Manufacturing Excellence

Our slewing rings undergo:

1. Precision Grinding: CNC-machined raceways for smooth rotation.

2. Heat Treatment: Quenching + tempering for uniform hardness and impact resistance.

3. 12+ Performance Tests: Torque rigidity, salt spray, and vibration testing ensure 99.9% qualification rates.

---

Why Partner With Us?

✅ Fast Turnaround: Non-standard rings (φ3000mm) delivered in 25 days.

✅ 1,000+ SKUs: 48-hour shipping for standard models.

✅ Global Support: Regional warehouses in EU, Asia, and Americas.

✅ End-to-End Service: CAD design assistance, IoT-enabled load monitoring, and 24/7 technical support.

---

product-750-1000

FAQ

1. Can you customize gear profiles for unique torque requirements?

Yes! We adjust gear modules, tooth profiles, and mounting flanges to match your crane’s specifications.

2. How do your seals perform in dusty environments?

Our metal skeleton + fluororubber seals block 99% of debris ingress, even in sandy or wet conditions.

3. What certifications do your materials have?

All materials comply with ISO 9001 and CE standards. Anti-corrosion coatings meet REACH regulations.

4. Do you support small replacement orders?

Absolutely. We stock 1,000+ standard units for urgent 48-hour shipments.

5. Can you simulate load distribution before production?

Yes – our engineers provide FEA analysis to optimize your design.

---

Ready to Elevate Your Crane’s Performance?

Whether you’re an OEM, distributor, or service provider, we’re here to deliver slewing rings that exceed expectations.

📧 Contact us today: sales@inno-bearing.com

Three-row Cylindrical Roller Slewing Bearing-without Teeth
d670～2579mm
Boundary Dimension			Bearing Type	Related Dimension												Weight
d	D	T		D1	d1	d2	DwP	H	h	n1	n2	n3	φ1	φ2	φ3	kg≈
670	1000	163	130.25.827.03	948	721	810	834	138	25	6	38	38	M10X1	26	M24	408
736	1064	182	130.32.900.03	1020	780	870	900	142	40	6	36	36	M10X1	22	22	507
770	1100	163	130.25.933.03	1048	822	909	935	138	30	6	36	36	M10X1	M24	26	455
1064	1550	278	5397/1064	1478	1136	1360	1300	278	65	6	38	38	ZG1/4	36	36	1672
1405	1795	220	130.40.1600.03	1743	1457	1558	1600	170	30	12	36	36	ZG1/4	26	26	1341
1605	1995	220	130.40.1800.03	1943	1657	1760	1801	210	50	12	36	36	ZG1/4	26	26	1516
1640	2020	141	5397/1640	1950	1710	1868	1820	1868	29	6	48	48	M10X1	33	33	964
1655	2020	136	5397/1655	1950	1725	1872	1836	123	13	10	48	48	M8	33	33	845
1655	2020	136	5397/1655K	1950	1725	1872	1836	123	13	10	40	40	M10X1	33	33	848
1779	2221	231	130.45.2000.03	2155	1885	1967	2000	219	54	6	36	36	M10X1	33	33	1945
1885	2454	315	5397/1885	2445	1985	2310	2215	251	9	8	60	60	G1/4	52	52	4524
2000	2500	190	5397/2000	2400	2090	2300	2240	176	14	6	42	42	M10X1	45	45	2048
2019	2461	231	130.45.2240.03K	2395	2085	2207	2240	219	54	8	40	40	M10X1	33	33	2146
2135	2555	160	5397/2135	2480	2215	2400	2346	128	12	5	72	72	M10X1	40	40	1488
2135	2555	214	5397/2135K	2480	2215	2400	2346	202	20	5	50	50	M10X1	40	40	2013
2190	2650	154	5397/2190	2560	2280	2446	2400	140	14	6	50	50	ZG1/4	39	39	1600
2190	2650	170	5397/2190K	2560	2280	2454	2406	156	14	6	60	60	ZG1/4	33	39	1742
2279	2721	231	130.45.2500.04	2655	2345	2555	2500	177	54	8	60	60	ZG1/8	33	33	2488
2279	2721	231	130.45.2500.04K	2655	2345	2463	2500	219	54	5	72	72	ZG1/4	33	33	2310
2279	2721	231	130.45.2500.04K1	2655	2345	2555	2500	177	12	8	72	72	ZG1/8	33	33	2486
2279	2721	231	130.45.2500.12	2655	2345	2555	2500	177	54	8	72	72	ZG1/8	39	33	2480
2360	2880	248	5397/2360	2800	2440	2680	2612	196	52	10	72	72	ZG1/4	33	39	3215
2422	2805	158	5397/2422	2740	2488	2600	2625	128	30	8	60	60	ZG1/4	52	33	1561
2450	3087	340	5397/2450	2983	2554	2814	2743	290	50	24	52	52	G1/4	33	52	5774
2460	2805	132	5397/2460	2740	2525	2610	2638	107	25	12	60	60	ZG1/4	51	33	1162
2470	3070	220	130.40.2790.03	2960	2580	2740	2794	211	50	8	48	48	ZG1/4	45	51	3535
2470	2940	200	5397/2470	2860	2550	2758	2706	186	14	12	48	48	ZG1/4	45	45	2485
2470	3020	213	5397/2470K	2920	2570	2798	2787	173	16	8	60	60	ZG1/4	34	45	3122
2508	2900	180	130.36.2700.03	2836	2578	2750	2703	140	10	8	48	48	G1/4	34	34	1810
2508	2900	180	130.36.2700.03K	2836	2578	2750	2703	140	10	8	72	72	G1/4	34	34	1785
2508	2900	180	130.36.2700.04	2836	2578	2750	2703	140	10	8	72	72	G1/4	33	34	1784
2579	3021	231	130.45.2800.03	2955	2645	2866	2800	177	12	8	72	72	ZG1/4	33	33	2750
2579	3021	231	130.45.2800.03k	2955	2645	2767	2800	219	54	8	72	72	M10X1	33	33	2751
2579	3021	231	130.45.2800.04	2955	2645	2866	2800	177	12	8	72	72	ZG1/4	33	33	2750
2579	3021	231	130.45.2800.12	2955	2645	2855	2800	177	54	8	72	72	ZG1/4	33	33	2706
2839	3266	158	5397/2839	3200	2905	3058	3082	149	30	9	68	68	ZG1/4	33	33	2016
2839	3266	195	5397/2839K	3200	2905	3035	3059	184	45	11	68	68	ZG1/4	33	33	2447
2868	3432	270	130.50.3150.12K	3342	2958	3103	3150	258	50	8	72	72	M10X1	45	45	4900
2868	3432	270	130.50.3150.12K1	3342	2958	3103	3150	258	50	5	72	72	ZG1/8	45	45	4900
2868	3432	270	130.50.3150.12K2	3342	2958	3213	3150	205	65	8	72	72	M10X1	45	45	4400
2992	3376	155	130.25.3186.03	3310	3057	3162	3186	145	30	8	60	60	ZG1/4	33	33	2143
3212	3694	210	130.40.3460.03	3616	3290	3427	3460	201	9	9	72	72	ZG1/4	39	39	3385
3268	3832	270	130.50.3550.03	3742	3358	3613	3550	205	65	8	72	72	M10X1	45	45	4700
3268	3832	270	130.50.3550.03K	3742	3558	3613	3550	205	65	8	72	72	M10X1	45	45	4721
3268	3832	270	130.50.3550.03K1	3742	3558	3613	3550	205	65	8	72	72	M10X1	45	45	4721
3268	3832	270	130.50.3550.03K2	3742	3558	3613	3550	205	65	8	72	72	ZG1/4	45	45	4721
3268	3832	270	130.50.3550.04	3742	3558	3613	3550	205	65	8	72	72	M10X1	45	45	4700
3268	3832	270	130.50.3550.12	3742	3558	3613	3550	205	65	8	72	72	M10X1	45	45	4700
3312	3840	220	130.40.3550.03	3745	3390	3602	3550	170	50	10	60	60	M10X1	39	39	4163
3312	3824	220	130.40.3550.03K	3746	3390	3602	3550	170	50	11	66	66	M10X1	39	39	4024
3370	3832	192	5397/3370	3754	3448	3646	3589	180	44	8	96	96	M10X1	39	39	3033
3560	4100	275	5397/3560	4010	3660	3908	3842	260	15	9	72	72	ZG1/4	45	45	5520
3650	4300	355	3-931G	4210	3750	3850	3950	355	0	18	90	90	M16X1.5	48	48	9503
3735	4290	268	5397/3735	4200	3825	3977	4025	258	65	9	60	60	G1/4	45	45	5865
3998	4500	254	130.45.4240.03	4420	4078	4302	4240	197	57	10	80	80	M10X1	45	45	5154
4168	4717	276.225	130.50.4435.03	4625	4260	4215	4435	206.4	18.2	6	72	72	ZG1/4	45	45	6414
4218	4782	270	130.50.4500.04	4692	4308	4454	4500	258	65	8	80	80	M10X1	45	45	6942
4235	4850	268	5397/4235	4700	4325	4560	4500	258	65	11	68	68	ZG1/4	45	45	7178
4680	5333	305	5397/4680	5136	4774	5023	4950	293	58	18	90	90	ZG1/4	45	45	9772
