/ Thrust roller bearings

Cylindrical Roller Thrust Bearings

1.Product Introduction: With cylindrical rollers as the rolling elements, having stronger axial load-bearing capacity than thrust ball bearings, impact-resistant, suitable for medium and heavy axial load scenarios.
2.Structure Type: Shaft washer + housing washer + cylindrical rollers + cage. The rollers are arranged axially, and it has an open structure.
3.Size Range: Inner diameter: 30 - 600mm, outer diameter: 70 - 800mm, height: 20 - 100mm.
4.Material: Shaft washer: GCr15/GCR15SIMN/20Cr2Ni4A, housing washer: GCr15/GCR15SIMN/20Cr2Ni4A, rolling elements (cylindrical rollers): GCr15/GCR15SIMN, cage: steel / brass.
5.Accuracy: Conventional P0/P6 grades, heavy-duty models are of P5 grade.
6.Application Fields: Mining machinery, heavy-duty reducers, port cranes, large motors.
7.Key Inspection Items: Axial load-bearing capacity, parallelism of rollers, flatness of shaft washer and housing washer.

Send Inquiry

Download

Product Description

Data Sheet

High-Performance Cylindrical Roller Thrust Bearings for Extreme Industrial Applications

Customizable Solutions with 500°C Heat Resistance, P4-Level Precision, and 48-Hour Fast Delivery

When your machinery faces relentless axial loads, extreme temperatures, or corrosive environments, Cylindrical Roller Thrust Bearings deliver unmatched durability. At LUOYANG INNO BEARING CO., LTD, we engineer these bearings to outperform standard thrust ball bearings in heavy-load scenarios, offering axial load capacities up to 12,000kN and precision tolerances as tight as P4 grade. With 30+ years of expertise, our bearings are trusted in mining, metallurgy, and medical equipment worldwide.

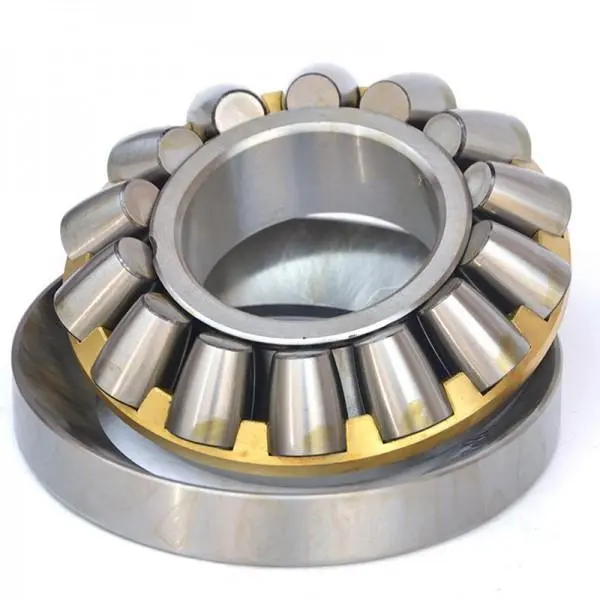

product-600-600

Technical Excellence: Built to Withstand the Toughest Demands

Size Range: Standard (30–600mm ID) to custom (up to φ5000mm OD)
Load Capacity: Static loads up to 12,000kN; dynamic loads optimized for high-speed operations
Precision: P0 to P4 grades (ISO 492), with medical-grade noise levels <35dB
Material: High-purity GCr15 steel, corrosion-resistant coatings (Zn-Ni, Dacromet)
Temperature: Stable performance from -50°C to +150°C
Compliance: ISO 9001, CE, and industry-specific certifications (ASTM A295, ISO 13485)

Industry-Specific Solutions

1. Metallurgy & Mining Equipment

Our HT-Series Cylindrical Roller Thrust Bearings endure 500°C furnace temperatures and shock loads in rolling mills, reducing unplanned downtime by 40%.

2. Port Machinery & Cranes

CoastalGuard-Series bearings feature saltwater-resistant coatings, surviving 1,200+ hours in salt-spray tests—ideal for slewing rings in harbor cranes.

3. Medical Imaging Systems

SilentPrecision-Series bearings use nano-polished rollers and ceramic cages to achieve near-silent operation (<35dB), critical for MRI and surgical robots.

product-1256-742

Custom-Made in 4 Simple Steps

1. Analyze Needs: Share your load, speed, and environmental conditions.

2. Simulate & Prototype: Get CAD models in 72 hours.

3. Produce & Test: Modular manufacturing cuts lead times by 30%.

4. Deliver & Support: Global shipping + lifetime IoT performance monitoring.

Why Choose Us?

✅ 30+ Years in Heavy-Duty Bearing Manufacturing

✅ Full In-House R&D for Non-Standard Designs

✅ 99.9% Defect-Free Rate via Triple QC Checks

✅ 48-Hour Shipping for 1,000+ Standard Types

✅ 24/7 Technical Support with Replacement Guarantee

Fast Global Procurement

Standard Bearings: Shipped in 48 hours (1,000+ types in stock).
Custom Orders: Delivered in 15–20 days, even for φ3000mm+ sizes.
Logistics: Regional warehouses in Asia, EU, and North America.

FAQ

Q: How do your bearings handle 500°C environments?

A: Proprietary heat treatment and M50 steel ensure stable performance.

Q: Can you make bearings larger than φ5000mm?

A: Yes! Our modular production system supports custom dimensions.

Q: What reduces noise in medical-grade bearings?

A: Ceramic rollers and precision grinding achieve <35dB operation.

Q: How do you ensure defect-free quality?

A: Triple-stage QC checks materials, production, and finished products.

Q: Do you offer IoT monitoring?

A: Yes—our smart sensors predict maintenance needs in real time.

Contact Us

Ready to Upgrade Your Equipment with Cylindrical Roller Thrust Bearings?

📩 Request a Custom Quote (Response within 2 hours!)

📥 Download Technical Datasheets

🔧 Consult Our Engineers for Load Calculations

d 110～240mm
Overall Dimensions						Rated Load		Limiting Rotational Speed		Bearing Designation		Minimum Load A	Mounting Dimensions			Weight
d	d1	D	D1	H	rmn	Dynamic Load C	Static Load C。	Grease	Oil	Current Model	Original Model	Minimum Load A	da	Da	ramax	Weight
mm						kN		r/min								kg
110	110.2	200	200	39	2.1	459	2194	990	1300	81722	9722	0.075	192	115	2.1	5.43
	110.2	200	200	26	2	460	2180			40W-87322X3			192	115	2	3.7
	111	230	230	60	3	634	2642	720	960	89422X2	549822	0.3	220	116	3	13.7
	112	145	145	25	1	153	280	800	1100	81122	9122	0.32	141	114	1	1.1
	113	160	160	38	1.1	244	827	630	850	81222	9222	0.067	152	117	1	2.78
120	100	215	215	30	1.1	451	2471	850	1200	81724	559724	0.1	206	125	1.1	5.03
	120.2	155	155	25	I	146	680	950	1400	81124	9124	0.037	151	124	1	1.36
	123	170	170	39	1.1	258	918	600	800	81224	9224	0.074	162	127	1	3.08
	123	210	210	54	2.1	555	1876			89324	9549324		202	127	2.1	9.37
130			170	14	1	113	825	1400	1800	KIW-89126X2	799726	0.049	163	135	1	0.949
	130.2	225	187	30	2.1	446	2180			KOW-8726X2		5.52	181	135	2.1	5.52
	133	190	187	45	1.5	344	1250	670	900	81226	9226	0.13	181	137	1.5	4.59
150			188	21.5	1	246	1174	1000	1300	KIW-81130	209130	0.065	182	156	1	1.54
	150.3	300	300	35	2.1	698	4330	840	1100	87430X2	569730	0.45	288	156	2.1	11.3
	152	190	188	31	1	253	1230	630	850	81130	9130	0.065	185	155	1	2.3
	153	230	227	50	3	553	2370	800	1100	81730	9830	0.35	220	160	3	8.22
	153	215	212	50	1.5	459	1615	480	630	81230	9230	0.28	211	158	1.5	6.45
180			222	24	1.1	325	1665	900	1200	KIW-81136	209136	0.13	213	187	1.1	2.23
	184	280	275	54	3	803	3717	680	900	81836	9836	0.46	264	191	3	13.4
	183	360	358	109	5	1600	6000			89436			344	190	5	58.2
200	203	250	247	37	1.1	278	1326	700	900	81140/YA	9140K	0.18	240	211	1.1	4.82
240	245	440	435	122	6	2360	10770	300	400	89448	9549448	4.6	420	254	6	89.5
240	260	420		95	5	1210	5940	350	600	89352 DH	9809352	4.2	404	270	5	57.1
d 240～1320mm
Overall Dimensions						Rated Load		Limiting Rotational Speed		Bearing Designation		Minimum Load A	Mounting Dimensions			Weight
d	d1	D	D1	H	rmn	Dynamic Load C	Static Load C。	Grease	Oil	Current Model	Original Model	Minimum Load A	da	Da	ramax	Weight
mm						kN		r/min								kg
240	285	445		95	4	1210	5943 12917	360230	480	81757DH	809757	4	428	296	4	60.4
240	300	540		145	6	2770	5943 12917	360230	300	89460 DH	9809460	10	520	312	6	161
420	424	495	500	65	2	900	2600	240	340	81184		2.8	493	433	2	25.6
460	464 461.5	560580	555580	80 102	2.14	10301580	61508580	200	300	81192		5.7	553	479	2	42.6
460	464 461.5	560580	555580	80 102	2.14	10301580	61508580	200	300	LY-8008			558	480	4	71.8
500	505	670	665	135	5	3400	17600	140	190	812/500	92/500	25	661	540	4	153
530	532	710	708	82	5	2280	17840	220	290	872/530	75492/530	23	689	551	5	96.6
560	565	750	745	150	5	3900	20800	120	170	812/560	92/560	35	741	611	4	198
600	602	860	860	125	6	3870	12980	130	180	817/600	5497/600	23	850	620	6	264
610	610	710	710	65	4	1080	7300			817/610M/P4YB5		23.1	698	622	3	51
630	634	750	745	95	3	2180	13700	220	450	811/630M		91.2	740	640	2.5	83.7
670	672	900	900	103	6	3530	26503	160	200	872/670	75492/670	30	895	685	6	198
710	714	850	848	63	4	1440	13657	240	300	871/710	75491/710	27	843	728	4	79
800	800	950	950	90	4	1360	9440	160	200	891/800	90091/800	32	944	810	4	105
850	855	1000	995	67	4	1864	17480	200	260	871/850	75491/850	32	989	862	4	97.1
900	902	1180	1180	125	7.5	5300	50459	100	130	972/900	75492/900	46	1173	908	7.5	386
1060	1065	1400	1400	155	9.5	8950	79388	87	110	872/1060	75492/1060	50	1392	1072	9.5	689
1180	1180	1325		88.5	3	4430	21700	100	150	817/1180DH	97/1180	25	1317	1188	3	173
1180	1185	1400	1395	100	6	4430	48664	110	140	871/1180	75491/1180	35	1389	1190	6	311
