Full Complement Cylindrical Roller Bearing

1.Product Introduction: Similar to the full complement roller bearings, without cage, having strong radial load-bearing capacity, and suitable for low-speed and heavy-load applications.
2.Structure Type: The inner ring / outer ring have double ribs, full complement of rollers, some with spacer blocks, and it is open - type.
3.Size Range: Inner diameter 20 - 500mm, outer diameter 47 - 1000mm, width 14 - 200mm.
4.Material: Inner ring / outer ring / rollers: GCr15/GCR15SIMN/20Cr2Ni4A, cage: stamped steel / brass, spacer blocks: engineering plastics.
5.Precision: P0/P6 level, P5 level for special requirements.
6.Application Fields: Crane wheels, mining machinery, heavy-duty reducers, port equipment.
7.Key Inspection Items: Radial load-bearing capacity, roller assembly density, spacer block wear resistance.

Send Inquiry

Download

Product Description

Data Sheet

Full Complement Cylindrical Roller Bearings: Engineered for Extreme Loads & Durability

Full Complement Cylindrical Roller Bearings are the backbone of heavy machinery where maximum radial load capacity and compact design are non-negotiable. Unlike traditional caged bearings, these cageless variants pack 15–20% more rollers to handle extreme forces in mining, metallurgy, and port equipment. At LUOYANG INNO, we’ve refined these bearings over 30 years to withstand temperatures up to 150°C, heavy shock loads, and relentless operational cycles—ensuring your machinery runs longer with fewer replacements.

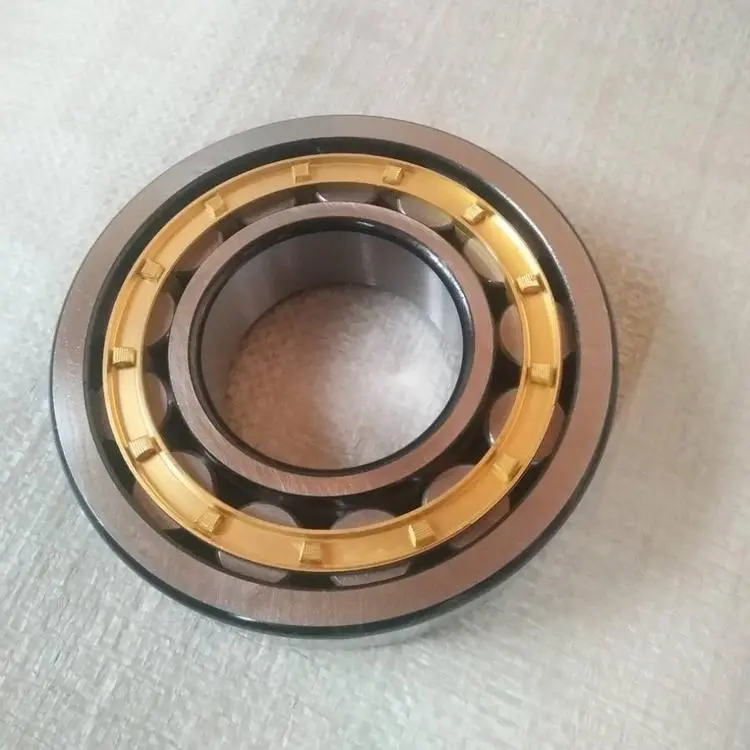

product-750-750

Technical Specifications

Dimensions: ID 20–500mm | OD up to 5000mm | Width 14–200mm
Load Capacity: Static 1,500kN+ | Dynamic 800kN+ (Customizable)
Materials: GCr15/20Cr2Ni4A steel rings & rollers | Optional corrosion-resistant coatings
Precision: P0/P6 standard | P4-grade for medical/energy sectors
Temperature Range: -50°C to +150°C (Expandable with special heat treatment)
Noise Levels: <35dB for medical imaging equipment

Where Full Complement Cylindrical Roller Bearings Excel?

1. Metallurgy & Mining

From blast furnace conveyors to rolling mills, our bearings endure 300kN+ radial loads and 500°C heat without lubrication failure. A steel plant in Germany reported a 40% reduction in downtime after switching to our high-temperature series.

2. Port & Crane Systems

Port crane sheaves using our full-complement bearings handle 2x more shock loads than standard designs. The open structure allows quick debris clearance, ideal for gritty environments.

3. Medical Machinery

P4-grade precision and sub-35dB operation make these bearings fit for MRI scanners and robotic surgery arms where silence is critical.

product-1256-742

Why Choose LUOYANG INNO's Full Complement Bearings?

1. No Compromise on Load Capacity

By eliminating the cage, we maximize roller count—delivering 30% higher radial load ratings than conventional designs.

2. Rapid Customization Without Delays

Need a φ3000mm bearing with tapered bore? Our modular production system delivers non-standard designs in 25-30 days—70% faster than industry averages.

3. Proven in the Toughest Conditions

Every bearing undergoes 3-stage quality checks:

Material purity tests (spectrometer analysis)
Hardness mapping post heat treatment
100% noise/vibration screening

4. Global Compliance, Local Speed

Pre-stocked Full Complement Cylindrical Roller Bearing in Rotterdam, Houston, and Singapore ship within 48 hours. All units meet CE, UL, GOST-R, and ISO 9001 standards.

Tailor Your Bearings to Exact Needs

Size Adjustments: ±5% OD/ID modifications
Surface Treatments: Black oxide, zinc-nickel, or ceramic coatings
Smart Integration: IoT sensors for real-time load/temperature monitoring
Lubrication Options: Pre-greased, oil-jet ready, or maintenance-free designs

Quality Assurance: Built to Outlast

Material Traceability: Mill certificates for every steel batch
Process Control: CNC grinding with ±2μm accuracy
Lifecycle Validation: 50,000+ hours MTBF in cement kiln trials

Fast Global Delivery & Lifetime Support

Standard Orders: 48-hour dispatch from regional hubs
Custom Projects: 25-30 days production with live IoT tracking
Post-Purchase: Free installation guides + 18-month warranty

FAQs

Q1: How do your bearings handle 500°C environments?

Our carburized steel cores and graphite-rich lubricants prevent thermal expansion failures.

Q2: Can you make bearings beyond φ5000mm OD?

Yes—we've delivered φ5500mm units for tunnel boring machines. Share your specs for a feasibility check.

Q3: What's the MOQ for custom designs?

Prototypes start at 1 unit. Bulk orders (50+ units) get volume discounts.

Q4: How do you achieve P4 precision?

Precision grinding (Ra 0.1μm) and 100% laser profilometry ensure micron-level accuracy.

Q5: Do you offer IoT-enabled bearings?

Yes—embedded sensors monitor load, temperature, and vibration for predictive maintenance.

Contact Us

Need a Bearing That Won't Quit Under Pressure—Full Complement Cylindrical Roller Bearing?

Email engineers directly at sales@inno-bearing.com for quotes, technical drawings, or emergency orders.

LUOYANG INNO BEARING CO., LTD—Powering Heavy Industries Since 1993

d 55～60mm
Overall Dimensions					Rated Load		Limiting Rotational Speed		Bearing Designation		Shaft Diameter	Other Dimensions				Mounting Dimensions					Weight
d	D	B	rmin	r1min	Dynamic Load C	Static Load C₀	Grease	Oil	Current Model	Original Model	Shaft Diameter	d1	D1	E	F	damin	Damax	Dbmin	ramax	rbmax	Weight
mm					kN		r/min				mm	mm				mm					kg
55	100	21	1.5	1.1	87	100	6000	7000	NF211E		55	70.9	86.5	90		61.5	91		1.5	1	0.74
	100	21	1.5	1.1	87	100	6000	7000	NU 211 EF1		55		86.5		66	61.5	91		1.5	1	0.73
	120	29	2	2	110	110	4800	5600	N311	2311	55	77		105		64	107		2	2	1.53
	120	29	2	2	110	110	4800	5600	N311M	2311H	55	77		105		64	107		2	2	1.67
	120	29	2	2	110	110	4800	5600	NU 311M	32311H	55		98.5		70.5	64	111		2	2	1.71
	120	29	2	2	110	110	4800	5600	NF311	12311	55	77	99	105		64	111107		2	2	1.54
	120	29	2	2	140	146	4800	5600	NU 311 EPC/P5		55		101		70.5	64	111		2	2	1.44
	120	43	2	2	148	162	4800	5600	NU 2311M	32611H	55		98.5		70.5	64	111		2	2	2.77
	120	43	2	2	148	162	4800	5600	NJ 2311M	42611H	55	76	98.5		70.5	64	111		2	2	2.93
	120	43	2	2	202	235	4800	5600	NJ2311EF1/C4	YB	55	77.5	100		70.5	64	111		2	2	2.45
	140	33	2.1	2.1	139	138	4800	5600	NU 411M	32411H	55		108		77.2	66	129		2	2	3.24
	140	33	2.1	2.1	139	138	4800	5600	NJ 411M	42411H	55	85	108		77.2	66	129		2	2	3.29
60	95	18	1.1	1	48.7	62.3	6700	8000	NU1012M		60		82.2		69.5	65	88.5		1	1	0.49
	110	22	1.5	1.5	73.3	82	5300	6300	N212	2212	60	78.4		97.5		68	100		1.5	1.5	0.87
	110	22	1.5	1.5	98.5	108.6	5300	6300	NJ 212E	42212E	60	77.6	95		72	68	102		1.5	1.5	0.71
	110	22	1.5	1.5	76	87	5300	6300	NU 212M	32212H	60		92.2		73.5	68	102		1.5	1.5	0.96
	110	22	1.5	1.5	76	87	5300	6300	NJ212M	42212H	60	776	92.2		73.5	68	102		1.5	1.5	0.98
	130	31	2.1	2.1	126	130	4300	5000	N312	2312	60	82.6		113		71	116		2	2	1.86
	130	31	2.1	2.1	135	140	4300	5000	N312M	2312H	60	85.4		113		71	116		2	2	2.05
	130	31	2.1	2.1	126	130	4300	5000	NU 312	32312	60		107		77	71	120		2	2	1.86
	130	31	2.1	2.1	126	130	4300	5000	NU 312Q1	32312Q	60		107		77	71	120		2	2	2.08
	130	31	2.1	2.1	135	140	4300	5000	NU 312M	32312H	60		107		77	71	120		2	2	2.08
	130	31	2.1	2.1	126	130	4300	5000	NJ312	42312	60	84.2	107		77	71	120		2	2	1.9
	130	31	2.1	2.1	135	140	4300	5000	NJ312M	42312H	60	84.2	107		77	71	120		2	2	2.12
	130	31	2.1	2.1	155	164	4300	5000	NJ 312EF1		60	84.3	109		77	71	120		2	2	1.95
	130	31	2.1	2.1	155	164	4300	5000	NU 312EPC/P5		60		110		77	71	120		2	2	1.82
	130	46	2.1	2.1	222	262	4300	5000	N2312EF1		60	84.3		115		71	116		2	2	2.9
	130	46	2.1	2.1	222	262	300	5000	NJ2312EF1		60	84.3	108		77	71	120		2	2	2.99
	140	51	2.5	2.5	145	108	4300	5000	N612/C9	2712U	60	86		122		75	125		2	2	3.21
d 60～70mm
Overall Dimensions					Rated Load		Limiting Rotational Speed		Bearing Designation		Shaft Diameter	Other Dimensions				Mounting Dimensions					Weight
d	D	B	rmin	r1min	Dynamic Load C	Static Load C₀	Grease	Oil	Current Model	Original Model	Shaft Diameter	d1	D1	E	F	damin	Damax	Dbmin	ramax	rbmax	Weight
mm					kN		r/min				mm	mm				mm					kg
60	150	35	2.1	2.1	167	168	4300	5000	N412M	2412H	60	91.7		127		71		128	2	2	3.52
	150	35	2.1	2.1	167	168	4300	5000	NJ412	42412	60	91	119	83		71	138		2	2	3.21
	150	35	2.1	2.1	206	220	4300	5000	NJ412EF1		60	91.5	121	83		72	138		2	2	3.14
65	100	18	1.1	1	41	51	6300	7500	NU1013M	32113H	65		86.6		74.5	70	93.5		1	1	0.52
	120	23	1.5	1.5	85	96.1	4800	5600	NJ213M		65	85	102		79.5	74	111		1.5	1.5	1.18
	120	23	1.5	1.5	85	96.1	4800	5600	N 213M		65	85		106		74		108	1.5	1.5	1.15
	120	31	1.5	1.5	144	172	4800	5600	NU2213EM		65		104	78.5		74	111		1.5	1.5	1.63
	120	31	1.5	1.5	144	172	4800	5600	NU2213ENM		65		104	78.5		74	111		15	1.5	1.61
	140	33	2.1	2.1	140	146	4000	4800	N313	2313	65	91		122		77		125	2	2	2.32
	140	33	2.1	2.1	140	146	4000	4800	N313M	2313H	65	92.3		122		77		125	2	2	2.58
	140	33	2.1	2.1	140	146	4000	4800	NU 313M	32313H	65		115		83.5	77	129		2	2	2.51
	140	33	2.1	2.1	140	146	4000	4800	NU 313Q1	32313Q	65		115		83.5	77	129		2	2	2.53
	140	33	2.1	2.1	140	146	4000	4800	NJ313M	42313H	65	91	115		83.5	77	129		2	2	2.57
	140	33	2.1	2.1	177	211	4000	4800	NJ313E		65	90.6	119		82.5	77	129		2	2	2.45
	140	33	2.1	2.1	177	211	4000	4800	NU 313EFI		65		119		82.5	77	128		2	2	2.41
	140	33	2.1	2.1	140	146	4000	4800	N313Q1/P6S0		65	92.3		122		77		125	2	2	2.54
	140	33	2.1	2.1	140	146	4000	4800	NU 313Q1/P63SO		65		115	83.5		77	129		2	2	2.53
	140	33	2.1	2.1	140	146	4000	4800	NJ313Q1/P63S0		65	90.5	115		83.5	77	129		2	2	2.6
	140	48	2.1	2.1	238	276	4000	4800	NU 2313EM	32613EH	65		119	82.5		77	129		2	2	3.71
70	125	24	1.5	1.5	83.5	95	4500	5300	NJ 214M	42214H	70	88.6	105		84.5	78	117		1.5	1.5	1.36
	125	24	1.5	1.5	83.5	95	4500	5300	NU 214M	32214H	70		105		84.5	78	117		1.5	1.5	1.34
	125	24	1.5	1.5	123	143	4500	5300	N214EL	2214EL	70	89.6		114		78		114	1.5	1.5	1.21
	125	24	1.5	1.5	112	126	4500	5300	N214EM		70	89.6			83.5	78		114	1.5	1.5	1.33
	125	24	4	1.5	123	143	4500	5300	NF214/C9YB2		70	89.6	109	114		78		114	3	1.5	1.25
	125	24	1.5	1.5	123	143	4500	5300	NJ 214EF1		70	89.6	109		83.5	78	117		1.5	1.5	1.25
	125	24	1.5	1.5	123	143	4500	5300	NJ214EFI/YB2		70	89.6	109		83.5	78	117		1.5	1.5	1.25
	125	31	1.5	1.5	145	185	4500	5300	NJ2214EM	42514EH	70	89.4	109		83.5	78	117		1.5	1.5	1.93
