Roller Thrust Bearing

1.Product Introduction: Covering tapered and cylindrical roller thrust bearings, with rollers as the rolling elements, having strong axial load-bearing capacity, suitable for multiple load scenarios.
2.Structure Type: Shaft washer + housing washer + rollers (tapered or cylindrical) + cage, open type or with metal dust-proof seals.
3.Size Range: Inner diameter: 20 - 600mm, outer diameter: 50 - 800mm, height: 15 - 100mm.
4.Material: Shaft washer: GCr15/GCR15SIMN/20Cr2Ni4A, housing washer: GCr15/GCR15SIMN/20Cr2Ni4A, rolling elements (rollers): GCr15/GCR15SIMN, cage: stamped steel / brass.
5.Accuracy: Conventional P0/P6 grades, heavy-duty models are of P5 grade.
6.Application Fields: Mining machinery, heavy-duty reducers, axial positioning of port cranes.
7.Key Inspection Items: Parallelism of rollers, flatness of shaft washer and housing washer, axial clearance.

Send Inquiry

Download

Product Description

Data Sheet

Precision Roller Thrust Bearings for Heavy-Duty Applications

Engineered to withstand extreme axial loads and harsh operating conditions, roller thrust bearings from LUOYANG INNO BEARING CO., LTD deliver unmatched performance in metallurgical, port machinery, and medical equipment. With 30+ years of expertise, we specialize in bearings that handle up to 15,000 kN static loads, 150℃ temperatures, and P4-grade precision for mission-critical operations.

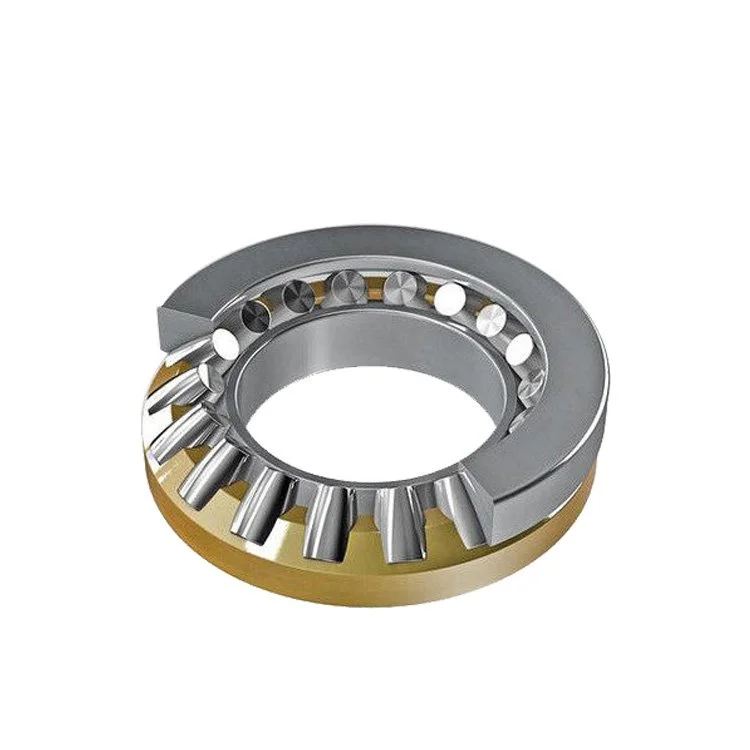

product-750-750

Technical Specifications

Axial Load Capacity: 8,500 kN dynamic / 15,000 kN static
Temperature Range: -30°C to +150°C (material-dependent)
Precision Grades: ISO P0/P6 (standard), P5 for heavy machinery, P4 for medical devices
Noise Levels: <35dB in medical-grade models
Sizes: Standard diameters from φ50mm to φ5000mm

Designed with tapered or cylindrical rollers, our bearings prevent premature failure even under continuous high-stress cycles.

product-1406-300

Customization Options

Need non-standard dimensions or materials? We deliver:

✅ Rapid Prototyping: 7-15 days for technical validation of custom designs

✅ Material Flexibility: High-carbon chromium steel, ceramic hybrids, or 20Cr2Ni4A alloy

✅ Sealing Solutions: Open type or IP69K-rated seals for dust/water resistance

✅ Cage Types: Stamped steel (standard) or brass (high-speed applications)

Example: A φ3000mm port crane bearing with modular cages was delivered in 18 days—40% faster than industry benchmarks.

product-1256-742

Industry-Specific Solutions

🏭 Metallurgy

500℃ High-Temperature Resistance: Solid oil lubrication for continuous casting machines
Material Upgrades: M50 steel or ceramic rollers extend lifespan by 2.8x in rolling mills

🚢 Port Machinery

Impact-Resistant Design: 50kN dynamic load capacity for crane slewing systems
Corrosion Protection: Saltwater-proof coatings increase service life by 3x

🏥 Medical Equipment

P4-Grade Precision: 0.005mm radial runout tolerance for MRI/PET-CT systems
FDA-Compliant Lubricants: Non-toxic, sterilizable grease for surgical robotics

Manufacturing Excellence

Our vertically integrated production ensures every roller thrust bearing exceeds industry standards:

1. Material Forging: Ultra-clean steel billets for optimal wear resistance

2. Heat Treatment: Carburizing & tempering to achieve HRC 60-64 surface hardness

3. Precision Grinding: ≤0.001mm tolerance in raceway parallelism

4. 12-Stage Inspection: 100% tested for axial clearance, noise, and fatigue strength

Result: 99.9% qualification rate and <0.1% defect rate since 2018.

Global Supply Chain

1,000+ Standard SKUs: Shipped within 48 hours from EU/NA/Asia warehouses
Bulk Order Support: MOQ 50 units for custom designs with volume discounts
Lifecycle Services: IoT-enabled condition monitoring + 24/7 technical support

FAQ

1. How do your bearings handle 500℃ in steel mills?

Our high-carbon chromium steel components undergo specialized heat treatment, maintaining structural integrity at extreme temperatures.

2. Can you make φ3200mm bearings for ship loaders?

Yes! Our modular production system delivers non-standard bearings up to φ5000mm in 15-20 days.

3. What ensures low noise in medical bearings?

Precision-ground rollers combined with brass cages reduce vibration, achieving <30dB in MRI systems.

4. How do you accelerate custom orders?

In-house R&D and 70% pre-fabricated components slash lead times to 70% of industry averages.

Contact Us

Request Your Custom Solution

📧 Email specs to sales@inno-bearing.com and get:

Technical feasibility analysis within 8 hours
Commercial quote with logistics options in 24 hours
5-year warranty options for long-term ROI

Upgrade your machinery with roller thrust bearings engineered for your success.

d 25～65mm
Overall Dimensions						Rated Load		Limiting Rotational Speed		Bearing Designation		Minimum Load A	Mounting Dimensions			Weight
d	d1	D	D1	H	rmn	Dynamic Load C	Static Load C。	Grease	Oil	Current Model	Original Model	Minimum Load A	da	Da	ramax	Weight
mm						kN		r/min								kg
25	25.2	40.5	40.5	7	0.3	13.8	66	4000	5500	81705	589705	0.00031	39	26	0.3	0.038
34.925	37	79	78	15.875	1	76.8	316.8	2500	3400	817/34.925	549707	0.0083	75	38	1	0.441
35	35.2	52	52	8	0.6	18.1	95.74	3400	4500	87107	7009107	0.00057	51	36	0.6	0.0625
35	35	52	52	18.5	1						89707		51	36	1	0.173
40	40.2	60	60	13	0.6	38	118	1700	2400	81108	9108	0.0011	56	44	0.6	0.146
	40.2	68	68	19	1	83	255	1400	1900	81208	9208	0.0051	63	45	1	0.32
	40.2	90	90	16	1.1	92.9	400	2400	3100	87407X2	559708	0.0073	85	44	1.1	0.497
	42	78	78	22	1	91.1	285	2000	4000	89308M		0.009	76	44	1	0.526
45	45.2	110	110	19	1.1	150	619.5	1900	2600	81709	559709	0.0077	106	47	1.1	0.94
45	45	80	70	60	1						459709		68	46	1	1.21
50	50.2	78	78	22	1	91.5	300	1200	1700	81210	9210	0.0073	75	53	1	0.43
50	50	110	95	82	1.1						495710		91	54	1.1	3.59
55	55.2	78	78	16	0.6	69.5	285	1400	1900	81111	9111	0.0066	77	56	0.6	0.27
	57	90	90	25	1	116	365	950	1400	81211	9211	0.011	85	59	1	0.708
	57	105	105	30	1.1	145	564	1200	1600	89311	954311	0.019	102	59	1.1	1.38
60	62	85	85	17	1	80	300	1300	1800	81112	9112	0.0073	82	62	1	0.338
	62	95	95	26	1	117	332	1810	2400	81212	9212		91	64	1	0.792
	62	110	110	30	1.1	171	591	1400	2800	89312M		0.023	107	65	1	1.37
	62	130	130	32	1.5	206	998	1000	1400	87412	7559412	0.06	124	65	1.5	2.45
	60	100	130	12	1	91.4	372			KOW-87212X3			124	63	1	0.404
	60	120	105	82	1.1						459712		102	64	1.1	4.41
	60.2	138	138	22	2					81712	559712		134	65	2	1.18
65	65.2	90	90	18	1	83	320	1200	1700	81113	9113	0.0083	87	67	1	0.381
d 65～100mm
Overall Dimensions						Rated Load		Limiting Rotational Speed		Bearing Designation		Minimum Load A	Mounting Dimensions			Weight
d	d1	D	D1	H	rmn	Dynamic Load C	Static Load C。	Grease	Oil	Current Model	Original Model	Minimum Load A	da	Da	ramax	Weight
mm						kN		r/min								kg
65	67	100	100	27		140	490	1200	1700	81213	9213	0.019	96	69	1	0.874
	70	165	165	25						81714	559714		157	72	2	2.6
	65	90	90	26.4	1.5						89713		87	67	1.5	0.63
70	72	95	95	18	1	81.9	254	1200	1700	81114	9214	0.0096	92	72	1	0.403
72	72	108	102	13	1.5					81814	559814		99	74	1.5
75	77	100	100	19	1	75.5	266	1100	1600	81115	9115	0.0068	97	78	1	0.455
	77	110	110	27		125	440	850	1200	81215	9215	0.015	106	79	1	0.979
	77	135	135	36	15	218	920	1200	2400	89315M		0.042	132	83	1.5	2.51
80	80.2	150	150	26	1.5	238	1056	1400	1900	81716	9716	0.032	143	82	1.5	2.06
80	80.2	150	150	26	2.5					81716L	9716L		143			2.06
	82	105	105	19	l	76.5	134	1000	1500	81116	9116	0.0073	102	83	1	0.4
	82	115	115	28	1	160	270	850	1200	81216	9216	0.03	112	84	1	0.9
	90.2	135	134	62	0.6	311	1256	1000	1500	82716	59716	0.044	130	92	0.6	3.28
85	85.2	110	110	19	l	76.5	310	1000	1500	81117	9117	0.0077	108	87	1	0.52
	88	125	125	31	I	153	550	800	1100	81217	9217	0.024	119	90	1	1.44
	88	150	150	39	1.5	286	1200	900	1200	89317	9549317	0.054	144	91	1.5	3.35
	88	150	150	39	1.5	257	1100	1100	2200	89317M		0.054	147	93	1.5	3.29
90	90.2	120	120	22	I	104	415	900	1300	81118	9118	0.014	117	93	1	0.797
90	90.2	160	160	26	1.5	250	1210	1300	1800	81718	9718	0.039	154	96	1.5	2.25
100			135	11	1	77.6	530	1800	2500	KIW-87120	7789120	0.028	131	104		0.517
	100.2	190	190	39	1.5	451	2090	1000	1400	81720	9720	0.06	182	105		5.11
	100.2	135	135	25	1	152	544	850	1200	81120	9220	0.028	131	104	1	1.19
	103	150	150	38	1.1	214	830	800	1100	81220	9220	0.054	142	107	l	2.58
	103	170	170	42	1.5	327	1520	760	1100	89320	9549320	0.074	163	108	1.5	4.49
