1313 bearing

1.Product Introduction: The double-row model of self-aligning ball bearings (1313), with an inner diameter of 65mm and a double-row steel ball design. Its radial load-bearing capacity is 1.8 times that of the single-row ones, suitable for medium load scenarios.
2.Structure Type: Inner ring (with cylindrical hole) + outer ring (with spherical raceway) + double-row steel balls + engineering plastic cage. An isolation ring is set in the middle to prevent collisions.
3.Size Range: Inner diameter: 65mm, outer diameter: 140mm, width: 33mm.
4.Material: Inner ring / outer ring: GCr15, rolling elements (steel balls): GCr15, cage: engineering plastic, isolation ring: GCr15.
5.Accuracy: Conventional P0 grade, precision models are of P6 grade.
6.Application Fields: Medium-sized water pumps (5.5kW), fans (10kW), textile equipment (carding machines), reducers (medium load).
7.Key Inspection Items: Consistency of double-row steel ball clearance (deviation ≤ 0.003mm), inner diameter accuracy (65 ± 0.008mm), running stability.

Send Inquiry

Download

Product Description

DATA SHEET

1313 Bearing for Heavy-Duty Industrial Applications – Built to Withstand Extreme Loads & Temperatures

30+ Years of Precision Manufacturing | Custom Sizes up to φ5000mm | 48-Hour Standard Delivery

When your machinery operates under extreme conditions, the 1313 bearing delivers unmatched reliability. Designed for heavy-load scenarios like mining crushers and steel mill rollers, this double-row self-aligning ball bearing combines robust construction with precision engineering. With an inner diameter of 65mm and a dynamic load capacity 1.8x higher than single-row models, it’s built to reduce downtime and extend equipment lifespan.

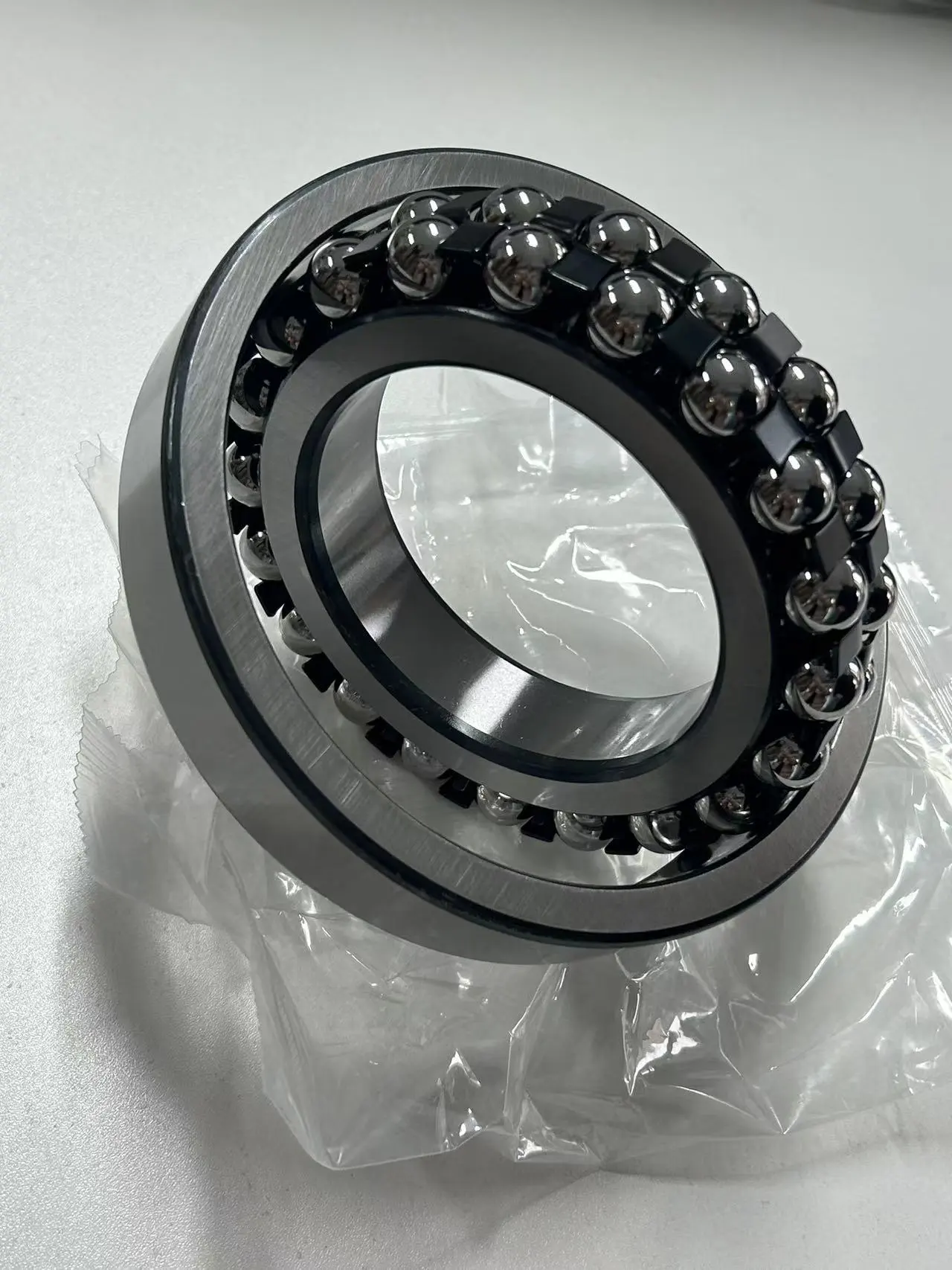

product-1-1

Core Specifications & Applications

Key Parameters

Dimensions: ID 65mm | OD 140mm | Width 33mm (Customizable up to φ5000mm)
Load Capacity: Radial load rating optimized for medium to heavy industrial use.
Material: High-purity GCr15 steel for inner/outer rings and rolling elements.
Precision: Standard P0 grade | P6 precision available for high-speed applications.
Operating Temperature: -30℃ to 150℃.

Ideal For

Metallurgy: Rolling mills, continuous casting machines.
Mining: Crushers, conveyor systems.
Industrial Machinery: Medium-sized water pumps (5.5kW), textile equipment, reducers.

Why Choose Us?

Heavy-Duty Performance

The double-row steel ball design ensures even load distribution, reducing stress on individual components. An engineering plastic cage and isolation ring prevent collisions between rows, enhancing stability in high-vibration environments.

Precision Manufacturing

Every 1313 bearing undergoes 12+ quality checks, including clearance consistency (≤0.003mm deviation) and inner diameter accuracy (65 ±0.008mm). Our P6-grade models meet ISO standards for high-speed, low-noise operations.

Faster Customization

Need a non-standard size or material? Our modular production process cuts lead times by 30%. Urgent orders for large bearings (e.g., φ3000mm) ship in 15–20 days.

Ready to Ship

1,000+ standard products are in stock, with 48-hour delivery available. Regional warehouses in Asia, Europe, and North America minimize transit delays.

Trusted by Heavy Industries Worldwide

Rigorous Testing for Peace of Mind

Material Integrity: Vacuum-degassed steel improves wear/heat resistance.
Performance Validation: Fatigue, vibration, and heat cycling tests ensure a 99.9% defect-free rate.
Certifications: ISO 9001, CE, ROHS compliant.

Technical Support When You Need It

24/7 Expert Guidance: From bearing selection to retrofitting plans.
IoT Integration: Monitor bearing health in real-time with smart condition-tracking systems.
Lifecycle Management: Maintenance tips, replacement schedules, and recycling solutions.

FAQ

Q: How does the product handle high temperatures in steel mills?

A: The GCr15 steel construction and advanced heat treatment allow continuous operation up to 500℃ without deformation.

Q: Can I get a custom-sized product for a mining crusher?

A: Yes! We specialize in bearings up to φ5000mm. Contact us for a quote—most custom orders ship within 3 weeks.

Q: What makes your product more durable than competitors?

A: Our triple quality control (raw materials, production, final inspection) and precision grinding ensure 20% longer service life.

Q: Do you offer emergency delivery?

A: Standard products ship in 48 hours. For urgent custom orders, our Fast-Track service prioritizes production and logistics.

product-1-1

Contact Us

Ready to Upgrade Your Equipment with a 1313 bearing?

Request a Custom Quote

Get technical specs and pricing within 4 hours.

Download Engineering Guide

Learn how to maximize bearing performance in extreme conditions.

Chat with Experts

Have questions? Our engineers are here to help!

📧 Contact Us: sales@inno-bearing.com

d 17~45mm
Overall Dimensions				Rated Load		Limiting Rotational Speed		Bearing Designation				Mounting Dimensions			Calculation Coefficient				Weight
Overall Dimensions				Rated Load		Limiting Rotational Speed		Cylindrical Bore	Tapered Bore	Cylindrical Bore	Tapered Bore	damin	Damax	ramax	e	Y1	Y2	Y0
d	D	B	rmin	Dynamic Load C	Static Load C。	Grease	Oil	Current Model		Original Model		damin	Damax	ramax	e	Y1	Y2	Y0
mm				kN		r/min						mm							kg
17	40	12	0.6	8.67	2.45	13500	16200	1203	1203K	1203	111203	21	36	0.6	0.31	2	3.1	2.2	0.076
20	47	14	1	12.4	3.2	13500	16200	1204	1204K	1204	111204	25	42	1	0.27	2.3	3.6	2.4	0.119
20	52	21	1.1	18.2	4.75	10000	13000	2304	2304K	1604	111604	26.5	45.5	1	0.51	1.2	1.9	1.3	0.219
25	52	15	1	14	4.05	11700	14400	1205	1205K	1205	111205	30	47	1	0.27	2.3	3.6	2.4	0.144
	52	18	1	16.5	4.28	11700	14400	2205	2205K	1505	111505	30	47	1	0.41	1.5	2.3	1.5	0.187
	62	17	1.1	18.6	6	8500	11000	1305	1305K	1305	111305	31.5	55.5	1	0.27	2.3	3.5	2.4	0.258
	62	24	1.1	26.5	6.95	8500	11000	2305	2305K	1605	111605	31.5	55.5	1	0.47	1.3	2.1	1.4	0.354
30	62	16	1	15.6	5.85	9000	11700	1206	1206K	1206	111206	35	57	1	0	3	4	2.7	0.227
	62	16	1	15.6	5.85	9000	11701	1206TNI				35	57	1	0.24	2.6	4	2.7	0.224
	62	20	1	23.3	5.68	9500	11700	2206	2206K	1506	111506	35	57	1	0.39	1.6	2.4	1.7	0.26
	72	19	1.1	22.1	7.8	8100	10000	1306	1306K	1306	111306	36.5	65.5	1	0.34	2.4	3.8	2.6	0.39
35	72	17	1.1	18.6	6.7	8100	10000	1207	1207K	1207	11207	42	66	1	0	3	4	2.9	0.347
	72	23	1.1	30.1	8.6	8100	10000	2207	2207K	1507	111507	41.5	655	1	0.38	1.7	2.6	1.8	0.441
	80	21	1.5	26	9.8	6800	8100	1307	1307K	1307	111307	43	72	1.5	0.25	2.6	4	2.7	0.538
	80	31	1.5	39.7	12.9	6800	8100	2307	2307K	1607	111607	43	72	1.5	0.46	1.4	2.1	1.4	0.675
40	80	18	1.1	19.5	8.65	6800	8100	1208	1208K	1208	11208	47	74	1	0	3	4	3	0.419
	80	23	1.1	31.2	9.8	6800	8100	2208	2208K	1508	111508	46.5	73.5	1	0.34	1.9	2.9	2	0.53
	90	23	1.5	33.1	12.2	6000	7200	1308	1308K	1308	111308	48	82	1.5	0.24	2.6	4	2.7	0.711
	90	33	1.5	52.9	15.6	6000	7200	2308	2308K	1608	111608	48	82	1.5	0.43	1.5	2.3	1.5	0.93
45	85	19	1.1	22.4	9.65	6000	7200	1209	1209K	1209	111209	51.5	78.5	1	0.21	2.9	4.6	3.1	0.493
	85	23	1.1	31.9	10.8	6000	7200	2209	2209K	1509	11509	51.5	78.5	1	0.31	2.1	3.2	2.2	0.553
	100	25	1.5	38.2	16	5700	6800	1309	1309K	1309	11309	53	92	1.5	0.25	2.5	3.9	2.6	0.951
	100	36	1.5	62.4	19.6	5700	6800	2309	2309K	1609	111609	53	92	1.5	0.42	1.5	2.3	1.6	1.25
d 50～750mm
Overall Dimensions				Rated Load		Limiting Rotational Speed		Bearing Designation				Mounting Dimensions			Calculation Coefficient				Weight
Overall Dimensions				Rated Load		Limiting Rotational Speed		Cylindrical Bore	Tapered Bore	Cylindrical Bore	Tapered Bore	damin	Damax	ramax	e	Y1	Y2	Y0
d	D	B	rmin	Dynamic Load C	Static Load C。	Grease	Oil	Current Model		Original Model		damin	Damax	ramax	e	Y1	Y2	Y0
mm				kN		r/min						mm							kg
50	90	20	1.1	26	10.8	6300	7700	1210	1210K	1210	111240	56.5	83.5	1	0.2	3.1	4.8	3.3	0.545
	90	23	1.1	33.1	11.2	6300	7700	2210	2210K	1510	111510	56.5	83.5	1	0.29	2.2	3.4	2.3	0.678
	110	27	2	43.6	17.6	5000	6000	1310	1310K	1310	111310	59	101	2	0.24	2.7	4.1	2.8	121
	110	40	2	63.7	20	5000	6000	2310	2310K	1610	111610	59	101	2	0.43	1.5	2.3	1.6	1.66
55	100	21	1.5	27	13.4	5000	6000	1211	1211K	1211	111211	63	92	1.5	0.2	3.2	5	3.4	0.704
	120	29	2	51.4	22.4	4500	5400	1311	1311K	1311	111211	64	111	2	0.23	2.7	4.2	2.8	1.58
	120	43	2	76.1	24	4500	5400	2311	2311K	1611	111611	64	111	2	0.41	1.5	2.4	1.6	2.09
60	110	22	1.5	30.2	15.6	5000	6000	1212	1212K	1212	111212	68	102	1.5	0.19	3.4	5.3	3.6	0.896
	110	28	1.5	47.8	16.8	5000	6000	2212	2212K	1512	111512	68	102	1.5	0.28	2.3	3.5	2.4	1.15
	130	31	2.1	57.2	26.5	4050	5000	1312	1312K	1312	111312	71	119	2	0.23	2.8	4.3	2.9	1.96
	130	46	2.1	87.1	28.5	4050	5000	2312	2312K	1612	111612	71	119	2	0.41	1.6	2.5	1.6	2.58
65	140	33	2.1	63.7	29	3870	4500	1313	1313K	1313	111313	76	129	2	0.23	2.8	4.3	2.9	2.38
70	150	35	2.1	74.1	27.5	3600	4320	1314	1314K	1314	111314	81	139	2	0.22	2.8	4.4	2.9	2.98
75	160	37	2.1	79.3	30	3400	4300	1315	1315K	1315	111315	86	149	2	0.22	2.8	4.4	3	3.55
75	160	55	2.1	124	43	3400	4300	2315	2315K	1615	111615	86	149	2	0.38	1.7	2.6	1.7	4.71
80	170	39	2.1	88.4	33.5	3200	4100	1316	1316	1316	111316	91	159	2	0.22	2.9	4.5	3.1	4.17
85	180	41	3	97.9	38	3100	3600	1317	1317	1317	111317	98	167	2.5	0.22	2.9	4.5	3	4.95
750	920	78	5	276	307	260	340	118/750	118/750K	118/750	11118/750	761	909	4	0.059	10.6	16.4	11.1	116
