/ Single row angular contact ball bearings

Precision Angular Contact Ball Bearings

1.Product Introduction: The raceways are processed by ultra-precision grinding, with radial runout ≤ 0.002mm, suitable for high-speed and high-precision transmission, and are mostly used in the core spindles of high-end equipment.
2.Structure Type: Inner ring / outer ring (ultra-precision ground angular contact raceway, Ra ≤ 0.02μm) + precision steel balls + aerospace aluminum alloy or brass cage, and some are equipped with positioning steps.
3.Size Range: Inner diameter: 20 - 300mm, outer diameter: 47 - 500mm, width: 14 - 100mm.
4.Material: Inner ring / outer ring: GCr15 (ultra-precision forged), rolling elements (steel balls): GCr15 (ultra-precision ground), cage: aerospace aluminum alloy (for high-speed) / brass (for precision).
5.Accuracy: Conventional P0 grade, precision models are of P6/P5/P4 grades.
6.Application Fields: Spindles of CNC lathes, machining centers, aerospace equipment, precision testing instruments, semiconductor manufacturing equipment.
7.Key Inspection Items: Radial runout (≤ 0.002mm), running noise (≤ 40dB), accuracy of contact angle, surface roughness of the raceway.

Send Inquiry

Download

Product Description

Precision Angular Contact Ball Bearings Built for Demanding Industries

When your machinery faces extreme heat, heavy shock loads, or non-stop operation, Precision Angular Contact Ball Bearings deliver unmatched stability. Designed for metallurgical, medical, and automation sectors, our bearings combine ISO-certified precision with industry-leading durability.

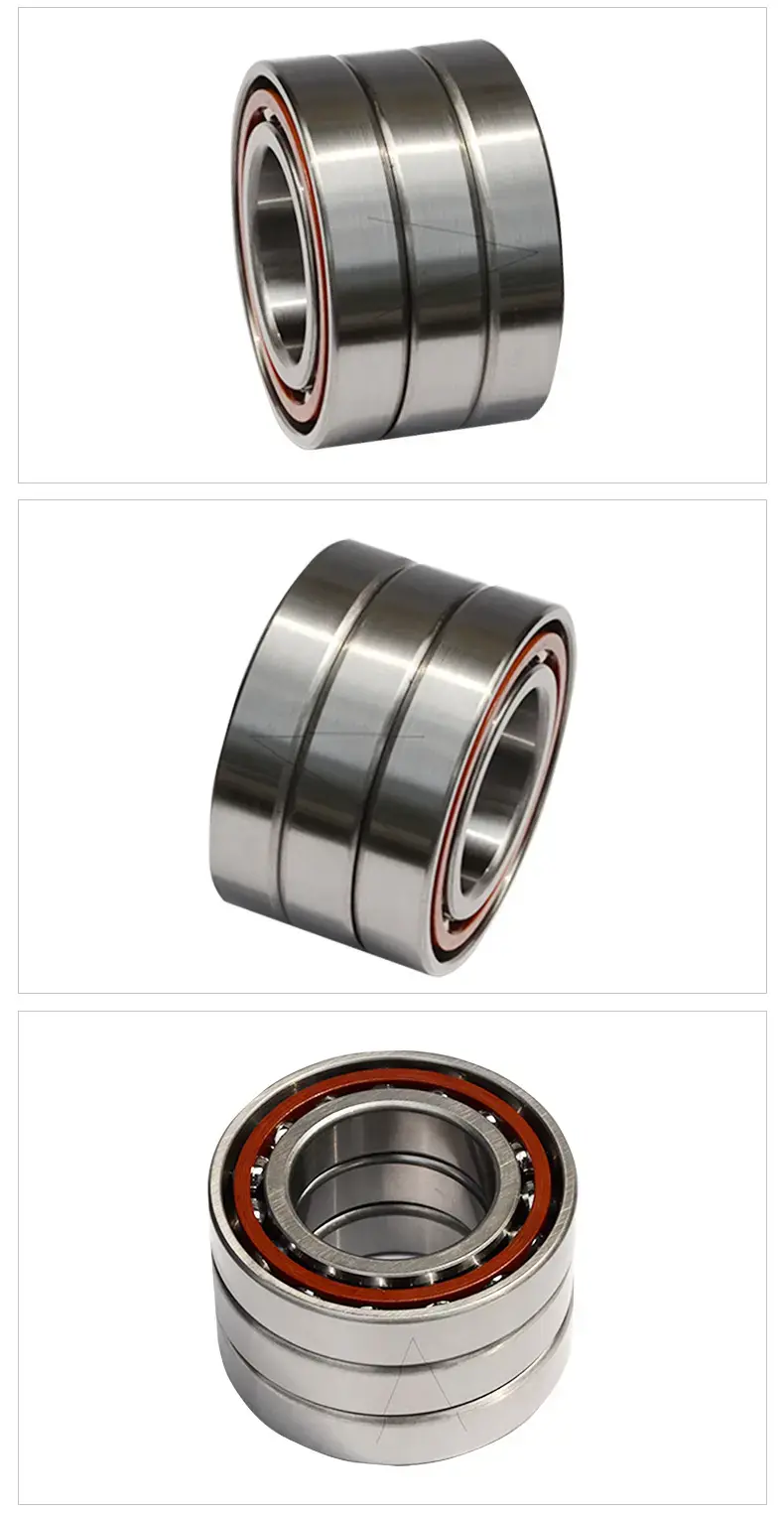

product-1-1

Key Advantages

500°C Operational Stability: Specialized heat treatment prevents deformation
<0.001mm Radial Runout: Ultra-precision grinding for P4/P2-grade accuracy
50,000+ Hour Lifespan: Even in abrasive/dusty environments

Technical Specifications

Parameter	Standard Series	High-Precision Models
Inner Diameter	20mm - 300mm	30mm - 250mm
Temperature Range	-30°C to +300°C	-60°C to +500°C*
Dynamic Load (Cr)	180kN	250kN
Material	GCr15 Steel	High-Purity Chromium Steel
Noise Level	≤45dB	≤35dB (Medical Grade)

*Optional ceramic hybrid variants available for 700°C+ applications

Where Our Precision Angular Contact Ball Bearings Excel?

Rolling Mill Gearboxes

Impact-resistant design handles 24/7 operation
250kN dynamic load rating withstands metal slab processing

Medical Imaging Equipment

P4-grade precision ensures <0.002mm runout
Corrosion-resistant coatings for sterilization compatibility

Robotic Assembly Lines

Low-friction design enables 15,000 RPM operation
Pre-lubricated for maintenance-free service

Why Engineers Trust Our Solutions?

30+ Years of Metallurgical Expertise

We've refined Precision Angular Contact Ball Bearings designs through 500+ custom projects for continuous casting systems and smelting conveyors.

Rapid Customization Workflow

1. Submit CAD files → 2. Prototype in 7 days → 3. Bulk production in 15-20 days

(Example: φ3000mm custom bearing delivered in 18 days for a German steel plant)

Proactive Maintenance Support

IoT-enabled sensors track:

Real-time temperature spikes
Vibration patterns predicting failure
Lubrication degradation rates

Quality Assurance: No Compromises

3-Stage Verification Process

Material Testing: Spectrographic analysis of steel purity

Performance Validation: 500-hour continuous load testing

Final Inspection: 12+ parameters checked, including:

Contact angle accuracy (±0.5°)
Raceway roughness (Ra ≤0.02μm)

99.9% qualification rate across 50,000+ annual shipments

product-1-1

Global Supply Chain Network

✅ 1,000+ Standard Models in Stock

48-hour delivery to EU/NA/ASEAN hubs

✅ Bulk Order Capability

50,000 units/month production capacity

✅ Custom Project Support

Dedicated engineers from design to installation

FAQ

Q: How do your bearings maintain precision at 500°C?

A: Our proprietary heat treatment process stabilizes microstructure, while aerospace-grade cages prevent thermal expansion mismatch.

Q: Can you make bearings over 3000mm OD?

A: Yes! We recently delivered φ3200mm custom products for a Chinese rolling mill in 22 days.

Q: What certifications do you hold?

A: ISO 9001, IATF 16949, API 613, and EN 10204-3.1 material compliance.

product-1-1

Contact Us

Ready to Upgrade Your Equipment with Precision Angular Contact Ball Bearings?

📞 Live Engineering Support: Chat Now (GMT+8 9AM-6PM)

📧 Get Custom Quote: Email [sales@inno-bearing.com] with:

Bearing dimensions
Operating conditions
Required certifications

[Request Instant Quote Button]

LUOYANG INNO BEARING CO., LTD

Where Precision Meets Industrial Endurance
