/ Single row roller slewing bearings

Roller Slewing Bearing

1.Product Introduction: Slewing bearings with rollers as the core load-bearing components, having strong load-bearing capacity and impact resistance, suitable for large equipment under heavy loads and harsh working conditions.
2.Structure Type: It has a thick-wall annular integrated structure. The inner and outer rings have double raceways, with built-in single-row or multi-row cylindrical or tapered rollers, steel cages, heavy-duty dust-proof seals, and the mounting holes are suitable for high-strength bolts.
3.Size Range: Outer ring diameter: 500 - 3000mm, inner ring diameter: 450 - 2850mm, height: 25 - 100mm.
4.Material: Inner ring /outer ring: 50Mn, 42CrMo; rolling elements: GCr15 bearing steel, GCr15SiMn (optional for impact resistance); seals: nitrile，fluororubber (optional for oil and high temperature resistance).
5.Application Fields: Port cranes, metallurgical equipment, large wind power main units, heavy-duty mining machinery.
6.Key Inspection Items: Roller assembly clearance, anti-overturning moment performance, dust-proof performance of seals.

Send Inquiry

Download

Product Description

Data Sheet

Roller Slewing Bearings Built for Extreme Performance: 30+ Years of Heavy-Duty Expertise

When your equipment operates under crushing loads, scorching temperatures, or abrasive dust, Roller Slewing Bearings aren't just components—they're mission-critical lifelines. At LUOYANG INNO BEARING, we engineer bearings that outlast industry standards, combining 30+ years of metallurgical expertise with full-spectrum R&D to solve your toughest load-bearing challenges.

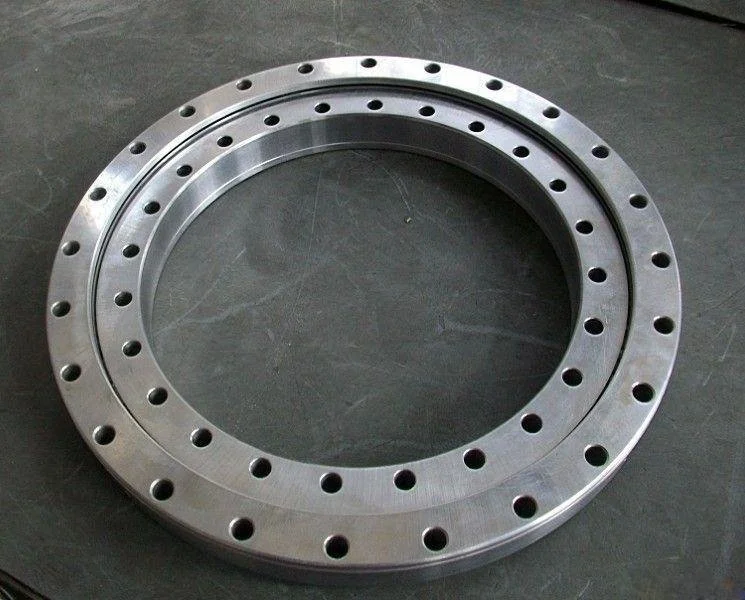

product-745-600

Why Choose Us?

Key Specifications for Demanding Environments:

Size Range: Standard diameters up to φ5000mm; fully customizable designs
Load Capacity: Axial loads up to 8,000 kN, radial loads to 5,000 kN
Temperature Resilience: -30℃ to 150℃ with multi-stage heat treatment
Precision: ISO 492 P4-grade tolerance (±0.01mm), <35dB noise
Lifespan: 15+ years under heavy cyclic loads (validated by 12+ lab tests)

Built to Endure Your Industry‘s Toughest Conditions:

Metallurgy: Withstand 150℃+ in rolling mills & smelting turrets
Mining: Resist 150% shock loads in crushers & excavators
Port Machinery: IP67 sealing for saltwater/dust immunity

Custom Solutions for Unique Challenges

Don't let legacy equipment or non-standard designs stall your projects. Our Roller Slewing Bearings modular production system slashes lead times:

φ3000mm custom bearings delivered in 30 days (vs. 40+ days industry standard)
Reverse-engineer obsolete bearings via on-site measurement
Optimize raceway geometry for uneven load distributions

product-1406-300

Where Our Roller Slewing Bearings Excel?

Metallurgy & Steelmaking

150℃ Stability: Retain IT6-grade precision for 10,000+ hours
Impact Resistance: 100,000+ shock cycles at 150% rated load

Mining & Material Handling

Abrasion Defense: ≤0.005mm/year wear in silica-dense environments
Corrosion Protection: 1,000-hour salt spray certified coatings

Port & Offshore Machinery

IP67 Seals: Block water ingress in tidal zones
Low-Noise Design: <35dB for urban port compliance

6 Reasons Engineers Trust Us

1. 30+ Years in Heavy Loads: Full control over R&D, forging, and hardening.

2. Zero Compromise Quality: 99.9% defect-free rate via 3-stage inspections.

3. Global Stock, Fast Track: 48-hour shipping for 1,000+ standard models.

4. Material Science Mastery: 50Mn/42CrMo steel with 2X wear resistance.

5. Lifespan Optimization: IoT-enabled predictive maintenance guidance.

6. Certified Compliance: ISO 9001, CE, API 6A, GOST TR CU.

product-1256-742

FAQ

Q: How do your bearings handle in steel plants?

A: Our 42CrMo alloy undergoes vacuum carburizing, retaining 58-62 HRC hardness at extreme temps.

Q: Can you make φ5000mm+ bearings for legacy crushers?

A: Yes—we've delivered φ5200mm bearings via modular production in 25 days.

Q: What's included in your 3-stage QC process?

A: Raw material spectrometry, in-process raceway tolerance checks, and final load/endurance testing.

Contact Us

Let's Solve Your Bearing Challenges

Whether you're retrofitting aging equipment or designing next-gen machinery, our Roller Slewing Bearings deliver unmatched durability.

📩 Contact Our Engineers Today

Email: sales@inno-bearing.com

Four-point Contact Ball Slewing Bearing-with Internal Teeth
D235～1440mm
Boundary Dimension			Bearing Type	Related Dimension												Gear Parameter					Weight
d	D	T		D1	d1	d2	H	h	DwP	n1	n2	n3	φ1	φ2	φ3	da	b	m	Z	X
mm				mm																	kg≈
235	380	54	013,20,310.12	358	259	309	44	10	210	1	12	12	M10X1	M12	M12	216	39	4	56	0	25.6
一一	456	57.5	2787/327	490	375	413	46	11.5	413.5	4	12	8	M10X1	M12	18	327	45.5	5	67	0	30
450	654.8	92	278790G2	626	478	545.8	90	2	547.5	2	8	8	M10X1	M8	M16	440	40	4	112	0	117
458	662	80	014,30,560.12	626	494	558.5	70	10	560	4	20	20	M10X1	18	18	426.3	60	6	72	0.5	94
512	741	80	D2787/512	705	550	619	66	14	627	4	14	24	M10X1	24	M12	470	55	5	96	0	99.6
一一	748	56	2787/546G2	720	605	642	56	10	644	4	18	12	M10X1	M10	18	547	46	6	93	0	51.1
601.5	735.8	52	D2787/575	712.5	625	663	45	7	668	2	18	18	M10X1	1/2	13.5	575	37	5	116	0.5	46.9
608	812	80	013,30,710.12	776	644	704	70	10	710	4	24	24	M10X1	18	18	570	60	6	86	0.5	120
一一	896	68	013,25,800.11	858	742	800	58	10	800	2	20	20	M10X1	M16	17	664	58	8	84	0.5	111
678	922	100	013,40,800.12	878	722	798.5	90	10	800	6	30	30	M10X1	22	22	632	80	8	80	0.5	256
720	900	70	LY-Q035	860	750	808	50		812	6	36	36	M10X1	M10	11	690.54	50	5	140	0	109
720	900	70	LY-Q035K1	860	750	808	50	10	810	6	34	36	M10X1	M10	M10	690.54	50	5	140	0	108
781	1022	105	013.30.900.03K/P5	978	825	899	90	10	900	6	30	30	M10X1	18	18	744.32	80	8	94	0.5	248
794	1008	78	013,25,900.12	964	836	900	68	10	900	2	20	20	M10X1	22	22	744	58	8	94	0.5	181
一一	1200	90	2782/922G2	1160	1015	1086	80	10	1087.5	4	12	12	M10X1	M8	22	922	80	10	94	0	251
875	1170	95	013.32.1020.11	1120	930	1020	80	15	1020	4	24	24	M10X1	22	22	830.1	70	8	105	0.35	294
975	1250	150	2787/975	1210	1015	1102	133	17	1100	6	30	29	7	M20	22	914.4	120	12	78	0	519
一一	1198	59	2787/985.6	1170	1055	1092.5	45.5	10.5	1094	4	24	16	M10X1	14	18	985.6	42.5	8	125	0	81.7
988	1242	105	013.30.1120.03K/P5	1198	1042	1119	90	10	1120	6	36	361	M10X1	18	18	960.25	80	8	121	0.5	298
998	1242	100	013.40.1120.12	1198	1042	1118	90	10	1120	6	36	36	M10X1	M20	22	944	80	18	95	0.5	309
1010	1175	90	D2787/1010	1144	1034	1087	72	18	1089	6	36	36	M10X1	16.5	16.5	968	60	8	123	0	147
一一	1200	56	LY-Q036	1170	1044	1088	46	10	1090	4	24	16	M10X1	10.5	17	990	46	5	200	0	114
1000	1270	100	2782/1000GK	1220	1050	1133	85	15	1135	2	2	24	M10X1	17/M12	17/M12	972.6	70	6	164	0	322
1020	1250	64	2787/1020G2	1210	1060	1133	54	10	1135	3	30	30	M10X1	17	13.5	991	27	5	200	0	176
1090	1400	120	013.40.1250.11	1350	1150	1250	105	15	1250	4	36	36	M10X1	22	22	1037	90	10	105	0.35	495
1110	1390	110	013.45.1250.03K/P5	1337	1163	1248	100	10	1250	5	40	40	16	M24	26	1048.8	90	12	88	0.5	404
一一	1382	85	013.35.1257.12	1332	1182	1257	75	10	1257	4	40	40	M10X1	24	24	1068	75	12	90	0.5	290
1140	1480	126	2787/1140	1400	1200	1298	113	13	1300	10	40	59	M10X1	26	M24	1092	100	10	110	0.5	634
1130	1323	99	2787/1083.7	1274	1162	1199	77	8	1201	2	32	32	M10X1	M20	36	1083.7	90	10	110	0	241
1180	1500	130	D2787/1180K	1430	1220	1315	110	20	1325	4	24	24	M10X1	M24	27	1110.5	110	6	187	0	673
1180	1500	130	D2787/1180	1430	1220	1315	110	20	1325	4	24	24	M10X1	M24	27	1121.3	110	10	114	0	636
一一	1640	115	2787/1190	1570	1300	1432	100	15	1435		48	48		M24	26	1190	100	10	119	0.75	704
1210	1530	122	2787/1210G2	1480	1260	1368	108	12	1370	4	40	39	ZG1/4	26	26	1164	80	10	118	0	540
1260	1544	102	013.40.1400.11	1486	1314	1402	90	12	1402	4	36	36	M10X1	26	26	1188	80	12	100	0.5	447
1260	1540	110	013.45.1400.12K	1487	1313	1398	100	10	1400	6	48	48	M10X1	M24	26	1192.8	90	12	100	0.5	490
1260	1540	110	013.35.1400.03/P5	1487	1313	1390	100	10	1400	4	40	40	10	26	M24	1194	100	6	200	0.5	513
1278	1595	120	013.40.1435.11	1535	1335	1436.5	105	15	1435	6	36	26	M10X1	26	26	1221.15	90	12	103	0.35	574
1284	1630	140	013.60.1465.03	1578	1350	1463	130	10	1465	4	36	22	M10X1	M27	29	1218.6	100	14	88	0.5	782
1300	1535	64	E2787/1300	1480	1350	1413	59	15	1415	6	36	36	M10X1	18	18	1270	49	5	256	0	188
1378	1695	165	2787/1278	1636	1434	1534	125	25	1535	8	40	40	M10X1	M27	30	1278	140	18	72	0.5	949
1400	1715	110	2787/1400K1	1660	1460	1558	95	15	1600	2	24	24	M10X1	23	23	1364.5	77	6	230	-0.35	545
1400	1715	110	2787/1400GK	1660	1460	1558	95	15	1560	2	24	24	M12	M20	M20	1364.5	77	6	230	-0.35	545


Four-point Contact Ball Slewing Bearing-with Internal Teeth
d1400～2845mm
Boundary Dimension			Bearing Type	Related Dimension												Gear Parameter					Weight
d	D	T		D1	d1	d2	H	h	DwP	n1	n2	n3	φ1	φ2	φ3	da	b	m	Z	X	kg≈
1400	1715	110	2787/1400GK1	1660	1460	1558	95	15	1560	2	24	24	M10X1	23	23	1364.5	77	6	230	-0.35	545
1420	1740	157	014.30.1600.11K	1687	1513	1598	157	47	1600	2	45	45	NPT1/4	M24	26	1344.711	90	8	170	0	852
1440	1780	100	2787/1440	1730	1494	1618	90	10	1620	4	48	48	M12X1.25	M20	22	1400	50	8	177	0	554
1440	1780	100	2787/1440G	1730	1494	1618	90	10	1620	4	48	48	M12X1.25	M20	22	1400	50	8	177	0	554
1440	1780	104	2768/1440G	1730	1494	1613	87	17	1620	6	48	48	M12X1.25	M20	22	1400	52	8	177	0	555
1525	1875	140	2787/1525G2	1815	1585	1698	123	17	1700	4	42	42	M12X1.25	29	29	1452.33	110	16	92	0.35	1019
1623	1971	115	013.45.1800.03K1	1905	1695	1802	100	9	1800	9	36	36	M10X1	33	32	1554.5	100	14	112	0.5	811
1623	1971	109	013.50.1800.03	1905	1695	1798	99	9	1800	8	48	48	M10X1	M30	33	1554	100	14	112	0.5	800
1664	1940	110	013.45.1800.03K	1887	1713	1798	100	10	1800	2	30	30	M10X1	26	26	1620	70	6	272	0	659
1644	1940	110	014.45.1800.03K	1887	1713	1800	100	10	1800	9	45	45	M10X1	M24	26	1552	90	16	99	0	756
1650	2000	140	D2787/1650	1910	1700	1795	130	10	1805	4	24	24	M10X1	M24	27	1590.9	110	10	161	0	1036
1833	2178	140	2787/1833	2098	1900	1995	90	10	2000	10	60	47	M10X1	M27	M27	1764	120	14	127	0.5	949
1790	2050	212	2788/1730G2	2006	1847	1924	200	120	1926	6	72	36	M10X1	M20	M20	1930	55	10	175	0	835
1790	2050	126	2788/1712K	2006	1847	1925	92	12	1926	18	72	36	M10X1	M22	22	1712	99	16	108	0.5	859
1790	2050	112	2788/1712	2006	1847	1924	92	12	1926	18	72	36	M10X1	M22	22	1712	100	16	108	0.5	663
1758	2038	135	2787/1758	1986	1820	1903	90	45	1905.5	20	60	60	M10X1	M24	M24	1680	125	16	106	0.5	753
2057	2299	109	2787/2057	2255	2108	2183	72	9	2182	10	60	44	M10X1	M20	M20	1988	100	14	143	0.5	622
-	2427	145	014.60.2240.03	2375	2100	2239	132	13	2240	6	66	66	RC1/8	26	26	1974	125	14	143	0	1343
2121	2500	169	2787/2121	2400	2194	2299	120	9	2297	9	72	72	12	M30X3.5	M30X3.5	2034.24	150	18	114	0.5	1486
2230	2488	160	2789/2230	2445	2275	2337.5	135	5	2340	8	48	48	ZG1/4	M22	M20	2144.25	145	18	121	0	1114
2240	2500	140	2789/2240	2454	2280	2320	115	25	2360	8	56	56	M14X1.5	M24	M24	2145.6	125	18	121	0	1161
2240	2500	140	2789/2240G2K	2454	2280	2320	115	25	2350	8	56	56	M14X1.5	M24	M24	2145.6	125	18	121	0	1000
2240	2500	140	2789/2240G2K	2454	2280	2320	115	5	2360	8	56	56	M14X1.5	M24	M24	2145.6	125	18	121	0	1161
2325	2678	144	014.60.2500.03K	2610	2391	2497.5	132	12	2500	4	56	56	M10X1	M33	M33	2220	120	20	112	0.5	1400
2553	2908	137	2787/2553	2830	2615	2718	95	42	2801.5	15	90	90	M10X1	M27	30	2469.6	120	18	138	0.5	1478
-	3085	200	013.60.2820.03	3000	2640	2810	178	22	2820	6	60	60	M10X1	36	36	2463.4	178	18	138	0.4	3014
2625	2978	144	013.60.2800.12K/P5	2910	2691	2790	132	12	2800	8	60	60	M10X1	M30	M30	2520	120	18	141	0.5	1650
2687	3074	171	2787/2687	3008	2755	2883	156	30	2800.5	10	86	86	M10X1	M30	33	2618	130	14	188	0.5	1975
2735	2990	160	2789/2735	2945	2770	2810	135	25	2840	8	48	48	ZG1/4	M24	M20	2624.62	144	22	121	0	1487
2750	3185	179	013.70.2970.03	3104	2835	2972	129	18	2970	12	84	83	M10X1	M36	M39	2672	160	16	168	0.5	2492
2750	3185	179	013.70.2970.03K	3104	2835	2972	152	18	2970	12	84	83	M10X1	M36	39	2672	160	16	168	0.5	2680
2760	3180	144	2787/2760	3100	2860	2978	132	12	2980	10	72	72	M10X1	M36	39	2664	125	20	134	0.5	2093
2798	3180	149	013.63.2990.03	3104	2874	2991	129	18	2990	12	120	119	M10X1	M30	33	2720	130	16	171	0.5	1789
2845	3250	135	2787/2845	3160	2920	3033	9	14	3035	14	100	99	M10X1	M30	33	2757.6	126	18	154	1.8	1974
-	3200	120	013.35.3070.03/P6	3150	2990	3065	100	20	3070	8	48	48	M10X1	22	22	2894.4	100	12	242	0.5	981
