Wind Turbine Slewing Bearing

1.Product Introduction: Suitable for the yaw and pitch systems of 1.5 - 5MW wind turbines, resistant to low temperatures (-40°C), resistant to wind and sand, able to withstand alternating loads for a long time, and with a long service life.
2.Structure Type: It has an annular structure. The inner ring is fixed to the nacelle or hub, and the outer ring is connected to the tower or blade. It has built-in double-row rollers, with double seals on the outside (rubber + metal dust ring), and the raceway surface is phosphated for rust prevention.
3.Size Range: For the yaw support, the outer ring diameter is 1800 - 4000mm; for the pitch support, the outer ring diameter is 500 - 1200mm, and the height is 50 - 150mm.
4.Material: Inner ring / outer ring: 50Mn, 42CrMo; rolling elements: GCr15 bearing steel, GCr15SiMn (optional for impact resistance); seals: nitrile rubber, fluororubber (optional for oil and high temperature resistance).
5.Application Fields: 1.5MW, 2.5MW, 5MW wind turbines (yaw systems, pitch systems).
6.Key Inspection Items: Low-temperature slewing performance, anti-fatigue strength, sand and water-proof performance of seals.

Send Inquiry

Download

Product Description

Data Sheet

High-Performance Wind Turbine Slewing Bearings Engineered for Extreme Durability & Precision

Custom φ5000mm Slewing Bearings for Yaw/Pitch Systems | 30+ Years of Wind Energy Expertise | 15–20-Day Fast-Track Delivery

Wind turbine slewing bearings are the backbone of efficient wind energy systems, enabling smooth rotation and load management in yaw and pitch mechanisms. At LUOYANG INNO BEARING CO., LTD, we specialize in designing products that withstand -40°C temperatures, sandstorms, and alternating loads while ensuring 100,000+ rotation cycles. With three decades of expertise, our bearings are trusted by global OEMs for their precision, durability, and compliance with GL Wind and DNV certifications.

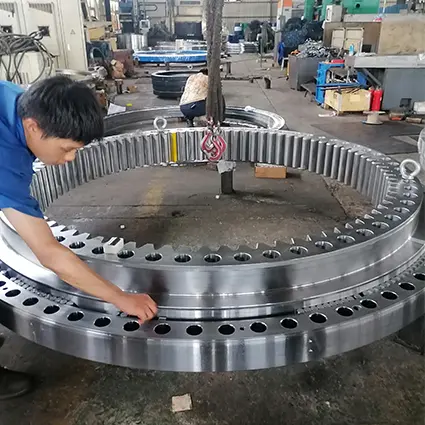

product-425-425

Product Overview

Our slewing bearings are engineered for:

Yaw Systems: Stabilizing nacelle rotation under 15,000 kN loads.
Pitch Control: Adjusting blade angles in real-time for optimal energy capture.
Offshore Turbines: Corrosion-resistant designs for saltwater environments.

Core Advantages:

Size Range: φ500mm to φ5000mm, with custom flanges and gear integrations.
70% Faster Delivery: Prototype-ready designs in 72 hours; bulk orders shipped in 25-30 days.
P4-Level Accuracy: ISO 492-compliant manufacturing for seamless torque transmission.

Technical Specifications

Materials: 42CrMo4/50Mn steel with ultrasonic testing and phosphated raceways.
Load Capacity: 5–15 MN·m dynamic load ratings (customizable).
Precision: ≤0.01mm grinding tolerance for vibration-free operation.
Sealing: Triple-lip rubber + metal dust guards for sand/water resistance.

product-1406-300

Why Choose Us?

1. Extreme Environment Resilience

Tested for -40°C to +80°C operations, our bearings feature anti-corrosion coatings and fluororubber seals to endure offshore salinity and desert sandstorms.

2. Modular, Easy-to-Integrate Designs

Pre-machined bolt holes and sensor ports reduce installation time by 40%. Compatible with Siemens, Vestas, and GE turbine architectures.

3. Smarter Maintenance

IoT-enabled bearings provide real-time load data and lubrication alerts, cutting unplanned downtime by 30%.

Customization

Need a non-standard Wind Turbine Slewing Bearing? We deliver:

Diameter Adjustments: Up to φ5000mm with internal/external gears.
Material Upgrades: GCr15SiMn rollers for shock resistance.
Surface Treatments: Quenched raceways for 20+ years in abrasive conditions.

Fast-Track Service: Submit your CAD file → Get a 3D simulation report in 3 days → Prototype testing in 10 days.

Quality Assurance

Every product undergoes:

1. Raw Material Checks: Spectrometry for 42CrMo4 purity.

2. In-Process Testing: Dimensional accuracy and hardness validation.

3. Final Validation: Load, vibration, and fatigue testing (200,000+ cycles).

Certifications: ISO 9001, GL Wind, DNV-ST-0419, and CE.

product-750-1000

Reliable Supply Chain for Global Projects

1,000+ Bearings in Stock: Standard sizes ship in 48 hours.
Regional Hubs: EU, North America, and Asia warehouses with local technical support.
Emergency Production: Dedicated lines for urgent wind farm orders.

Lifetime Support

Pre-Sales: Load analysis, CAD optimization, and certification guidance.
Post-Sales: 24/7 troubleshooting, predictive maintenance tools, and 10-year spare parts guarantees.

FAQs

1. Can you customize bearings beyond φ5000mm?

Yes! We design slewing bearings up to φ5000mm for offshore turbines, using DNV-certified materials.

2. How do you ensure corrosion resistance?

We apply zinc-nickel coatings and conduct 1,000-hour salt-spray tests for offshore compliance.

3. What testing standards do you follow?

All bearings meet ISO 281 fatigue standards and GL Wind 2010 guidelines.

4. Do you offer IoT integration?

Yes—our smart bearings include sensor ports for real-time load and wear monitoring.

5. How fast can you deliver 300 non-standard units?

With our modular production, φ3000mm bearings ship in 25-30 days.

Contact Us

Need a Quote or Technical Advice?

Email sales@inno-bearing.com within 24 hours for:

Free load-calculation reports
CAD file reviews
Emergency order scheduling

Power your wind turbines with Wind Turbine Slewing Bearing built to outlast the harshest conditions. Let's engineer your solution today!

Three-row Cylindrical Roller Slewing Bearing-with External Teeth
d576～2868mm
Boundary Dimension			Bearing Type	Related Dimension												Gear Parameter					Weight
d	D	T		D1	d1	d2	H	h	DwP	n1	n2	n3	φ1	φ2	φ3	da	b	m	Z	X	kg≈
576	844	148	131.25.710.12	808	612	747	710	138	32	4	28	28	G1/4	18	18	886.8	80	6	145	0.5	290
576	844	148	132.25.710.12	808	612	747	710	138	32	4X3	28	28	M10X1	18	18	888	80	8	108	0.5	291
1453	-	132	6397/1453	1705	1505	1630	1600	123	9	5	40	40	M10X1	26	26	1831.2	106	14	128	0.5	724
1545	1860	165	6397/1545G2	1810	1590	1752	1710	157	27	4	36	36	21	22	22	1932	100	14	136	0	965
1600	1920	160	6397/1600G2	1870	1650	1802	1760	152	27	4	3	36	25	26	26	2001	90	14	140	0.5	999
1601	1985	168	131.25.1784.03	1922	1671	1824	1784	153	28	6	48	48	M10X1	33	33	2060.16	126	16	126	0.38	1220
1605	1984	250	6397/1605G2K	1932	1657	1850	1801	217	50	6	48	36	M14X1.5	26	26	2064	170	16	127	0	1800
1620	1916	138	131.22.1770.03	1860	1670	1809	1770	129	34	5	44	44	M10X1	27	27	1988	80	14	140	0	764
1779	2221	231	131.45.2000.04	2155	1845	2055	2000	219	54	6	60	60	M10X1	33	33	-	-	-	-	-	2230
1800	2207	181	131.32.2000.03	2141	1866	2041	2000	172	42	6	46	60	M10X1	34	34	2284.8	120	16	140	0.5	1549
1816	2195	150	132.25.2000.03	2127	1885	2050	2001	137	33	3	60	60	ZG1/4	33	33	2267	105	16	138	0.9	1120
1816	2195	150	132.32.2000.03	2127	1885	2050	2003	137	33	3	60	60	ZG1/4	33	33	2267	105	16	138	0.9	1110
1850	2465	256	3-947G	2390	2020	2261	2202	236	46	6	60	60	M10X1	39	39	2554	180	18	139	0.5	3515
1990	2500	241	6397/1990	2410	2070	2295	2240	219	22	12	48	48	M10X1	45	45	2598.157	160	16	159	0.675	2780
2001	2350	184	6397/2001	22991	2054	2226	2172	172	12	4	100	100	G1/4	26	26	2427.2	120	16	148	1	1490
2019	2461	231	132.45.2240.03	2395	2085	2295	2240	219	54	6	60	60	M10X1	33	33	2556	160	18	139	0.5	2430
2221	2792	231	131.45.2500.03K1	2695	2325	2562	2500	219	54	4	68	68	M10X1	52	52	2876.4	160	18	157	0.5	3172
2236	2905	315	132.50.2555.03	2802	2348	2643	2555	305	50	24	64	64	M10X1	56	56	2996	180	20	147	0.5	5456
2240	2650	180	3-934G	2588	2300	2487	2445	165	15	6	54	54	M14X1.5	34	34	2754	132	18	150	0.5	1932
2279	2721	231	131.45.2500.03K1	2655	2345	2555	2500	219	54	8	72	72	M10X1	33	33	2826	160	18	154	0.5	2831
2279	2721	231	131.45.2500.04	2655	2345	2555	2500	219	54	8	72	72	M10X1	33	33	2826	160	18	154	0.5	2834
2279	2721	231	131.45.2500.12	2655	2345	2555	2500	219	54	8	72	72	M10X1	33	33	2826	160	18	154	0.5	2834
2319	-	147	6397/2319	2625	2385	2536	2556	138	30	6	54	54	ZG1/4	33	33	2786.4	117	18	152	0.5	1539
2369	2748	179	6397/2369	2684	2435	2597	2800	163	30	6	78	78	ZG1/4	33	33	2805.6	100	12	231	0.5	1734
2562	-	220	131.40.2800.03	2965	2640	2850	2800	210	50	8	48	48	ZG1/4	39	39	3136	170	20	154	0.5	3073
2562	-	220	131.40.2800.11	2965	2640	2850	2800	210	54	8	48	48	ZG1/4	39	33	3136	170	20	154	0.5	3073
2579	3021	231	131.45.2800.03	2955	2645	2855	2800	219	54	8	72	72	M10X1	33	33	3110.4	160	18	170	0.5	3040
2579	3021	231	131.45.2800.03K	2955	2645	2855	2800	219	54	8	72	72	M10X1	33	33	3110.4	160	18	170	0.5	3040
2579	3021	231	131.45.2800.11	2955	2645	2855	2800	219	54	8	72	72	M10X1	33	33	3114	160	18	170	0.5	3010
2579	3021	231	131.45.2800.12	2955	2645	2855	2800	219	54	8	72	72	M10X1	33	35	3114	160	18	170	0.5	3010
2579	3021	231	131.45.2800.12K	2955	2645	2855	2800	219	54	8	72	72	M10X1	33	33	3114	160	18	170	0.5	3010
2579	3021	231	132.45.2800.03	2955	2645	2855	2800	219	12	8	72	72	M10X1	33	33	3120	160	20	153	0.5	3031
2579	3021	231	132.45.2800.12	2955	2645	2855	2800	219	47	8	72	72	M10X1	33	33	3120	160	20	170	0.5	3010
2585	3015	190	6397/2585	2949	2651	2838	2794	178	21	8	56	56	M10X1	33	39	3114	120	18	170	0.5	2345
2590	3006	200	6397/2590	2930	2670	2860	2814	180	24	10	60	60	M10X1	39	39	3086	95	16	190	0.4375	2780
2590	3006	314	6397/2590K	2930	2670	2860	2814	290	70	10	60	60	M10X1	39	56	3085.21	134	16	190	0.4375	4209
2599	3376	350	6397/2599K1	3186	2711	3039.5	2948.5	341	64	8	72	72	M10X1	56	56	3376	180	20	166	0.5	6816
2669	3360	403	6397/2669	3256	2781	3100	3005	394	30	8	60	72	M10X1	56	39	3456	200	20	170	0.5	8515
2800	3260	220	6397/2800	3190	2870	3082	3030	202	30	6	60	60	M14X1.5	39	39	3360	160	20	166	0	3288
2800	3260	200	6397/2800K	3190	2870	3100	3054	202	30	6	60	60	M10X1	39	39	3360	160	20	166	0	3360
2800	3260	200	6397/2800G	3190	2870	3082	3030	202	30	6	64	60	M14X1.5	39	39	3360	160	20	166	0	3288
2800	3255	240	6397/2800GK2	3185	2870	3082	3030	202	30	8	64	48	M14X1.5	39	39	3348	160	18	1844	0	3419
2800	3255	240	6397/2800GK1	3185	2870	3082	3030	202	30	8	60	64	M14X1.5	M36	39	3348	180	18	184	0	3429
2800	3360	220	6397/2500G2	3190	2870	3082	3030	202	30	6	60	60	M14X1.5	39	39	3360	160	20	166	0	3288
2800	3260	220	6397/2800G2K1	3190	2870	3082	3030	202	30	6	64	60	M14X1.5	39	39	3360	160	20	166	0	3288
2800	3255	240	6397/2800GK2	3185	2870	3082	3030	202	30	8	72	48	M14X1.5	M36	45	3348	160	18	184	0	3424
2868	3432	270	131.50.3150.03	3342	2958	3213	3150	258	65	8	72	72	M10X1	45	45	3536	180	20	174	0.5	4897
2868	3432	270	131.50.3150.03K	3342	2958	3213	3150	258	65	8	72	72	NPT1/4	45	45	3536	180	20	174	0.5	4897
2868	3432	270	131.50.3150.04	3342	2958	3213	3150	258	65	8	72	72	M10X1	45	45	3536	180	20	174	0.5	4897
2868	3432	270	131.50.3150.11	3342	2958	3213	3150	258	65	8	72	72	ZG1/4	45	45	3540	180	20	174	0.5	4920
2868	3432	270	131.50.3150.11K	3342	2958	3213	3150	258	65	8	72	72	ZG1/4	45	45	3540	180	20	174	0.5	4930
2868	3432	270	131.50.3150.11K1	3342	2958	3213	3150	258	65	8	72	72	ZG1/4	45	45	3540	180	20	175	0	4920
2868	3432	270	131.50.3150.12	3342	2958	3213	3150	258	65	8	72	72	M10X1	45	45	3540	180	20	174	0.5	4917
2868	3432	270	131.50.3150.12K	3342	2958	3214	3150	258	50	8X2	72	72	ZG1/4	45	45	3540	180	20	174	0.5	5404
2868	3432	270	131.50.3150.13K1	3342	2958	3214	3150	258	50	8	72	72	M10X1	45	45	3536	180	20	174	0.5	5385
2868	3432	270	131.50.3150.14K3	3342	2958	3214	3150	258	50	12	60	60	M10X1	45	40	3536	180	20	174	0.5	5043
2868	3432	270	131.50.3150.15K4	3342	2958	3213	3150	258	65	8	72	72	ZG1/4	45	45	3546	180	18	194	0.5	4917
2868	3432	270	132.50.3150.03	3342	2958	3213	3150	258	65	8	72	72	M10X1	45	45	3537.6	180	25	158	0.5	4907
2868	3432	270	132.50.3150.03K	3342	2958	3213	3150	258	65	8	72	72	M10X1	45	45	3595	180	25	141	0.5	5145
2868	-	270	132.50.3150.03K1	3342	2958	3213	3150	258	65	8	72	72	M10X1	45	45	3595	205	25	141	0.5	5250
2868	3432	270	132.50.3150.03K2	3342	2958	3213	3150	258	65	8	72	72	M10X1	45	45	3595	180	25	141	0.5	5145
2868	3432	270	132.50.3150.04	3342	2958	3213	3150	258	65	8	72	72	M10X1	45	45	3537.6	180	22	141	0.5	4907
2868	3432	270	132.50.3150.04K	3342	2958	3213	3150	258	65	8	72	72	ZG1/4	45	45	3537.6	180	22	158	0.5	4907
2868	3432	270	132.50.3150.12K	3342	2958	3214	3150	258	50	8X2	72	72	ZG1/4	45	45	3542	180	22	158	0.5	5409
2868	3432	270	132.50.3150.12K1	3342	2958	3213	3150	258	65	8	72	72	ZG1/4	45	45	3542	180	22	158	0.5	4930
2885	3400	229	6397/2885	3310	2975	3200	3140	210	54	6	72	72	M10X1	45	45	3475	140	16	214	0.75	3597
2885	3400	229	131.40.3145.03	3310	2975	3200	3140	210	53	8	72	72	M10X1	39	39	3475	140	16	214	0.75	3703
2910	3400	220	6392/2910G	3315	2990	3200	3150	210	50	8	56	56	M14X1.5	39	39	3520	160	16	158	0	3736
2922	3376	182	131.30.3150.03	3286	3014	3190	3150	172	40	8	56	56	M10X1	45	45	3476	120	22	171	0.5	2308
2922	3376	182	131.30.3150.12K	3286	3014	3190	3150	172	40	8	56	56	M10X1	45	45	3476	120	20	171	0.5	2308
2930	3390	216	131.38.3161.03	3312	3016	3207	3161	204	42	8	72	72	M10X1	39	39	3493.6	145	20	156	0.5	3360
3268	3832	270	131.50.3550.03	3742	3358	3613	3550	258	65	8	72	72	M10X1	45	45	3936	180	22	194	0.5	5280
3268	3832	270	131.50.3550.04	3742	3358	3613	3550	258	65	8	72	72	M10X1	45	45	3936	180	20	194	0.5	5280
3268	3832	270	132.50.3550.03	3742	3358	3613	3550	258	65	8	72	72	M10X1	45	45	3933.6	180	20	176	0.5	4955
3268	3830	270	132.50.3550.03K7	3742	3358	3613	3550	258	50	8	72	72	M10X1	45	45	3948	219	22	155	0.5	5096
3268	3832	270	132.50.3550.12	3742	3358	3613	3550	258	65	8	72	72	M10X1	45	45	3938	180	25	176	0.5	5318
3268	3832	270	132.50.3550.04	3742	3358	3613	3550	258	65	8	72	72	M10X1	45	45	3938	180	2	176	0.5	5318
3268	3832	270	132.40.3550.03	3742	3358	3600	3550	258	50	8	72	72	M10X1	45	45	3933.6	180	22	176	0.5	4860
3268	3832	270	132.50.3550.03K1	3742	3358	3613	3550	258	65	8	72	72	ZG1/4	45	45	3933.6	180	22	176	0.5	4955
3268	3832	270	132.50.3550.03K2	3742	3358	3613	3550	258	65	8	72	72	ZG1/4	45	45	3933.6	180	22	176	0.5	4951
3268	3832	270	132.50.3550.03K3	3742	3358	3613	3550	258	65	8	72	72	M10X1	45	45	3933.6	180	22	176	0.5	4955
3268	3832	270	132.50.3550.03K4	3742	3358	3613	3550	258	65	10	72	72	ZG1/4	45	45	3933.6	180	22	176	0.5	5044
3268	3832	270	132.50.3550.03K5	3742	3358	3613	3550	258	65	10	72	72	ZG1/4	45	45	3933.6	180	22	176	0.5	5042
3268	3832	270	132.50.3550.03K6	3742	3358	3613	3550	258	65	8	72	72	M10X1	45	45	3933.6	180	22	176	0.5	5029
3268	3832	270	132.50.3550.03K8	3742	3358	3613	3550	258	65	8	72	72	ZG1/4	45	45	3933.6	180	22	176	0.5	4960
3268	3832	270	132.50.3550.11K	3742	3358	3613	3550	258	65	8	72	72	ZG1/4	45	45	3938	180	22	176	0.5	5318
3292	-	229	6397/3292	3732	3382	3610	3550	219	49	8	72	72	M10X1	45	45	3936	180	22	176	0.5	4856
3340	-	212	6397/3340	3735	3441	3642	3582	180	32	10	108	108	Z1/4	33	33	3931.2	170	20	194	0.5	3684
3340	3815	270	131.50.3596.03	3735	3441	3658	3596	258	42	9	108	108	M10X1	33	33	3931.2	170	24	161	0.5	4953
3340	3815	270	131.50.3596.03K	3735	3441	3658	3596	258	42	10	120	120	M10X1	33	33	3936	170	24	161	0.5	4953
3340	-	212	132.40.3582.03	3735	3441	3642	3582	180	32	10	120	120	G1/4	33	33	3931.2	170	24	161	0.5	3791
3340	-	212	132.40.3582.03K	3735	3441	3642	3582	180	32	10	108	108	G1/4	33	33	3931.2	170	24	161	0.5	3804
3340	-	212	132.40.3582.03K1	3735	3441	3642	3582	180	32	10	108	108	G1/4	33	33	3931.2	170	24	161	0.5	3804
3340	-	211	132.40.3582.03K2	3735	3435	3642	3582	180	31	10	108	108	G1/4	39	39	3931.2	170	24	161	0.5	3704
3340	-	212	132.40.3582.03K3	3735	3441	3642	3582	180	32	10	108	108	G1/4	33	33	3931.2	170	24	161	0.5	3805
3340	-	212	132.40.3582.04	3892	3441	3642	3582	180	32	10	120	120	G1/4	33	33	3931.2	170	24	161	0.5	3685
3415	3982	270	6397/3415G2	3892	3508	3766	3693	258	65	10	80	80	G1/4	45	45	4076	180	20	201	0.5	5770
3508	3918	250	132.40.3730.03	3845	3560	3782	3730	200	55	8	80	80	G1/4	26	M24	4027.2	175	24	165	0.5	3980
3615	-	222	6397/3615	4041	3694	3920	3855	210	12	14	100	100	M10X1	39	39	4243.2	172	24	174	0.5	4709
3616	-	222	6397/3616	4041	3694	3922	3855	210	12	5	100	100	ZG1/4	39	39	4243.2	172	24	174	0.5	4750
3630	-	230	6397/3630	4030	3715	3937	3871	218	12	4	132	132	G1/4	36	36	4224	180	24	173	0.5	4550
3650	4173	222	6397/3650	4085	3740	3974	3908	210	12	6	90	90	M10X1	45	45	4266	120	20	210	0.7496	4560
3650	-	222	6397/3650K	4085	3740	3974	3908	210	12	8	90	90	G1/4	45	45	4266	171	20	210	0.7496	4688
3650	4173	222	6397/3650K1	4085	3740	3974	3908	210	12	6	90	90	G1/4	45	45	4266	120	20	210	0.7496	4623
3650	4173	222	6397/3650K2	4085	3744	3974	3908	210	12	6	90	90	M10X1	45	45	4266	120	20	210	0.7496	4606
3718	4282	270	131.50.4000.03K	4192	3808	4063	4000	258	65	8	80	80	M10X1	45	45	4395.6	180	20	197	0.5	4377
3718	4282	270	131.50.4000.03K	4192	3808	4063	4000	258	65	10	80	80	ZG1/4	45	45	4395.6	180	22	197	0.5	6420
3718	4282	270	131.50.4000.04K	4192	3808	4063	4000	258	65	8	80	80	M10X1	45	45	4400	180	22	197	0.5	6377
3718	4282	270	132.50.4000.03K	4192	3808	4063	4000	258	65	8	80	80	M10X1	45	45	4400	180	25	173	0.5	6377
3718	4282	270	132.50.4000.03K	4192	3808	4063	4000	258	65	8	80	80	ZG1/4	45	45	4395	180	25	173	0.5	6374
3718	4282	270	132.50.4000.03K1	4192	3808	4063	4000	258	65	8	80	80	ZG1/4	45	45	4395	180	25	173	0.5	6374
3718	-	270	132.50.4000.03K2	4192	3808	4063	4000	258	65	8	80	80	ZG1/4	45	45	4400	205	25	173	0.5	6394
3718	4282	270	132.50.4000.03K3	4192	3808	4063	4000	258	65	12	80	80	ZG1/4	45	45	4395	180	25	173	0.5	6440
3718	4282	270	132.50.4000.04	4192	3808	4063	4000	258	65	8	80	80	M10X1	45	45	4400	180	25	173	0.5	6377
3718	4282	270	132.50.4000.12	4192	3808	4063	4000	258	65	8	80	80	M10X1	45	45	4400	180	25	173	0.5	6377
3762	4046	258	131.50.4000.03K1	4192	3840	4058	4000	245	53	10	72	72	ZG1/4	39	39	4363.2	190	24	179	0.5	5740
3762	-	220	132.40.4000.03	4165	3840	4050	4000	210	40	9	72	72	M10X1	39	39	4400	180	25	173	0.5	5154
3780	-	192	6397/3780	4165	3858	4065	4008	180	12	10	90	90	M10X1	39	39	4336	148	20	214	0.5	3787
3870	4423	240	6397/3870	4340	3960	4224	4152	230	10	8	80	80	M10X1	45	45	4527.6	180	22	203	0.5	5850
3925	4418	222	6397/3925	4340	4010	4234	4168	210	12	9	90	90	M10X1	45	45	4501.827	162	20	222	0.577	4560
4016	4613	307	6397/4016	4512	4112	4386	4300	290	25	15	90	90	ZG1/4	48	48	4723.2	231	24	194	0.5	8181
4100	4535	268	6397/4100	4375	4160	4357	4297	240	25	12	48	48	M10X1	26	M24	4540	200	20	225	0	4642
4140	-	315	132.50.4438.03	4646	4230	4498	4438	355	65	12	72	72	ZG1/4	45	45	4870	250	25	192	0.5	9412
4218	4782	270	131.50.4500.03	4692	4308	4563	4500	258	65	8	80	80	M10X1	45	45	4901.6	180	22	220	0.5	7346
4218	4782	270	131.50.4500.04	4692	4308	4565	4500	258	60	8	80	80	M10X1	45	45	4880	185	20	242	0	7250
4218	4782	270	132.50.4500.03	4692	4308	4565	4500	258	60	10	80	80	ZG1/4	45	45	4895	185	25	193	0.5	7333
4218	4782	270	132.50.4500.03K	4692	4308	4565	4500	258	60	8	80	80	ZG1/4	45	45	4895	185	25	193	0.5	7329
4218	4782	270	132.50.4500.03K1	4692	4308	4565	4500	258	60	8	80	80	ZG1/4	39	39	4895	185	25	193	0.5	7362
4218	4782	270	132.50.4500.03K2	4692	4308	4565	4500	258	60	8	80	80	M10X1	45	45	4895	180	25	193	0.5	7331
4218	4782	270	132.50.4500.03K3	4692	4308	4565	4500	258	60	8	80	80	ZG1/4	45	45	4895	185	25	193	0.5	7424
4218	4782	270	132.50.4500.03K4	4692	4308	4560	4500	258	65	8	80	80	ZG1/4	39	39	4895	180	25	193	0.5	7373
4218	4782	270	132.50.4500.03K5	4692	4308	4565	4500	258	60	8	80	80	ZG1/4	45	45	4895	185	25	193	0.5	7336
4218	4782	270	132.50.4500.04	4692	4308	4565	4500	258	60	10	80	80	ZG1/4	45	45	4895	185	25	193	0.5	7333
4218	4782	270	132.50.4500.04K	4692	4308	4565	4500	258	60	8	80	80	M14X1.5	45	45	4895	185	25	193	0.5	7333
4246	-	233	6397/4246	4678	4330	4568	4495	221	12	6	96	96	ZG1/4	42	42	4860	174	20	240	0.5	5810
4246	-	233	6397/4246K	4678	4330	4568	4495	221	19	8	96	96	ZG1/4	42	42	4860	174	20	240	0.5	5805
4262	-	220	131.40.4500.03	4665	4340	4550	4500	210	50	14	84	84	M10X1	39	39	4867.2	170	24	200	0.5	5313
4375	4900	275	6397/4375	4820	4455	4708	2314	250	17	11	88	88	ZG1/4	45	45	5160	180	20	256	0	8552
4440	-	235	6397/4440	4980	4540	4850	4755	235	12	10	96	96	G1/4	45	45	5232	183	24	215	0.5	8079
4670	5320	320	131.60.5000.04	5220	4766	5082	5000	302	65	10	100	100	M10X1	45	45	5440	220	20	270	0	11752
4670	5330	330	132.60.5000.03K	5220	4766	5082	5000	314	70	10	100	100	ZG1/4	52	52	5488	220	28	193	0.5	11706
4735	-	278	132.50.5000.03K	5220	4825	5060	5000	258	65	13	78	78	M10X1	45	45	5486.18	213	28	193	0.5	9113
4735	-	268	132.50.5000.03K1	5220	4825	5060	5000	258	65	8	90	90	ZG1/4	45	45	5419.2	203	24	222	1	7922
4747	5309	268	6397/4747	5217	4825	5118	5000	258	65	15	90	90	M10X1	39	39	5419.2	202	24	223	0.5	8070
4830	5480	336	6397/4830	5360	4930	5215	5134	321	70	12	120	120	M10X1	48	48	5650	220	25	223	0.5	13078
4914	5381	261	6397/4914	5295	4980	5231	5132	210	40	12	72	72	M10X1	33	33	5491.2	145	24	226	0.4	6381
5230	5940	385	131.70.5560.04	5820	5320	5685	5560	379	95	16	80	80	ZG1/4	45	45	6070	270	25	240	0.5	16722
