/ Thrust ball bearings

Single Direction Thrust Ball Bearing

1.Product Introduction: The same as "Single-row Thrust Ball Bearings". It uses single-row steel balls to bear unidirectional axial loads and is suitable for light and medium unidirectional load scenarios.

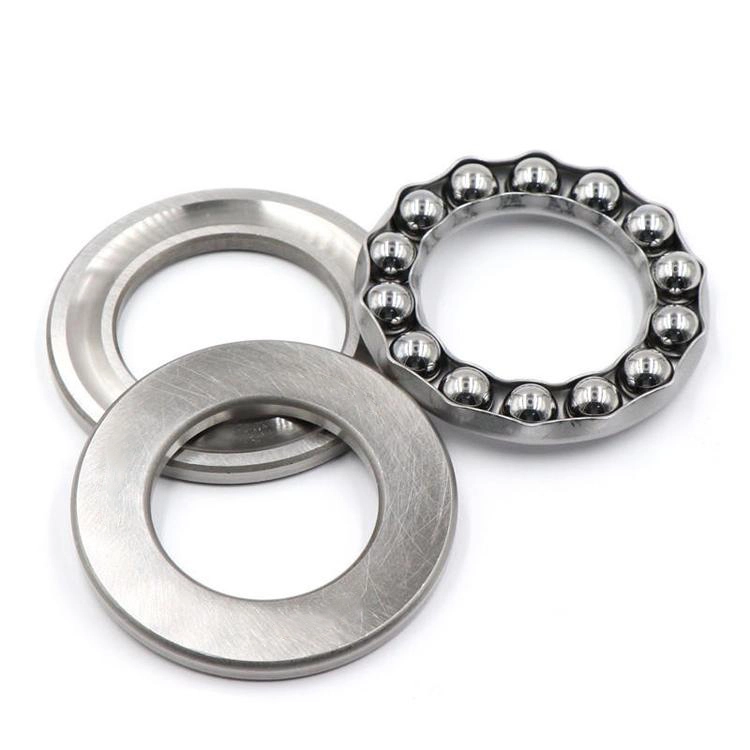

2.Structure Type: Shaft washer + housing washer + single-row steel balls + cage. The shaft washer is tightly fitted to the shaft, and the housing washer is tightly fitted to the bearing housing.
3.Size Range: Inner diameter: 10 - 300mm, outer diameter: 30 - 400mm, height: 8 - 50mm.
4.Material: Shaft washer: GCr15/GCR15SIMN/20Cr2Ni4A, housing washer: GCr15/GCR15SIMN/20Cr2Ni4A, rolling elements (steel balls): GCr15/GCR15SIMN, cage: stamped steel / brass.
5.Accuracy: Conventional P0/P6 grades, precision models are of P5 grade.
6.Application Fields: Water pumps, small motors, feed shafts of machine tools, light industrial equipment.
7.Key Inspection Items: Axial clearance, conformity of steel balls fitting, flatness of shaft washer.

Send Inquiry

Download

Product Description

Data Sheet

High-Performance Single Direction Thrust Ball Bearings for Heavy Axial Loads

Engineered for Extreme Conditions: 150°C Heat Resistance | P4 Precision | 48-Hour Delivery

When your machinery faces relentless axial forces, our Single Direction Thrust Ball Bearings deliver unmatched reliability. Designed for industrial applications like wind turbines, rolling mills, and port cranes, these bearings handle axial loads up to 500 kN while enduring temperatures from -40°C to 500°C. With 30+ years of expertise, LUOYANG INNO provides solutions that balance precision, durability, and rapid customization.

product-750-750

Why Choose Our Thrust Ball Bearings?

Extreme Load Capacity

Support axial forces up to 800 kN in one direction with reinforced cage designs.

Customizable Materials

Choose from stainless steel (AISI 440C), ceramic hybrids, or GCr15 steel for corrosion resistance or high-temperature performance.

Precision Engineering

Achieve ABEC-3 or P4-grade accuracy to minimize vibration in wind turbine systems.

Rapid Delivery

Get 1,000+ standard models in 48 hours; non-standard designs (up to φ5000mm) in 15–20 days.

product-1406-300

Technical Specifications

Parameter	Specification
Axial Load Capacity	50 kN – 800 kN
Temperature Range	-40°C to +150°C
Precision Grades	ABEC-1, ABEC-3, P4, P5
Material Options	Stainless Steel, Ceramic Hybrid, GCr15
Standard Sizes (OD)	30mm – 400mm (Custom up to φ5000mm)
Certifications	ISO 9001, ISO 14001, IEC 61400-4

Built for Demanding Industries

Wind Energy Systems

Our thrust ball bearings withstand saltwater corrosion and variable loads in offshore turbines, backed by 1,000+ hour salt spray testing.

Metallurgical Machinery

Single Direction Thrust Ball Bearings reinforced cages absorb sudden impacts in rolling mills, while heat-treated components resist deformation at 150°C.

Medical Equipment

Ultra-low-noise designs (≤20 dB) ensure smooth operation in MRI machines and surgical tools.

product-1256-742

How We Ensure Quality?

1. Material Science Expertise

Laser-hardened raceways increase lifespan by 40% vs. industry standards.

2. 12-Stage Testing Protocol

Every bearing undergoes vibration analysis, accelerated fatigue tests, and 3D geometry inspections.

3. IoT-Enabled Predictive Maintenance

Optional smart sensors monitor wear in real-time, reducing unplanned downtime by 60%.

Ordering Made Simple

1. Share Requirements

Submit axial load, speed, and environmental conditions.

2. Review CAD Models

Get technical drawings and a quote within 24 hours.

3. Prototype Testing

Validate performance with a sample (optional for non-standard orders).

4. Fast Production

Bulk orders ship in 15–20 days with DDP/DAP logistics support.

FAQs

Q: Can your bearings handle saltwater environments in offshore wind farms?

A: Yes. Our Offshore Pro Series uses sealed, hybrid ceramic designs with 5x better corrosion resistance.

Q: What’s the minimum order quantity for custom sizes?

A: MOQ is 50 units. We accommodate urgent small batches—contact us for details.

Q: Do you provide installation support?

A: Free video-guided installation and 24/7 engineering consultations are included.

Contact Us

Need Single Direction Thrust Ball Bearings That Outlast Your Machinery?

➔ Email Us for a Free Specification Sheet + Custom Quote

LUOYANG INNO BEARING CO., LTD

📧 sales@inno-bearing.com | 🌐 Global Stock | 🚚 48-Hour Dispatch

d 65～100mm
Overall Dimensions						Rated Load		Limiting Rotational Speed		Bearing Designation		Minimum Load A	Mounting Dimensions			Weight
d	d1min	D	D1max	H	rnin	Dynamic Load C	Static Load Co	Grease	Oil	Current Model	Original Model	Minimum Load A	da	Da	ramax	Weight
mm						kN		r/min					mm			kg
65	67	115	115	36	1.1	116	228	1600	2200	51313	8313	0.638	95	85	1	1.57
65	68	140	140	56	2	217	428	1000	1500	51413	8413	1.48	110	95	2	4.2
70	72	95	95	18	1	42	119	2400	3400	51114	8114	0.119	85	80	1	0.36
	72	105	105	27	1	73.6	161	1800	2600	51214	8214	0.226	91	84	1	0.81
	72	125	125	40	1.1	148	285	1400	1900	51314	8314	0.756	103	92	1	1.932
	73	150	150	60	2	257	475	950	1400	51414	8414	2.07	118	102	2	5.18
75	77	100	100	19	1	44	130	2200	3200	51115	8115	0.128	90	85	1	0.42
	77	110	110	27	1	74.9	173	1700	2400	51215	8215	0.295	96	89	1	0.86
	77	135	135	44	1.5	163	342	1200	1700	51315	8315	1.04	111	99	1.5	2.7
	78	160	160	65	2	269	532	900	1300	51415	8415	3.05	125	110	2	6.97
80	82	105	105	19	1	48.8	133	2000	3000	51116	8116	0.138	95	90	1	0.43
	82	115	115	28	1	83.8	193	1700	2400	51216	8216	0.324	101	94	1	0.95
	82	140	140	44	1.5	178	342	1200	1700	51316	8316	1.19	116	104	1.5	2.58
	83	170	170	68	2.1	292	589	850	1200	51416	8416	3.726	133	117	2	7.11
85	87	110	110	19	1	49.2	143	2000	3000	51117	8117	0.148	100	95	1	0.46
	88	125	125	31	1	103	238	1600	2200	51217	8217	0.56	109	101	1	1.3
	88	150	150	49	1.5	209	404	1100	1600	51317	8317	1.766	123	111	15	3.7
	88	180	177	72	2.1	318	646	850	1200	51417	8417	4.42	141	124	2	9.5
90	92	120	120	22	1	65.1	181	1800	2600	51118	8118	0.256	108	102	1	0.636
	93	135	135	35	1.1	125	285	1500	2000	51218	8218	0.746	117	108	1	1.77
	93	155	155	50	1.5	221	408	1000	1500	51318M	8318	0.202	129	116	1.5	4.21
	93	190	187	77	2.1	327	713	800	1100	51418	8418	6.09	149	131	2	11.2
100	102	135	135	25	1	85.1	257	1700	2400	51120	8120	0.403	121	114	1	1
100	103	150	150	38	1.1	149	347	1300	1800	51220M	8220	1.226	130	120	1	2.51
d 100～160mm
Overall Dimensions						Rated Load		Limiting Rotational Speed		Bearing Designation		Minimum Load A	Mounting Dimensions			Weight
d	d1min	D	D1max	H	rnin	Dynamic Load C	Static Load Co	Grease	Oil	Current Model	Original Model	Minimum Load A	da	Da	ramax	Weight
mm						kN		r/min					mm			kg
100	103	170	170	55	1.5	263	513	950	1400	51320M	8320	3.236	142	128	1.5	5.46
100	103	210	205	85	3	399	917	700	950	51420	8420	9.606	165	145	2.5	14.9
110	112	145	145	25	1	87.2	276	1600	2200	51122	8122	0.48	131	124	1	1.08
	113	160	160	38	1.1	139	393	1200	1700	51222	8222	1.58	140	130	1	2.6
	113	190	187	63	2	280	684	850	1200	51322	8322	4.216	158	142	2	7.9
	113	230	225	95	3	415	1150	630	850	51422	8422	12.7	181	159	2.5	20
120	122	155	155	25	1	87.1	295	1600	2200	51124	8124	0.48	141	134	1	1.16
	123	170	170	39	1.1	136	399	1200	1700	51224	8224	1.58	150	140	1	2.9
	123	210	205	70	2.1	330	869	800	1100	51324	8324	6.176	173	157	2	9.75
130	132	170	170	30	1	109	371	1400	1900	51126	8126	0.922	154	146	1	1.87
	133	190	187	45	1.5	186	535	950	1400	51226	8226	2.85	166	154	1.5	4.2
	134	225	220	75	2.1	358	1007	750	1000	51326	8326	7.36	186	169	2	13.3
	134	270	265	110	4	490	1520	560	750	51426	8426	26.3	213	187	3	32
140	142	180	178	31	1	111	380	1300	1800	51128	8128	0.99	164	156	1	2.1
	143	200	197	46	1.5	191	542	950	1400	51228	8228	3.15	176	164	1.5	4.5
	144	240	235	80	2.1	396	1159	700	950	51328	8328	10.4	199	181	2	15.9
	144	280	275	112	4	553	1750	500	700	51428	8428	26.3	222	198	3	32.2
150	152	190	188	31	1	112	380	1200	1700	51130	8130	1.09	174	166	1	2.2
	153	215	212	5	1.5	244	698	900	1300	51230	8230	4.13	189	176	1.5	5.8
	154	250	245	80	2.1	407	1226	670	900	51330	8330	12	209	191	2	16.7
160	162	200	198	31	1	112	404	1200	1700	51132	8132	1.276	184	176	1	2.3
	163	225	222	51	1.5	240	741	850	1200	51232	8232	4.52	199	186	1.5	6.7
	164	270	265	87	3	463	1425	630	850	51332	8332	16.3	225	205	2.5	21.5
