Single Thrust Ball Bearing

1.Product Introduction: It is also known as "Unidirectional Thrust Ball Bearings" in an informal abbreviation. It uses single-row steel balls to bear unidirectional axial loads and has a simple structure.
2.Structure Type: Shaft washer + housing washer + single-row steel balls + cage, open structure.
3.Size Range: Inner diameter: 10 - 300mm, outer diameter: 30 - 400mm, height: 8 - 50mm.
4.Material: Shaft washer: GCr15/GCR15SIMN/20Cr2Ni4A, housing washer: GCr15/GCR15SIMN/20Cr2Ni4A, rolling elements (steel balls): GCr15/GCR15SIMN, cage: stamped steel / brass.
5.Accuracy: Conventional P0/P6 grades, precision models are of P5 grade.
6.Application Fields: Water pumps, small motors, office equipment, light industrial machinery.
7.Key Inspection Items: Axial clearance, arrangement of steel balls, flatness of shaft washer and housing washer.

Send Inquiry

Download

Product Description

Data Sheet

High-Performance Single Thrust Ball Bearings for Extreme Industrial Demands

When your machinery faces relentless axial loads, Single Thrust Ball Bearings from LUOYANG INNO BEARING CO., LTD deliver unmatched reliability. With 30+ years of specialization, we engineer bearings that withstand up to 500 kN static loads and 150°C temperatures while maintaining P4-grade precision. Whether you need standard sizes for urgent replacements or custom designs up to φ5000mm, our dual-track supply chain ensures 48-hour delivery or 15-day prototyping.

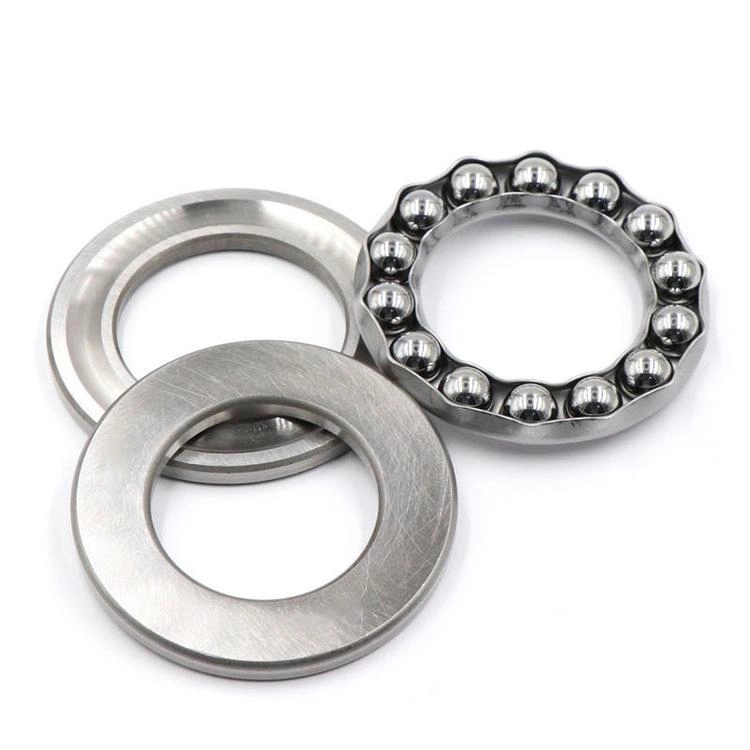

product-750-750

Technical Excellence: Precision Engineered for Heavy Loads

Core Specifications

Axial Load Capacity: 50 kN to 500 kN (dynamic), 150 kN to 1,200 kN (static)
Dimensions: Inner Diameter 10–300mm | Outer Diameter 30–400mm | Height 8–50mm
Materials: Shaft/housing washers (GCr15/20Cr2Ni4A) | Steel balls (GCr15SIMN) | Stamped steel/brass cages
Precision: P0/P6 standard | P5 for medical/automated equipment
Temperature Range: -30°C to 150°C with heat-treated steel

Performance Highlights

Noise Control: ≤35 dB for medical imaging systems
Lifespan: 2x industry average under cyclic stress
Lubrication: Optional high-temperature grease or corrosion-resistant coatings

Where Our Single Thrust Ball Bearings Excel?

![Industrial Applications]

Steel Mills: Handles 300°C+ environments in rolling mill stands
Port Cranes: Supports 200-ton loads in saltwater-resistant designs
Medical Devices: ABEC-7 precision for MRI machines
Pumps/Motors: Reduces downtime in chemical processing plants

Custom-Built Solutions: Beyond Standard Sizes

Need bearings larger than φ3000mm or unique load profiles? Our agile R&D team delivers:

1. Non-Standard Dimensions: Up to φ5000mm outer diameter

2. Enhanced Durability: Case-hardened surfaces or ceramic hybrid balls

3. Mounting Kits: Pre-assembled housings/seals for faster installation

Production Timeline:

Standard (φ10–300mm): Shipped in 48 hours
Custom (φ300–5000mm): Ready in 15–20 days

Quality Validated by Data

Every Single Thrust Ball Bearing undergoes:

✅ Raw Material Inspection: Spectrometry for steel purity (99.95% Cr15)

✅ In-Process Checks: 3D scanning for dimensional accuracy (±0.001mm)

✅ Final Testing: 12-hour load simulation + noise/vibration analysis

Certifications: ISO 9001, CE, IATF 16949

Global Logistics: Ready When You Are

Stock Availability: 1,000+ standard units for urgent orders
Regional Hubs: EU (Germany), NA (Texas), Asia (Singapore)
Bulk Discounts: 15% off orders above 500 units

Your Lifetime Technical Partner

Beyond delivery, we provide:

Load Analysis: Pre-installation stress simulations
IoT Monitoring: Real-time wear tracking via sensors
Emergency Support: 24/7 replacement coordination

Warranty: 3-year coverage + lifetime consultancy

Why Choose Us Over Generic Suppliers?

Factor	LUOYANG INNO	Typical Competitors
Max Load Capacity	500 kN	350 kN
Lead Time (Custom)	15 days	30–45 days
Temperature Resistance	150°C with specialized alloys	150°C

FAQ

1. How do your bearings survive 500°C in steel mills?

We use 20Cr2Ni4A alloy steel with vacuum heat treatment, reducing thermal expansion by 40%.

2. Can you make φ5000mm bearings for port cranes?

Yes! Our modular production system handles oversized orders without quality loss.

3. What ensures low noise in medical applications?

Precision-ground balls and P5-grade cages minimize vibration (tested per ISO 15242).

4. How fast can you ship to North America?

Standard bearings ship from Texas in 72 hours.

Contact Us

Ready to Upgrade Your Machinery's Backbone?

📩 Contact Us Today: Email sales@inno-bearing.com for:

Instant quotes for standard/custom Single Thrust Ball Bearings
Free CAD models and load capacity calculators
Site-specific engineering consultations

Trusted by 500+ OEMs in 30 Countries

d 10～35mm
Overall Dimensions						Rated Load		Limiting Rotational Speed		Bearing Designation		Minimum Load A	Mounting Dimensions			Weight
d	d1min	D	D1max	H	rnin	Dynamic Load C	Static Load Co	Grease	Oil	Current Model	Original Model	Minimum Load A	da	Da	ramax	Weight
mm						kN		r/min					mm			kg
10	11	24	24	9	0.3	10	13.3	7000	9500	51100	8100	0.002	19	15	0.3	0.02
10	12	26	26	11	0.6	12.7	16.2	6000	8000	51200	8200	0.003	20	16	0.6	0.03
12	13	26	26	9	0.3	10.3	14.5	7000	9500	51101	8101	0.002	21	17	0.3	0.022
12	14	28	28	11	0.6	13.2	18.1	6000	8000	51201	8201	0.003	22	18	0.6	0.035
15	16	28	28	9	0.3	10.5	13.3	6300	8500	51102	8102	0.003	23	20	0.3	0.024
	17	32	32	12	0.6	14.2	15.8	5300	7000	51202	8202	0.005	23	20	0.3	0.044
	15.2	32	32	12	0.6	14.2	15.8	5300	7000	51202/YB2	8202K	0.005	25	22	0.6	0.0451
17	18	30	30	9	0.3	10.8	13.4	6300	8500	51103	8103	0.003	25	22	0.3	0.0242
17	19	35	35	12	0.6	17.2	26.1	5300	7000	51203	8203	0.006	28	24	0.6	0.053
20	21	35	35	10	0.3	13.4	18.6	5600	7500	51104	8104	0.005	29	26	0.3	0.0372
20	22	40	40	14	0.6	22.3	35.6	4500	6000	51204	8204	0.009	32	28	0.6	0.08
25	26	42	42	11	0.6	17.4	27.6	4800	6300	51105	8105	0.007	35	32	0.6	0.06
	25.2	47	47	15	0.6	27.8	47.5	4000	5300	51205	8205	0.018	38	34	0.6	0.112
	27	52	52	18	1	35.7	52.3	3400	4500	51305	8305	0.026	41	36	1	0.18
	27	60	60	24	1	55.5	85.5	2600	3600	51405	8405	0.053	46	39	1	0.34
30	32	47	47	11	0.6	18.1	31.8	4500	6000	51106	8106	0.009	40	37	0.6	0.07
	32	52	52	16	0.6	28.1	45.1	3600	4800	51206	8206	0.02	43	39	0.6	0.137
	32	60	60	21	1	428	62.2	2800	3800	51306	8306	0.046	48	42	1	0.252
	32	70	70	28	1	72.7	119	2200	3200	51406	8406	0.084	54	46	1	0.53
35	37	52	52	12	0.6	21.2	38.2	4300	5600	51107	8107	0.014	45	42	0.6	0.0836
	35.2	62	62	18	1	39.2	63.7	3200	4300	51207	8207	0.04	56	46	1	0.22
	37	68	68	24	1	55.4	83.6	2400	3400	51307	8307	0.072	55	48	1	0.39
d 35～65mm
Overall Dimensions						Rated Load		Limiting Rotational Speed		Bearing Designation		Minimum Load A	Mounting Dimensions			Weight
d	d1min	D	D1max	H	rnin	Dynamic Load C	Static Load Co	Grease	Oil	Current Model	Original Model	Minimum Load A	da	Da	ramax	Weight
mm						kN		r/min					mm			kg
35	37	80	80	32	1.1	87	148	1800	2600	51407	8407	0.17	62	53	1	0.82
40	42	60	60	13	0.6	26.9	47.5	3800	5000	51108	8108	0.027	52	48	0.6	0.12
	42	68	68	19	1	47	93.1	2800	3800	51208	8208	0.055	57	51	1	0.27
	42	78	78	26	1	69.2	106	2000	3000	51308	8308	0.103	63	55	1	0.426
	42	90	9	36	1.1	112	194	1700	2400	51408	8408	0.275	70	60	1	1.18
45	47	65	65	14	0.6	27	54.2	3400	4500	51109	8109	0.027	57	53	0.6	0.15
	47	65	65	14	0.6	31.6	108	3400	4500	51109M	8109	0.027	57	53	0.6	0.16
	47	73	73	20	1	47.8	81	2600	3600	51209	8209	72	62	56	1	0.32
	47	85	85	28	1	75.8	133	1900	2800	51309	8309	0.148	69	61	1	0.665
	47	100	100	39	1.1	141	228	1600	2200	51409	8409	0.442	78	67	1	1.64
50	52	70	70	14	0.6	27.1	59.9	3400	4500	51110	8110	0.032	62	58	0.6	0.16
	52	78	78	22	1	48.5	101	2400	3400	51210	8210	0.097	67	61	1	0.375
	52	95	95	31	1.1	96.6	164	1800	2600	51310	8310	0.266	77	68	1	1
	52	110	110	43	1.5	160	295	1500	2000	51410	8410	0.589	86	74	1.5	1.99
55	57	78	78	16	0.6	34.4	74.1	3000	4000	51111	8111	0.068	69	64	0.6	0.232
	57	90	90	25	1	67.6	127	2000	3000	51211	8211	0.168	76	69	1	0.61
	57	105	105	35	1.1	114.5	198	1600	2200	51311	8311	0.393	85	75	1	1.34
	57	120	120	48	1.5	183	342	1300	1800	51411	8411	0.834	94	81	1.5	2.6
60	62	85	85	17	l	40.3	87	2600	3600	51112	8112	0.07	75	70	1	0.29
	62	95	95	26	1	73.6	141	1900	2800	51212	8212	0.207	81	74	1	0.69
	62	110	110	35	1.1	118	208	1600	2200	51312	8312	0.462	90	80	1	1.43
	62	130	130	51	1.5	201	380	1200	1700	51412	8412	1.326	102	88	1.5	3.3
65	67	90	90	18	1	41.7	103	2400	3400	51113	8113	0.099	80	75	1	0.34
65	67	100	100	27	1	74.9	151	1800	2600	51213	8213	0.226	86	79	1	0.77
