/ Four row cylindrical roller bearings

Hot Rolling Mill Bearings

1.Product Introduction: Metric dimensions, suitable for domestic equipment, radial load-bearing, cost-effective.
2.Structure Type: Inner ring/outer ring ribs, single-row/double-row rollers + cage, open type/sealed type, compliant with GB/T standards.
3.Dimension Range: Inner diameter: 10-1000mm, Outer diameter: 26-2000mm, Width: 8-300mm
4.Material: Inner ring/Outer ring/Rollers: GCr15/GCr15SiMn/20Cr2Ni4A; Cage: Stamped steel/brass
5.Accuracy: Class P0/P6, Class P5 for precision models
6.Application Fields: Domestic motors, machine tools, reducers, automobiles, construction machinery
7.Key Inspection Items: Metric dimensional accuracy (GB/T standard), radial clearance, load capacity

Send Inquiry

Download

Product Description

Data Sheet

High-Performance Hot Rolling Mill Bearings

When your rolling mill operates under extreme heat, heavy loads, and relentless production cycles, Hot Rolling Mill Bearings can't be an afterthought. At LUOYANG INNO BEARING CO., LTD, we engineer bearings that thrive in 500°C+ environments, withstand 3000kN loads, and deliver 3x longer lifespans than industry standards. With 1,000+ bearings in global stock and custom solutions ready in 15-20 days, we keep your mills running with minimal downtime.

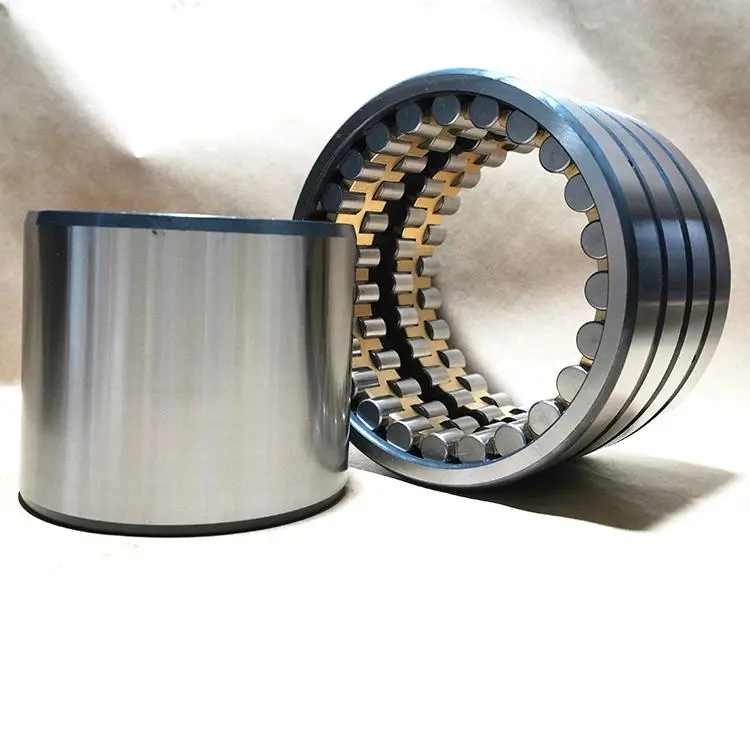

product-750-750

Why Choose Us?

1. Built for Extreme Metallurgical Demands

Our bearings are crafted from high-purity chromium steel (SUJ2/GCr15) and undergo specialized heat treatment to resist thermal deformation (<0.1mm at 150°C). Perfect for:

Heavy-load zones: Roughing stands, plate mills.
High-speed applications: Finishing stands (up to 1200 RPM).
Harsh conditions: Scale, dust, and water ingress.

2. Precision Customization for Unique Needs

Whether you need a φ5000mm bearing for legacy equipment or a tapered design for tandem mills, we deliver:

Tolerances as tight as ±0.01mm (ISO P5/P6 standards).
Non-standard solutions: Split cages, hybrid ceramic rollers.
IoT-ready bearings: Embedded sensors for real-time wear monitoring.

3. Rapid Response, Global Reach

48-hour delivery for standard bearings (ID 50mm–2000mm).
15-day lead time for custom orders (φ3000mm+).
Regional hubs in the EU, North America, and Asia ensure timely support.

Key Specifications

Parameter	Details
Load Capacity	500kN–3000kN (static/dynamic)
Temperature Range	-30°C to 150°C
Sizes	ID 50mm–5000mm (ISO/ANSI/DIN + custom)
Materials	SUJ2/GCr15 steel, ceramic hybrids
Lifespan	50,000+ hours (moderate load)

Where They Excel?

Our Hot Rolling Mill Bearings are trusted in:

Hot strip mills: Roughing stands, coilers.
Continuous casters: Segment rolls, dummy bars.
Forging presses: High-impact forging manipulators.

How We Ensure Quality?

1. Material Testing: Ultrasonic checks for impurities.

2. Precision Grinding: Achieve HRC 58-62 hardness.

3. 100% Vibration Analysis: Detect micro-defects pre-shipment.

Result? 99.9% defect-free bearings with MTBF exceeding 50,000 hours.

Customization Made Simple

1. Share Requirements: Send CAD files or specs.

2. Prototype & Test: 3D modeling + load simulations (5-7 days).

3. Fast-Track Production: 15-20 days for bulk orders.

FAQ

Q: How do your bearings handle 150°C heat?

A: Advanced heat treatment and graphene-enhanced lubrication prevent thermal expansion.

Q: Can you retrofit bearings for old mills?

A: Yes! We’ve upgraded 200+ legacy systems with custom cages/seals.

Q: What’s the lead time for a φ4000mm bearing?

A: 18 days (materials pre-stocked).

Q: Do you offer IoT monitoring?

A: Yes – track vibration, temperature, and load in real time.

Contact Us

Get Your Solution Today

Reduce downtime and maintenance costs with Hot Rolling Mill Bearings designed for your toughest challenges.

📧 Contact us: sales@inno-bearing.com

🌐 Global support: 24/7 technical assistance, on-site inspections available.

d 90～230mm
Overall Dimensions							Rated Load		Bearing Designation		Other Dimensions				Weight
d	D	B	F	rmin	r1min		Dynamic Load C	Static Load C。	Current Model	Original Model	damin	Damin	Damax	ramax	Weight
mm							kN				mm				kg
90	140	70	105	1.5	1.1		219	423	FC182870		98	126	132	1	4.08
100	140	104	111	1.5	1.1		333	793	FC2028104		108	129	135	1	5.18
131	196.85	128	148	2.1	2.1		604	1200	BFC 2639128 X3/P5		142	181	186	1.5	13.4
140	210	125	158	2	2		622	1270	FC2842125		151	192	199	1.5	15.6
140	210	155	158	2	2		786	1710	FC2842155		151	192	199	1.5	18.9
150	225	120	169	2	2		658	1289	FC3045120		161	207	216	1.5	15.9
160	230	130	180	2	2		703	1560	FC3246130		171	214	219	1.5	19.8
180	260	168	202	2.1	2.1		1152	2250	FC3652168		192	240	248	1.5	30
	260	168	202	2.1	2.1		1152	2250	FC3652168/YA		192	240	248	1.5	30
	260	168	202.1	2.1	2.1		1152	2250	FC3652168-1		192	240	248	1.5	30
190	260	168	212	2.1	2.1		870	2340	FC 3852168/C4		203	243	249	1.5	26.2
	270	200	212	2.1	2.1		1359	3020	FC3854200		201	252	259	1.5	383
	270	200	213.3	2.1	2.1		1359	3020	FC3854200-1		201	252	259	1.5	37.1
200	290	192	226	2.1	2.1		1386	2880	FC4058192		212	268	278	2	42.8
210	300	210	234	2.1	2.1		1520	3170	FC4260210		223	278	287	2	47.5
220	310	192	246	2.1	2.1		1512	3285	FC4462192		233	286	298	2	47.1
230	330	206	260	2.1	2.1		1683	3600	FC4666206/SO		243	306	317	2	59.3
d250～370mm
Overall Dimensions							Rated Load		Bearing Designation		Other Dimensions				Weight
d	D	B	F	rmin	r1min		Dynamic Load C	Static Load C。	Current Model	Original Model	damin	Damin	Damax	ramax	Weight
mm							kN				mm				kg
250	340	230	176	2.1	2.1	1720	4680		FC 5068230/HC/P64		263	318	329	1.5	19.2
260	370	220	292	3	3	1944	4460		FC5274220		274	342	356	2.5	77.3
	370	220	292	3	3	1944	4460		FC5274220A		274	342	356	2.5	77.3
	370	220	292	3	3	2012	4620		FC5274220/YA		274	342	356	2.5	80.8
270	380	275	300	2.1	2.1	2620	6990		FCD 5476275 WB/P69		283	352	369	1.5	100
280	390	220	312	3	3	2016	4760		FC5678220		294	362	376	2.5	83.4
280	390	275	312	3	3	2472	6190		FCDP5678275/HCYB		293	362	377	2.5	105
290	410	240	320	4	4	2150	5260		FC5882240		304	380	396	3	97.5
290	410	240	320	4	4	2220	5450		FC5882240/YA		304	380	396	3	91.9
300	420	240	332	4	4	2060	5020		FC6084240		314	392	406	3	98.3
	420	300	332	3	3	3366	7920		FCD6084300		314	392	406	2.5	128
	420	300	332	3	3	3366	7320		FCDP6084300		314	392	406	2.5	133
310	420	300	338	4	4	2800	7520		FCD 6284300 HC/P64		328	391	402	3	117
320	480	290	364	4	4	3474	8847		FCDP6496290	6672164Y	346	462	466	3	186
	480	350	364	4	4	4455	9720		FC6496350		346	462	466	3	225
	480	350	364	4	4	4455	9720		FCD6496350		346	462	466	3	225
	480	350	364	4	4	5779	13000		FCDP6496350	672764Y	346	462	466	3	225
340	480	350	378	4	4	3790	10334		FCD6896350		355	446	465	2.5	230
340	480	350	378	4	4	3790	10334		FCDP6896350	972768Y	355	446	465	2.5	230
370	520	380	409	4	4	4438	11815		FCDP74104380		389	481	500	3	244
