Three-Row Cylindrical Roller Slewing Bearing

1.Product Introduction: With three rows of cylindrical rollers for bearing (two rows of radial rollers + one row of axial rollers), it has extremely strong load-bearing capacity, with a radial load ≥3000kN, suitable for super heavy-duty equipment.
2.Structure Type: It has an integrally forged annular shape. The inner and outer rings have three rows of raceways for cylindrical rollers, with steel cages, heavy-duty metal seals, and the mounting holes are suitable for super-large bolts (above M36).
3.Size Range: Outer ring diameter: 1500 - 6000mm, inner ring diameter: 1350 - 5800mm, height: 100 - 250mm.
4.Material: Inner ring / outer ring: 50Mn, 42CrMo; rolling elements: GCr15, GCr15SiMn (optional for impact resistance); seals: nitrile rubber, fluororubber (optional for oil and high temperature resistance).
5.Application Fields: Ultra-large port cranes, mining excavators, heavy-duty crawler cranes, offshore wind power equipment.
6.Key Inspection Items: Clearance of the three rows of rollers, radial load-bearing capacity, flaw detection of forgings.

Send Inquiry

Download

Product Description

Data Sheet

High-Capacity Three-Row Cylindrical Roller Slewing Bearings for Extreme Heavy-Duty Applications

When your heavy machinery faces extreme loads and harsh environments, the Three-Row Cylindrical Roller Slewing Bearing stands as a robust solution. Designed with three independent rows of cylindrical rollers (two radial, one axial), this bearing delivers unmatched radial load capacity exceeding 3000 kN. Ideal for port cranes, mining excavators, and offshore wind turbines, it combines precision engineering with materials like 42CrMo forged steel to thrive under relentless stress.

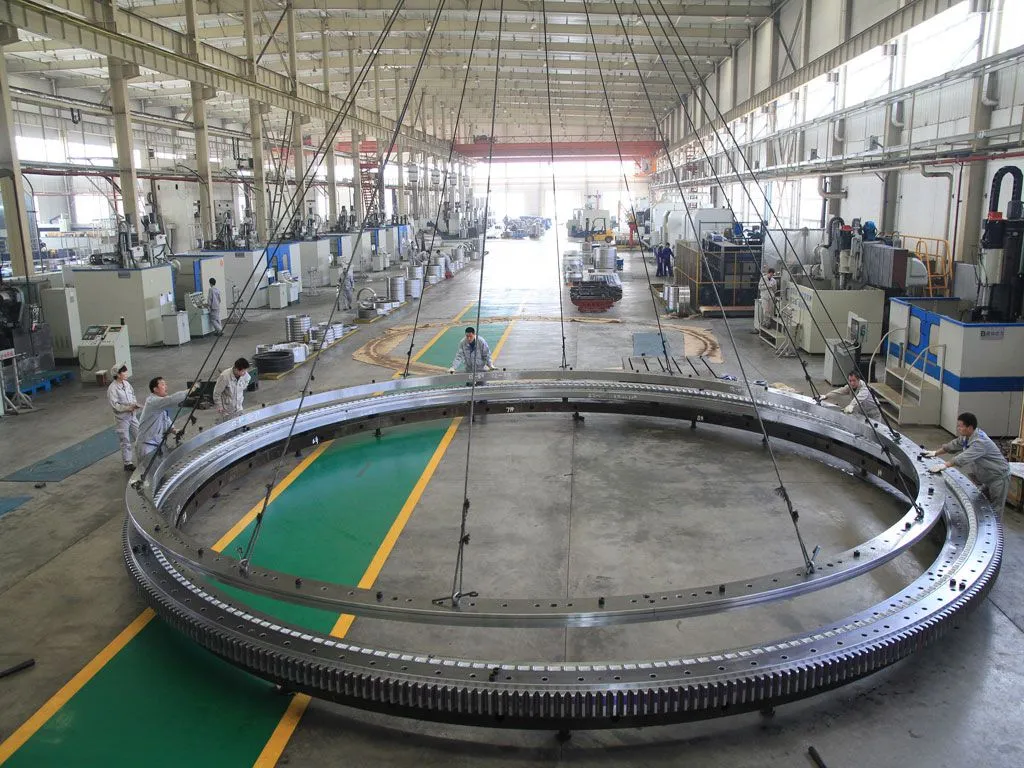

product-1024-768

Key Advantages of Our Three-Row Cylindrical Roller Slewing Bearings

Extreme Load Capacity: Handle axial, radial, and moment loads simultaneously, perfect for equipment lifting 10,000+ tons.
Tailored Durability: Optimized heat treatment (HRC 58-62 hardness) extends service life by 2-3x in abrasive or high-temperature settings.
Rapid Customization: Modular production cuts lead times to 20-25 days for diameters up to 5000mm.
Global Compliance: Pre-certified for ISO 9001, CE, and OSHA standards to accelerate project approvals.

Technical Specifications

Parameter	Details
Size Range	φ1500–6000mm (Customizable up to φ8000mm)
Radial Load Capacity	≥3000 kN (Customizable to 15,000+ kN)
Materials	50Mn/42CrMo forged steel, GCr15 rollers
Precision	ISO P5/P6 grades, ≤0.02mm radial runout
Temperature Resistance	-50°C to 150°C (Ceramic coatings available)

product-1256-742

Where It Excels: Industry Applications

Port Machinery & Shipbuilding

Withstand saltwater corrosion and radial shocks in container cranes. Our bearings feature fluororubber seals and 20% thicker raceways for 100,000+ hour lifespans.

Metallurgy & Mining

Survive 500°C+ heat and dust-laden environments. Custom heat-resistant coatings and ultrasonic flaw detection ensure zero downtime in ladle turrets.

Renewable Energy

Precision-ground rollers and <65 dB noise levels suit offshore wind turbine yaw systems. Integrated gear teeth reduce assembly complexity.

Why Partner With LUOYANG INNO?

30+ Years of Heavy-Duty Expertise

We’ve refined slewing bearings for the world’s toughest industries. Our R&D team uses FEM simulations to optimize load distribution for your exact conditions.

Quality Built Into Every Layer

Material Integrity: Spectrometry-tested steel with ≤0.0015mm roughness.
Triple Inspections: 100% dimensional checks via CMM, 150% overload testing.
Traceability: Mill certificates and hardness maps for every batch.

Supply Chain Agility

1,000+ Stocked SKUs: 48-hour delivery for standard models.
Regional Warehouses: Strategic hubs in Asia, Europe, and North America.

Lifetime Cost Savings

IoT-enabled models predict maintenance needs, while our recycling program reduces TCO by 15% through material recovery.

product-1440-1080

Frequently Asked Questions

Q: Can you customize bearings for combined axial/radial loads in port cranes?

A: Absolutely. Share your load profiles, and we’ll redesign raceway angles and roller diameters to balance forces efficiently.

Q: How do you achieve faster lead times for non-standard sizes?

A: Our modular tooling system adapts existing dies for φ3000–5000mm bearings, slashing production time by 30%.

Q: What certifications do your bearings hold?

A: All bearings meet ISO 9001, CE, and OSHA standards. Ask about DNV GL (marine) or API 6A (oil/gas) compliance.

Q: Do you support installation and maintenance?

A: Yes. We provide on-site alignment checks, IoT-based wear monitoring, and emergency spare parts within 72 hours.

---

Ready to Upgrade Your Equipment’s Backbone?

[Request a Custom Quote] – Share your load, size, and environmental specs.

[Download Technical Datasheet] – Get full material, testing, and CAD details.

Contact Our Engineers Today:

Email: sales@inno-bearing.com

Phone: +86 379 6308 5321

LUOYANG INNO BEARING CO., LTD – Empowering Heavy Industries Since 1993

Three-row Cylindrical Roller Slewing Bearing-with Internal Teeth
d1500～2868mm
Boundary Dimension			Bearing Type	Related Dimension												Gear Parameter					Weight
d	D	T		D1	d1	d2	DwP	H	h	n1	n2	n3	φ1	φ2	φ3	da	b	m	Z	X	kg≈
1500	1910	186	7397/1500	1844	1566	1679	1714	186	20	6	48	48	ZG1/4	33	33	1408	140	16	89	0.5	1315
1605	1995	220	133.40.1800.12K	1943	1657	1760	1801	210	50	6	60	60	M10X1	26	26	1531.6	150	14	110	0.5	1665
1779	2239	231	133.45.2000.03K	2161	1845	1967	2000	219	54	6	60	60	M10X1	39	39	1702.4	160	16	107	0.5	2213
1833	2427	206	7397/1833	2323	1941	2114	2136	193	13	8	40	40	ZG1/4	52	52	1764	140	14	126	1	2538
1890	2620	410	133.90.2245.03	2520	1980	2185	2245	410	90	6	56	56	20	45	45	1800	210	18	101	0.5	6349
1910	2320	160	133.30.2130.03	2255	1990	2107	2130	140	20	4	40	30	M10X1	37.5	37.5	1821.6	110	14	132	0	1551
1940	2385	231	133.45.2150.03	2315	2010	2111	2145	219	53	6	60	28	M10X1	M36	38	1848	107	16	117	0.25	2322
1995	2458	219	134.40.2234.03	2380	2085	2196	2234	210	42	6	60	60	M10X1	39	39	1908	130	18	107	0.5	2536
2019	2479	231	133.45.2240.03K	2401	2085	2207	2240	219	54	8	80	80	M10X1	M36	39	1926.4	160	16	121	0.5	2422
2019	2479	231	133.45.2240.03K1	2395	2085	2207	2240	219	54	8	72	72	M10X1	M36	39	1926.4	160	16	121	0.5	2426
2216	2650	220	7397/2216K	2590	2276	2392	2430	197	35	8	40	56	M10X1	33	M30	2129.8	140	16	135	0	2418
2269	2721	231	133.45.2500.03K4	2655	2341	2466	2500	219	54	8	72	72	M10X1	39	39	2185.2	160	18	122	0.5	2761
-	2718	181	7397/2178	2640	2345	2470	2500	172	42	7	44	44	ZG1/4	39	39	2178	139	18	122	0.5	2316
2279	2721	231	133.45.2500.03K4	2655	2345	2463	2500	219	54	15	90	90	M10X1	M36	39	2185.2	160	18	122	0.5	2517
2279	2721	241	133.45.2500.03K3	2655	2341	2466	2500	229	54	4	72	46	M10X1	39	39	2185.2	170	18	122	0.5	2960
2279	2721	231	133.45.2500.03K5	2655	2341	2466	2500	219	54	4	72	46	M10X1	39	39	2185.2	160	18	122	0.5	2762
2395	2965	270	133.50.2694.03	2880	2510	2648	2694	255	50	8	72	72	M10X1	M39	42	2288	215	22	105	0.5	4001
2398	2900	220	7397/2398	2798	2512	2592	2643	202	30	10	104	112	M10X1	M36	41	2320	180	16	146	0.5	2910
2556	3018	220	133.40.2794.03	2940	2645	2757	2794	210	42	8	72	72	M10X1	39	39	2460	140	20	124	0.5	2904
2558	3032	231	7397/2480	2960	2640	2767	2800	219	12	5	90	90	G1/4	36	36	2480	142	16	156	0.5	3334
2570	3145	288	7397/2570K1	3060	2645	2820	2855	278	54	10	100	98	M10X1	39	39	2484	180	18	139	0.5	4525
2579	3021	231	133.45.2800.03	2955	2645	2767	2800	219	54	8	72	72	M10X1	33	33	2484	160	18	139	0.5	3106
2579	3021	231	133.45.2800.11	2955	2645	2767	2800	219	54	8	72	72	ZG1/4	33	33	2484	160	18	139	0.5	3106
-	2988	176	7397/2506	2910	2653	2752	2790	164	36	8	56	56	ZG1/4	39	39	2506	140	14	180	0.5	2239
-	3160	260	7397/2520	3080	2725	2863	2910	210	50	8	84	84	ZG1/4	39	39	2520	210	24	106	0.5	3954
2638	3100	200	7397/2560	3000	2750	2834	2869	195	30	10	120	120	M10X1	M30	35	2560	170	16	161	0.5	2769
2700	3150	255	7397/2700K	3070	2750	2856	2910	225	40	6	72	72	ZG1/4	32	32	2604	180	20	132	0	3542
2700	3150	255	7397/2700G2	3070	2750	2856	2910	225	40	4	72	40	M14X1.5	32	32	2608.8	180	20	132	0	3550
2700	3150	255	7397/2700G2K	3070	2750	2856	2910	225	40	6	72	72	ZG1/4	32	32	2604	180	20	132	0	3542
2700	3150	255	7397/2700GK1	3070	2755	2856	2910	225	40	4	80	76	M14X1.5	38	38	2608.8	180	20	132	0	3393
2700	3150	255	7397/2700GK2	3070	2750	2856	2910	225	40	6	72	72	ZG1/4	33	33	2604	180	20	132	0	3542
2700	3150	255	7397/2700GK3	3070	2750	2856	2910	225	40	4	2	8	N14X1.5	M30	32	2608.8	180	20	132	0	3699
2750	3185	201	133.35.2956.03K1	3104	2835	2918	2956	180	38	10	84	84	M10X1	M36	39	2672	162	16	168	0.5	2697
2751	3185	201	133.35.2956.03K1	3104	2835	2918	2956	180	38	10	96	96	M10X1	M36	39	2664	162	18	149	0.5	2691
2751	3185	201	133.35.2956.03K1	3104	2835	2918	2956	180	38	10	84	84	M10X1	M36	39	2664	162	18	149	0.5	2729
2751	3215	200	133.35.2956.03K2	3104	2835	2918	2956	185	38	10	96	96	M10X1	M36	39	2664	161	18	149	0.5	2691
2751	3215	200	133.35.2956.03K3	3104	2835	2918	2956	185	38	10	84	84	M10X1	M36	39	2664	161	18	149	0.5	2691
2751	3215	200	133.35.2956.03K4	3104	2835	2918	2956	185	38	10	84	84	M10X1	M36	39	2672	161	16	149	0.5	2745
-	3185	280	134.50.2958.03	3104	2835	2905	2958	260	38	15	84	84	M10X1	M36	39	2664	242	18	168	0.5	4104
2850	3420	268	7397/2850	3325	2950	3096	3142	258	50	10	80	80	ZG1/4	45	45	2736	213	24	169	0.5	5028
2860	3410	264	7397/2860	3315	2965	3107	3150	248	53	6	48	48	10	M36	M36	2768.4	169	18	115	0.5	4822
2868	3432	270	133.50.3150.03	3342	2958	3103	3150	258	50	8	60	60	M10X1	39	39	2760.54	180	20	155	0.4	5174
2868	3432	270	133.50.3150.03K	3342	2958	3103	3150	258	65	11	110	110	M10X1	M36	39	2768	180	20	139	0.5	4820
2868	3432	270	133.50.3150.03K1	3342	2958	3103	3150	258	65	8	72	72	M10X1	45	45	2768	180	20	139	0.5	4843
2868	3432	270	133.50.3150.03K2	3342	2958	3103	3150	258	65	11	110	110	M10X1	39	39	2768	180	20	139	0.5	4820
2868	3432	270	133.50.3150.11K	3342	2958	3103	3150	258	50	8X2	60	60	M10X1	39	39	2760.54	180	20	139	0.5	5174
2868	3432	270	133.50.315011K1	3342	2958	3103	3150	258	50	12	72	72	ZG1/4	45	45	2754.44	180	18	154	0.5	5019
2868	3432	270	133.50.3150.12K	3342	2958	3103	3150	258	50	8	60	60	M10X1	39	39	2760.54	180	20	139	0.5	5174
2868	3432	270	133.50.3150.12K1	3342	2958	3103	3150	258	50	8	60	60	M10X1	39	39	2754.44	180	18	154	0.5	5174
2868	3432	270	134.50.3150.11K	3342	2958	3103	3150	258	50	6	72	72	ZG1/4	45	45	2750.66	180	22	126	0.5	5014
2896	3369	220	133.40.3145.03	3291	2979	3108	3145	210	42	10	80	80	M10X1	39	39	2800	154	20	414	0.5	3595
2896	3419	268	134.50.3173.03	3344	2979	3129	3175	258	65	12	108	108	M10X1	39	39	2800	170	20	141	0.5	4435
-	3788	233	133.45.3550.04	3710	3385	3512	3550	221	54	20	80	80	M12	39	39	3190.6	179	22	146	0.5	4272
3268	3832	270	133.45.3560.03	3742	3358	3504	3560	258	65	12	120	120	M10X1	M36	39	3168	180	20	159	0.5	5474
3268	3832	270	133.50.3550.03K	3742	3358	3474	3550	258	65	8	72	72	M10X1	46	46	3168.386	180	18	177	0.5	5450
-	3832	192	133.36.3610.03	3754	3448	3585	3610	180	12	8月16日	96	96	M10X1	39	39	3302.4	148	16	208	0	3461
3296	3779	260	133.50.3550.03K1	3701	3379	3504	3550	250	46	18	108	108	M10X1	39	39	3200	190	20	159	0.5	4485
-	4270	298	7397/3576	4175	3800	3948	4000	288	10	12	72	72	M10X1	45	45	3576	233	24	150	0.5	7852
3540	3945	203	133.40.3740.03	3870	3610	3718	3743	172	42	7	84	84	M10X1	33	33	3440	156	20	173	1	2802
-	4451.35	317.5	133.60.4130.03	4350	3886	4043.5	4132	306	50.8	11	110	110	M10X1	48	48	3642.74	266.7	25.4	143	0.5	10136
3820	4500	274	7397/3900	4408	4005	4167	4210	264	44	8	80	80	M10X1	45	45	3804	230	20	191	0.5	6895
3735	4238	215	7397/3630	4160	3835	3975	4014	210	50	8	96	96	M10X1	39	39	3630	164	22	166	0.5	4535
4190	5000	430	3-945G2	4880	4310	4482	4570	400	175	12	72	66	M10X1	44	44	4068	240	25	164	0.35	14204
