/ Thrust ball bearings

Axial Ball Thrust Bearing

1.Product Introduction: Mainly designed to bear axial loads, with extremely weak radial load-bearing capacity, low rotational friction coefficient, suitable for light and medium axial positioning scenarios.
2.Structure Type: Shaft washer (tightly fitted to the shaft) + housing washer (tightly fitted to the bearing housing) + single-row steel balls + cage, open type (optionally with nitrile rubber dust cover).
3.Size Range: Inner diameter: 10 - 300mm, outer diameter: 30 - 400mm, height: 8 - 50mm.
4.Material: Shaft washer: GCr15/GCR15SIMN/20Cr2Ni4A, housing washer: GCr15/GCR15SIMN/20Cr2Ni4A, rolling elements (steel balls): GCr15/GCR15SIMN, cage: stamped steel / brass.
5.Accuracy: Conventional P0/P6 grades, precision models are of P5 grade.
6.Application Fields: Thrust end of machine tool spindles, axial support of small motors, water pumps, light industrial equipment.
7.Key Inspection Items: Flatness of shaft washer and housing washer, clearance between steel balls, axial load-bearing capacity.

Send Inquiry

Download

Product Description

Data Sheet

High-Temperature & Heavy-Load Axial Ball Thrust Bearings for Metallurgical Equipment

Custom-Engineered Solutions | 150℃ Resistance | 15-Day Fast Delivery Guarantee

When your equipment demands precision under extreme conditions, our axial ball thrust bearings deliver unmatched performance. Designed to handle axial loads up to 450kN while operating in temperatures up to 150℃, these bearings are the backbone of heavy industries like steel production and mineral processing. With 30+ years of engineering expertise, we optimize every component – from heat-treated alloy steel races to ultra-smooth ceramic balls – for reliability when failure isn’t an option.

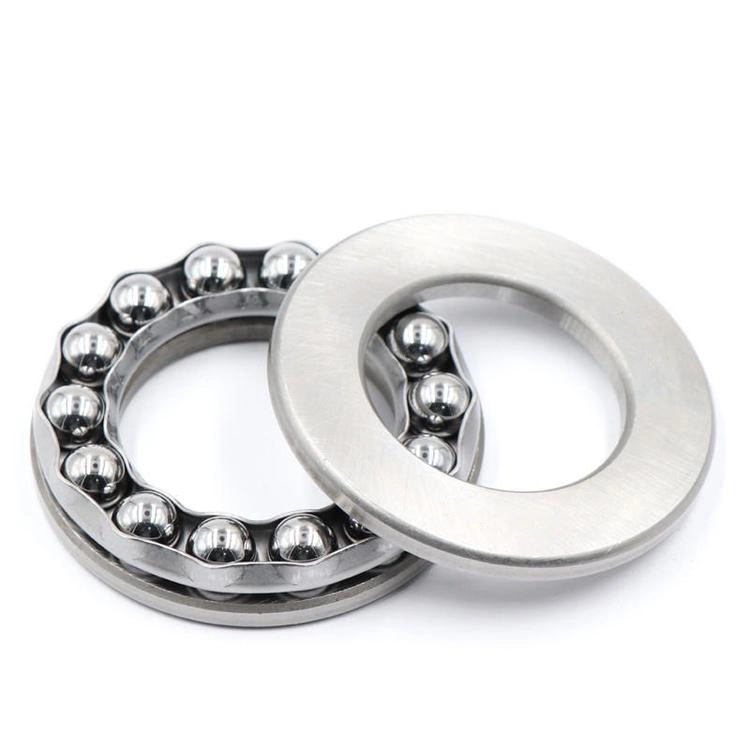

product-750-750

Why Our Thrust Ball Bearings Outperform?

Extreme Temperature Mastery: Proprietary ZGCr15SiMn alloy retains hardness at 500℃, preventing deformation in smelting furnace drives
Heavy-Load Resilience: 30% higher axial load capacity vs. standard bearings through precision-ground raceways
Silent Operation: <35dB noise levels via polymer-reinforced cages, ideal for medical imaging systems
Global Compliance: ISO 15242-1 tested, REACH/ROHS compliant materials for EU/NA/Asian markets

Parameter	Specification
Max Axial Load	450 kN
Temperature Range	-50℃ to +150℃
Precision Grade	P4 (ISO 492)
Standard OD Range	50mm – 5000mm

Customized for Your Industry's Demands

Wind Turbine Systems

StormShield series withstands salt spray corrosion (HVOF coating)
Integrated IoT sensors predict maintenance needs 3 months in advance

Medical Equipment

Non-magnetic variants with <20dB operation for MRI gantries
Cleanroom-packaged bearings meet FDA 21 CFR Part 820

Metallurgical Machinery

Thermal expansion compensation in continuous casting rollers with axial ball thrust bearings
15-day lead time for φ3000mm+ custom sizes

Our Proven Development Process

1. Requirement Analysis – Share load/speed/temperature needs

2. 3D Simulation – Finite element analysis for stress distribution

3. Prototype Testing – 500-hour accelerated lifespan validation

4. Bulk Production – CNC grinding with ±0.001mm accuracy

Trusted by Global Leaders

99.9% defect-free rate via 12-stage QC:
Material spectroscopy
100% dimensional verification
72-hour salt spray testing

48-hour emergency shipping from regional hubs in:
Germany (EU)
Texas (North America)
Singapore (ASEAN)

FAQ

Q: Can you customize bearings for high-radiation medical environments?

A: Yes! Our RadShield series uses lubricant-free ceramic hybrids resistant to 5mRad radiation.

Q: How do you achieve 15-day lead times for custom sizes?

A: Our modular production system combines in-house machining (+ heat treatment) with pre-qualified material stocks.

Q: What certifications do your thrust ball bearings have?

A: All bearings include material test reports and ISO 15242-1 vibration certificates. Medical grades add FDA/ISO 13485 documentation.

Contact Us

Need axial ball thrust bearings That Withstand Your Toughest Conditions?

Email our engineers at sales@inno-bearing.com with your:

1) Operating temperature range

2) Peak axial load requirements

3) Preferred delivery timeline

Receive custom specifications and pricing within 24 working hours.

P.S. Ask about our predictive maintenance program – reduce unplanned downtime by 60% with smart bearing health monitoring!

d 10～35mm
Overall Dimensions						Rated Load		Limiting Rotational Speed		Bearing Designation		Minimum Load A	Mounting Dimensions			Weight
d	d1min	D	D1max	H	rnin	Dynamic Load C	Static Load Co	Grease	Oil	Current Model	Original Model	Minimum Load A	da	Da	ramax	Weight
mm						kN		r/min					mm			kg
10	11	24	24	9	0.3	10	13.3	7000	9500	51100	8100	0.002	19	15	0.3	0.02
10	12	26	26	11	0.6	12.7	16.2	6000	8000	51200	8200	0.003	20	16	0.6	0.03
12	13	26	26	9	0.3	10.3	14.5	7000	9500	51101	8101	0.002	21	17	0.3	0.022
12	14	28	28	11	0.6	13.2	18.1	6000	8000	51201	8201	0.003	22	18	0.6	0.035
15	16	28	28	9	0.3	10.5	13.3	6300	8500	51102	8102	0.003	23	20	0.3	0.024
	17	32	32	12	0.6	14.2	15.8	5300	7000	51202	8202	0.005	23	20	0.3	0.044
	15.2	32	32	12	0.6	14.2	15.8	5300	7000	51202/YB2	8202K	0.005	25	22	0.6	0.0451
17	18	30	30	9	0.3	10.8	13.4	6300	8500	51103	8103	0.003	25	22	0.3	0.0242
17	19	35	35	12	0.6	17.2	26.1	5300	7000	51203	8203	0.006	28	24	0.6	0.053
20	21	35	35	10	0.3	13.4	18.6	5600	7500	51104	8104	0.005	29	26	0.3	0.0372
20	22	40	40	14	0.6	22.3	35.6	4500	6000	51204	8204	0.009	32	28	0.6	0.08
25	26	42	42	11	0.6	17.4	27.6	4800	6300	51105	8105	0.007	35	32	0.6	0.06
	25.2	47	47	15	0.6	27.8	47.5	4000	5300	51205	8205	0.018	38	34	0.6	0.112
	27	52	52	18	1	35.7	52.3	3400	4500	51305	8305	0.026	41	36	1	0.18
	27	60	60	24	1	55.5	85.5	2600	3600	51405	8405	0.053	46	39	1	0.34
30	32	47	47	11	0.6	18.1	31.8	4500	6000	51106	8106	0.009	40	37	0.6	0.07
	32	52	52	16	0.6	28.1	45.1	3600	4800	51206	8206	0.02	43	39	0.6	0.137
	32	60	60	21	1	428	62.2	2800	3800	51306	8306	0.046	48	42	1	0.252
	32	70	70	28	1	72.7	119	2200	3200	51406	8406	0.084	54	46	1	0.53
35	37	52	52	12	0.6	21.2	38.2	4300	5600	51107	8107	0.014	45	42	0.6	0.0836
	35.2	62	62	18	1	39.2	63.7	3200	4300	51207	8207	0.04	56	46	1	0.22
	37	68	68	24	1	55.4	83.6	2400	3400	51307	8307	0.072	55	48	1	0.39
d 35～65mm
Overall Dimensions						Rated Load		Limiting Rotational Speed		Bearing Designation		Minimum Load A	Mounting Dimensions			Weight
d	d1min	D	D1max	H	rnin	Dynamic Load C	Static Load Co	Grease	Oil	Current Model	Original Model	Minimum Load A	da	Da	ramax	Weight
mm						kN		r/min					mm			kg
35	37	80	80	32	1.1	87	148	1800	2600	51407	8407	0.17	62	53	1	0.82
40	42	60	60	13	0.6	26.9	47.5	3800	5000	51108	8108	0.027	52	48	0.6	0.12
	42	68	68	19	1	47	93.1	2800	3800	51208	8208	0.055	57	51	1	0.27
	42	78	78	26	1	69.2	106	2000	3000	51308	8308	0.103	63	55	1	0.426
	42	90	9	36	1.1	112	194	1700	2400	51408	8408	0.275	70	60	1	1.18
45	47	65	65	14	0.6	27	54.2	3400	4500	51109	8109	0.027	57	53	0.6	0.15
	47	65	65	14	0.6	31.6	108	3400	4500	51109M	8109	0.027	57	53	0.6	0.16
	47	73	73	20	1	47.8	81	2600	3600	51209	8209	72	62	56	1	0.32
	47	85	85	28	1	75.8	133	1900	2800	51309	8309	0.148	69	61	1	0.665
	47	100	100	39	1.1	141	228	1600	2200	51409	8409	0.442	78	67	1	1.64
50	52	70	70	14	0.6	27.1	59.9	3400	4500	51110	8110	0.032	62	58	0.6	0.16
	52	78	78	22	1	48.5	101	2400	3400	51210	8210	0.097	67	61	1	0.375
	52	95	95	31	1.1	96.6	164	1800	2600	51310	8310	0.266	77	68	1	1
	52	110	110	43	1.5	160	295	1500	2000	51410	8410	0.589	86	74	1.5	1.99
55	57	78	78	16	0.6	34.4	74.1	3000	4000	51111	8111	0.068	69	64	0.6	0.232
	57	90	90	25	1	67.6	127	2000	3000	51211	8211	0.168	76	69	1	0.61
	57	105	105	35	1.1	114.5	198	1600	2200	51311	8311	0.393	85	75	1	1.34
	57	120	120	48	1.5	183	342	1300	1800	51411	8411	0.834	94	81	1.5	2.6
60	62	85	85	17	l	40.3	87	2600	3600	51112	8112	0.07	75	70	1	0.29
	62	95	95	26	1	73.6	141	1900	2800	51212	8212	0.207	81	74	1	0.69
	62	110	110	35	1.1	118	208	1600	2200	51312	8312	0.462	90	80	1	1.43
	62	130	130	51	1.5	201	380	1200	1700	51412	8412	1.326	102	88	1.5	3.3
65	67	90	90	18	1	41.7	103	2400	3400	51113	8113	0.099	80	75	1	0.34
65	67	100	100	27	1	74.9	151	1800	2600	51213	8213	0.226	86	79	1	0.77
