/ Three-row cylindrical roller slewing bearings

Three-Row Roller Slewing Bearing

1.Product Introduction: The same as "Triple-row Roller Slewing Bearings". It has a triple-row roller bearing structure, is suitable for super heavy loads, and has excellent anti-overturning moment performance.
2.Structure Type: It has an integrally forged annular shape, with three rows of raceways + three rows of rollers, steel cages, heavy-duty seals, and the mounting holes are suitable for large bolts.
3.Size Range: Outer ring diameter: 1500 - 6000mm, inner ring diameter: 1350 - 5800mm, height: 100 - 250mm.
4.Material: Inner ring / outer ring: 50Mn, 42CrMo; rolling elements: GCr15 bearing steel, GCr15SiMn (optional for impact resistance); seals: nitrile rubber, fluororubber (optional for oil and high temperature resistance).
5.Application Fields: Large port cranes, mining excavators, heavy-duty crawler cranes, offshore wind power.
6.Key Inspection Items: Consistency of roller clearance, anti-overturning moment, flaw detection of forgings.

Send Inquiry

Download

Product Description

Data Sheet

Three-Row Roller Slewing Bearings | Heavy-Load, High-Temperature Resistance for Metallurgical & Port Equipment

Max Load Capacity: 45,000 kN | Temperature Tolerance: -30°C to +150°C | Precision Grade: P6

Precision Engineering for Extreme Conditions

When your heavy machinery faces axial, radial, and tipping moment loads simultaneously, Three-Row Roller Slewing Bearings deliver unmatched stability. Designed for metallurgical rolling mills, port cranes, and blast furnace equipment, these bearings combine three rows of rollers with high-purity 42CrMo steel for 150°C operational tolerance. Unlike conventional designs, our modular assembly reduces installation complexity while maintaining P4-grade precision.

Key Features:

Triple-Row Roller Design: Distributes heavy loads (up to 45,000 kN static) across multiple contact points.
High-Temperature Resilience: Vacuum-degassed steel retains structural integrity at 150°C.
Corrosion-Resistant Seals: Fluororubber options protect against saltwater, dust, and humidity.

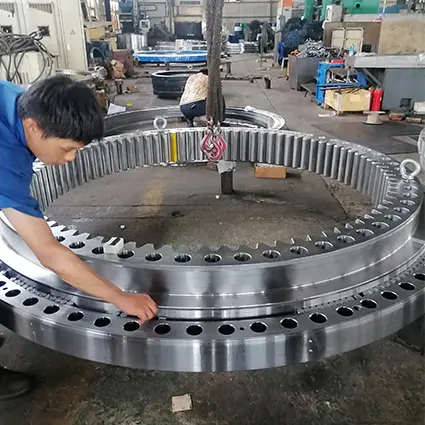

product-425-425

Technical Specifications

Parameter	Specification
Outer Diameter Range	1500 mm – 6000 mm (customizable)
Material Hardness	50Mn/42CrMo (55-60 HRC)
Dynamic Load Capacity	15,000 kN (minimum)
Lifespan	100,000+ hours under continuous load
Certifications	ISO 9001, CE, FEM 9.511 compliant

Built for Demanding Industries

1. Port Cranes & Shipyard Equipment

Our Three-Row Roller Slewing Bearings withstand salt spray corrosion (1,000+ hours salt spray resistance) and cyclic loading in container handling. Integrated gear teeth options simplify drive system integration.

2. Metallurgical Rolling Mills

Engineered for 200°C environments with optional water-cooled raceways, these bearings reduce downtime in steel production lines.

3. Offshore Wind Turbines

Precision-ground rollers ensure smooth rotation under variable wind loads, with IoT-enabled wear monitoring for predictive maintenance.

Why Choose Our Three-Row Roller Slewing Bearings?

30+ Years of Heavy-Load Expertise: Proprietary designs tested in 500+ global projects.
Fast Customization: Receive φ3000mm non-standard bearings in 15-20 days (70% faster than industry averages).
Dual-Supply Flexibility: 1,000+ standard models ship in 48 hours; custom orders prioritized.

product-1256-742

Rigorous Quality Assurance

Every Three-Row Roller Slewing Bearing undergoes:

1. Material Screening: Ultrasonic testing for impurities ≤0.002%.

2. In-Process Alignment: Laser-guided checks ensure ≤0.05mm radial runout.

3. Final Load Testing: Simulated 100,000 operational cycles validate lifespan.

Global Procurement Made Simple

Standard Bearings

Browse our [online catalog] to filter by size, load, or temperature rating.

Custom Solutions

Submit your requirements via our [design form]. Engineers respond within 4 hours with CAD drawings and lead times.

Lifetime Support

Pre-Sales: Free load analysis for legacy equipment retrofits.
Post-Sales: 24/7 remote diagnostics and IoT-driven lubrication alerts.

Trusted Worldwide

Regional warehouses in the EU, North America, and Asia ensure compliance with local standards (DIN 18800, ISO 6336).

---

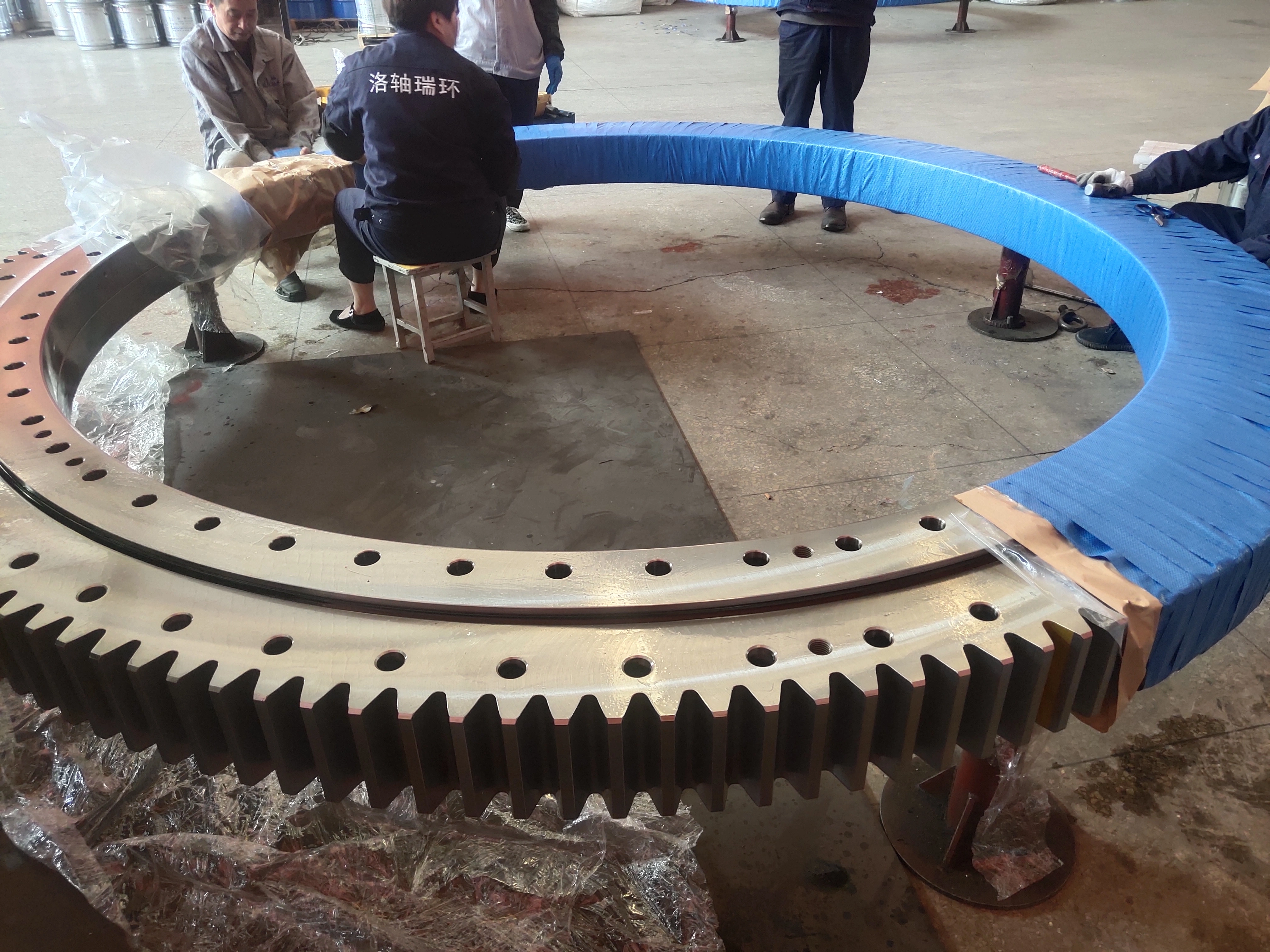

product-4032-3024

FAQ

Q1: Can these bearings handle 500°C temperatures in steel plants?

Yes. Our water-cooled raceway option maintains P4 precision even in 500°C environments.

Q2: Do you provide corrosion-resistant coatings for port cranes?

Absolutely. Fluororubber seals and zinc-nickel coatings offer 1,200-hour salt spray resistance.

Q3: How fast can you deliver a φ4000mm custom bearing?

18-22 days post-design approval, including heat treatment and precision grinding.

Q4: What certifications do your bearings hold?

ISO 9001, CE, and FEM 9.511. Industry-specific certs available upon request.

---

Optimize Your Heavy Machinery Today

[Get Standard Bearing Pricing & Availability in 4 Hours]

[Consult Engineers for Custom Designs]

Contact Our Team: sales@inno-bearing.com

Three-row Cylindrical Roller Slewing Bearing-without Teeth
d670～2579mm
Boundary Dimension			Bearing Type	Related Dimension												Weight
d	D	T		D1	d1	d2	DwP	H	h	n1	n2	n3	φ1	φ2	φ3	kg≈
670	1000	163	130.25.827.03	948	721	810	834	138	25	6	38	38	M10X1	26	M24	408
736	1064	182	130.32.900.03	1020	780	870	900	142	40	6	36	36	M10X1	22	22	507
770	1100	163	130.25.933.03	1048	822	909	935	138	30	6	36	36	M10X1	M24	26	455
1064	1550	278	5397/1064	1478	1136	1360	1300	278	65	6	38	38	ZG1/4	36	36	1672
1405	1795	220	130.40.1600.03	1743	1457	1558	1600	170	30	12	36	36	ZG1/4	26	26	1341
1605	1995	220	130.40.1800.03	1943	1657	1760	1801	210	50	12	36	36	ZG1/4	26	26	1516
1640	2020	141	5397/1640	1950	1710	1868	1820	1868	29	6	48	48	M10X1	33	33	964
1655	2020	136	5397/1655	1950	1725	1872	1836	123	13	10	48	48	M8	33	33	845
1655	2020	136	5397/1655K	1950	1725	1872	1836	123	13	10	40	40	M10X1	33	33	848
1779	2221	231	130.45.2000.03	2155	1885	1967	2000	219	54	6	36	36	M10X1	33	33	1945
1885	2454	315	5397/1885	2445	1985	2310	2215	251	9	8	60	60	G1/4	52	52	4524
2000	2500	190	5397/2000	2400	2090	2300	2240	176	14	6	42	42	M10X1	45	45	2048
2019	2461	231	130.45.2240.03K	2395	2085	2207	2240	219	54	8	40	40	M10X1	33	33	2146
2135	2555	160	5397/2135	2480	2215	2400	2346	128	12	5	72	72	M10X1	40	40	1488
2135	2555	214	5397/2135K	2480	2215	2400	2346	202	20	5	50	50	M10X1	40	40	2013
2190	2650	154	5397/2190	2560	2280	2446	2400	140	14	6	50	50	ZG1/4	39	39	1600
2190	2650	170	5397/2190K	2560	2280	2454	2406	156	14	6	60	60	ZG1/4	33	39	1742
2279	2721	231	130.45.2500.04	2655	2345	2555	2500	177	54	8	60	60	ZG1/8	33	33	2488
2279	2721	231	130.45.2500.04K	2655	2345	2463	2500	219	54	5	72	72	ZG1/4	33	33	2310
2279	2721	231	130.45.2500.04K1	2655	2345	2555	2500	177	12	8	72	72	ZG1/8	33	33	2486
2279	2721	231	130.45.2500.12	2655	2345	2555	2500	177	54	8	72	72	ZG1/8	39	33	2480
2360	2880	248	5397/2360	2800	2440	2680	2612	196	52	10	72	72	ZG1/4	33	39	3215
2422	2805	158	5397/2422	2740	2488	2600	2625	128	30	8	60	60	ZG1/4	52	33	1561
2450	3087	340	5397/2450	2983	2554	2814	2743	290	50	24	52	52	G1/4	33	52	5774
2460	2805	132	5397/2460	2740	2525	2610	2638	107	25	12	60	60	ZG1/4	51	33	1162
2470	3070	220	130.40.2790.03	2960	2580	2740	2794	211	50	8	48	48	ZG1/4	45	51	3535
2470	2940	200	5397/2470	2860	2550	2758	2706	186	14	12	48	48	ZG1/4	45	45	2485
2470	3020	213	5397/2470K	2920	2570	2798	2787	173	16	8	60	60	ZG1/4	34	45	3122
2508	2900	180	130.36.2700.03	2836	2578	2750	2703	140	10	8	48	48	G1/4	34	34	1810
2508	2900	180	130.36.2700.03K	2836	2578	2750	2703	140	10	8	72	72	G1/4	34	34	1785
2508	2900	180	130.36.2700.04	2836	2578	2750	2703	140	10	8	72	72	G1/4	33	34	1784
2579	3021	231	130.45.2800.03	2955	2645	2866	2800	177	12	8	72	72	ZG1/4	33	33	2750
2579	3021	231	130.45.2800.03k	2955	2645	2767	2800	219	54	8	72	72	M10X1	33	33	2751
2579	3021	231	130.45.2800.04	2955	2645	2866	2800	177	12	8	72	72	ZG1/4	33	33	2750
2579	3021	231	130.45.2800.12	2955	2645	2855	2800	177	54	8	72	72	ZG1/4	33	33	2706
2839	3266	158	5397/2839	3200	2905	3058	3082	149	30	9	68	68	ZG1/4	33	33	2016
2839	3266	195	5397/2839K	3200	2905	3035	3059	184	45	11	68	68	ZG1/4	33	33	2447
2868	3432	270	130.50.3150.12K	3342	2958	3103	3150	258	50	8	72	72	M10X1	45	45	4900
2868	3432	270	130.50.3150.12K1	3342	2958	3103	3150	258	50	5	72	72	ZG1/8	45	45	4900
2868	3432	270	130.50.3150.12K2	3342	2958	3213	3150	205	65	8	72	72	M10X1	45	45	4400
2992	3376	155	130.25.3186.03	3310	3057	3162	3186	145	30	8	60	60	ZG1/4	33	33	2143
3212	3694	210	130.40.3460.03	3616	3290	3427	3460	201	9	9	72	72	ZG1/4	39	39	3385
3268	3832	270	130.50.3550.03	3742	3358	3613	3550	205	65	8	72	72	M10X1	45	45	4700
3268	3832	270	130.50.3550.03K	3742	3558	3613	3550	205	65	8	72	72	M10X1	45	45	4721
3268	3832	270	130.50.3550.03K1	3742	3558	3613	3550	205	65	8	72	72	M10X1	45	45	4721
3268	3832	270	130.50.3550.03K2	3742	3558	3613	3550	205	65	8	72	72	ZG1/4	45	45	4721
3268	3832	270	130.50.3550.04	3742	3558	3613	3550	205	65	8	72	72	M10X1	45	45	4700
3268	3832	270	130.50.3550.12	3742	3558	3613	3550	205	65	8	72	72	M10X1	45	45	4700
3312	3840	220	130.40.3550.03	3745	3390	3602	3550	170	50	10	60	60	M10X1	39	39	4163
3312	3824	220	130.40.3550.03K	3746	3390	3602	3550	170	50	11	66	66	M10X1	39	39	4024
3370	3832	192	5397/3370	3754	3448	3646	3589	180	44	8	96	96	M10X1	39	39	3033
3560	4100	275	5397/3560	4010	3660	3908	3842	260	15	9	72	72	ZG1/4	45	45	5520
3650	4300	355	3-931G	4210	3750	3850	3950	355	0	18	90	90	M16X1.5	48	48	9503
3735	4290	268	5397/3735	4200	3825	3977	4025	258	65	9	60	60	G1/4	45	45	5865
3998	4500	254	130.45.4240.03	4420	4078	4302	4240	197	57	10	80	80	M10X1	45	45	5154
4168	4717	276.225	130.50.4435.03	4625	4260	4215	4435	206.4	18.2	6	72	72	ZG1/4	45	45	6414
4218	4782	270	130.50.4500.04	4692	4308	4454	4500	258	65	8	80	80	M10X1	45	45	6942
4235	4850	268	5397/4235	4700	4325	4560	4500	258	65	11	68	68	ZG1/4	45	45	7178
4680	5333	305	5397/4680	5136	4774	5023	4950	293	58	18	90	90	ZG1/4	45	45	9772
