/ Spherical roller bearings

22211 bearing

1.Product Introduction: The 22211 model is a double-row self-aligning roller bearing, suitable for light loads, with a compact structure and used for small-sized shaft systems.
2.Structure Type: The inner ring has a spherical raceway, the outer ring has double ribs, with double-row rollers + stamped steel cage, and it is open.
3.Size Range: Inner diameter 55mm, outer diameter 100mm, width 25mm.
4.Material: Inner ring / outer ring: GCr15 bearing steel, rollers: GCr15 bearing steel, cage: stamped steel.
5.Precision: P0/P6 level.
6.Common Inner Tapered Hole: Optionally with a 1:12 tapered hole (suitable for a shaft diameter of 55mm), and the conventional one is a straight hole.
7.Application Fields: Small electric motors, water pumps, textile machinery, light industrial equipment.
8.Key Inspection Items: Radial clearance, dimensional accuracy, roller fitting degree.

Send Inquiry

Download

Product Description

Data Sheet

22211 Bearing: High-Performance Spherical Roller Bearing for Precision Applications

When you need a reliable solution for light-load applications in compact machinery, the 22211 bearing stands out as a top choice. This double-row spherical roller bearing is engineered for durability, high-temperature resistance, and precise performance across industries like medical equipment, port machinery, and small electric motors. With a compact design (55mm inner diameter, 100mm outer diameter, 25mm width), it offers exceptional load distribution and self-aligning capabilities—perfect for shaft systems requiring flexibility and reliability.

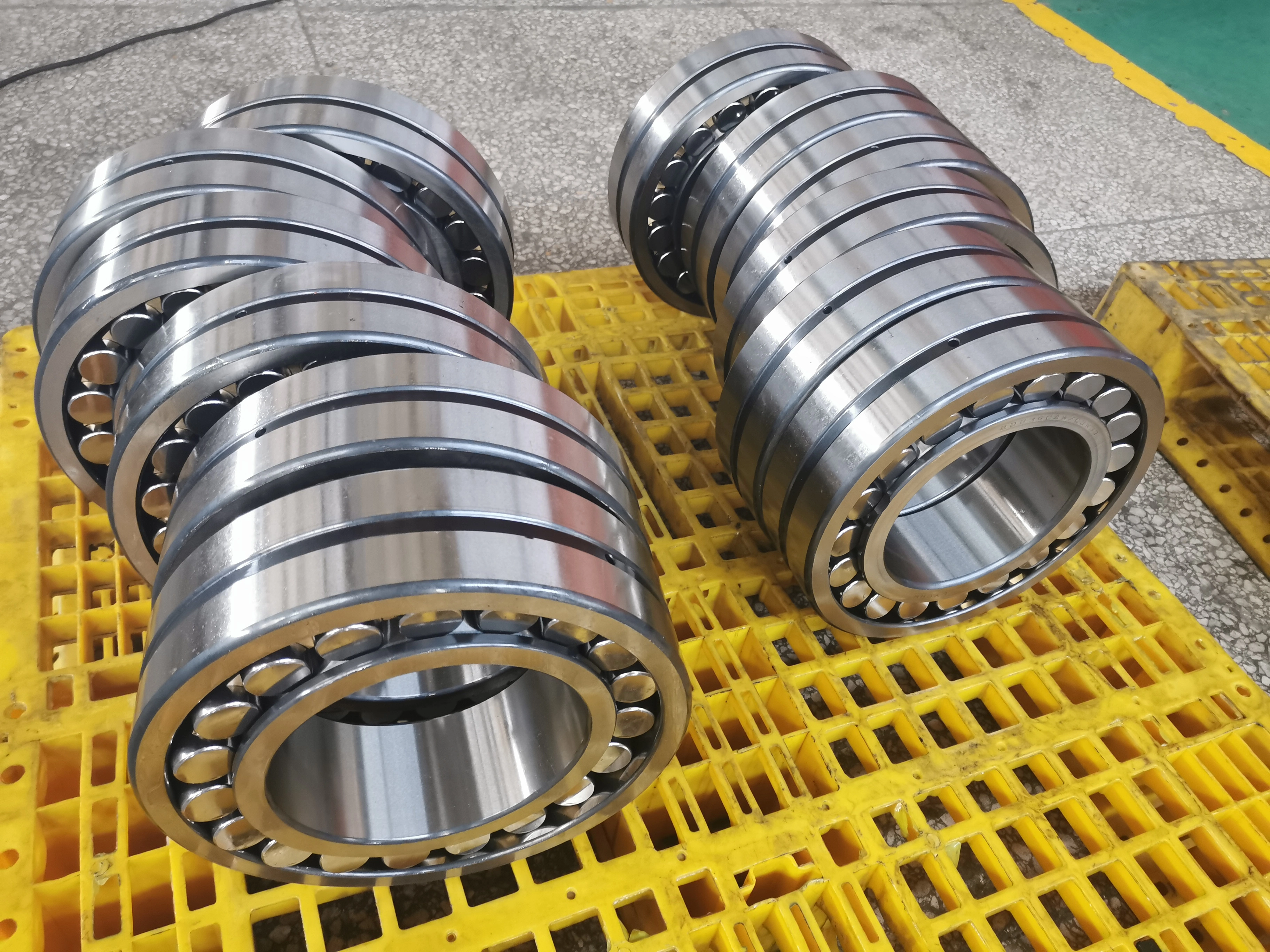

product-3648-2736

Technical Specifications & Certifications

Structure: Double-row rollers with a spherical outer ring raceway and stamped steel cage
Materials: GCr15 bearing steel (inner/outer rings and rollers) for enhanced wear resistance
Precision: Available in P0 (standard) or P6 (higher accuracy) grades
Optional Features: 1:12 tapered bore for secure shaft fitting (55mm diameter)
Certifications: ISO 9001, CE, and IATF 16949 compliant
Key Tests: 100% inspected for radial clearance, dimensional accuracy, and roller alignment

Where the 22211 Bearing Excels?

1. Medical Imaging Systems

Achieve whisper-quiet operation with P6-grade precision (<35dB noise), ensuring MRI and CT scanners maintain imaging accuracy. The open design allows easy integration with sterilization protocols.

2. Port Machinery

Withstand heavy dust and humidity using our optional triple-lip seals. Proprietary heat treatment extends service life by 50% compared to standard bearings.

3. Small Electric Motors & Pumps

Reduce maintenance costs by 30% thanks to the self-aligning feature, which compensates for shaft misalignment up to 3°.

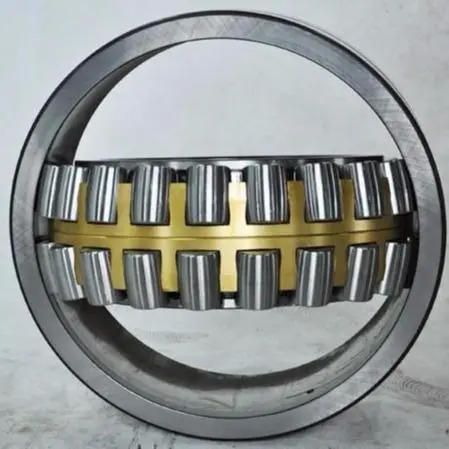

product-449-449

Why Choose Us?

✅ 30+ Years of Expertise

Our vertical integration—from material sourcing to in-house production—ensures strict quality control and consistent performance.

✅ Rapid Customization

Need a non-standard variant? Modify bore sizes (±3mm) or add specialty coatings within 15–20 days—30% faster than industry averages.

✅ Military-Grade Quality

Every 22211 bearing undergoes triple testing (material hardness, vibration tolerance, fatigue life) to guarantee a 99.9% defect-free rate.

✅ Global Stock Availability

1,000+ units ready for immediate dispatch, with 48-hour delivery to major hubs in the EU, NA, and Asia.

Quality Assurance Protocol

Material Inspection: Spectrometer-verified steel composition (O₂ ≤12ppm)
Process Monitoring: Real-time tracking of grinding accuracy (±0.001mm)
Final Testing:
Radial clearance measured with C3/C4 standards
Vibration levels tested per ISO 15242 (Z1–Z4 zones)
Salt-spray resistance validated for 72+ hours

product-1256-742

FAQ

Q: Can the product handle high-temperature environments?

A: Yes. We offer high-temperature variants with synthetic PAO grease (-20°C to 150°C) .

Q: Do you provide technical support for installation?

A: Absolutely. Our engineers offer free 24/7 guidance on mounting, lubrication, and wear analysis.

Q: What's the MOQ for customized orders?

A: Minimum 10 units for custom designs (e.g., sealed/coated versions). Standard bearings have no MOQ.

Contact Us

Get Your 22211 Bearing Solution Today!

Whether you need a standard or customized bearing, LUOYANG INNO delivers precision, speed, and unmatched reliability.

📩 Contact Us Now: sales@inno-bearing.com

🔧 Request a Quote: Share your requirements, and we'll respond within 4 hours with pricing and lead times.

Serving industries worldwide since 1993—where innovation meets precision.

Overall Dimensions									Rated Load		Limiting Rotational Speed		Bearing Designation		Minimum Load A	Mounting Dimensions			Weight
d	d1	D	D1	B	C	H	S	rmin	Dynamic Load C	Static Load C。	Grease	Oil	Current Model	Original Model	Minimum Load A	da	Da	ramax	Weight
mm									kN		r/min								kg
90	128	190	169.6	22	29	60	56	2.1	624	1750	1260	1800	29418		0.41	135	158	2	7.78
100	129	170	153	15	20.8	42	58	1.5	410	1280	1120	1600	29320	9039320	0.166	132	148	1.5	3.66
100	140	210	187.6	24	32	67	62	3	762	2170	760	1000	29420		0.64	150	175	2.5	10.5
110	135	190	175	30	24	48	64	2	347	970	1200	1800	9069322	9069322	0.138	145	165	2	5.46
	150	230	195	43	35	73	69	3	545	1479	800	1200	9069422	9069422	0.393	165	192	2.5	12.8
	150	230	195	43	35	73	69	3	545	1479	800	1200	9069422Y	9069422Y	0.393				12.8
120	156.5	210	192.7	18	26.5	54	70	2.1	607	1940	1120	1600	29324		0.44	160	182	2	7.48
130	184	270	240.6	31	41	85	81	4	1210	3570	800	1200	29428		1.7	195	227	3	21.9
140	181	240	221.8	20	29	60	82	2.1	760	2530	980	1400	29328		0.8	185	208	2	10.6
150	185	250	220	36	31	60	87	2.1	525	1670	850	1300	9069330	9069330	0.54	195	220	2	10.2
150	207.6	300	270.5	32	43.5	90	92	4	1240	4390	770	1100	29430		2.6	220	253	3	28.2
160	200	270	240	45	32	67	92	3	610	2240	800	1200	9069332	9069332	0.736	210	236	2.5	13.5
160	218	320	289.5	34	46	95	99	5	1440	5050	760	1000	29432		3.2	230	271	4.	34.3
170	236	340	300	62	52	103	104	5	1400	4120	650	950	9069434		4.1	245	288	4	38.8
170	235	340	308.8	37	50	103	104	5	1820	5900	650	950	29434		4.3	245	288	4	41.9
180	225	300	270	46	36	73	103	3	790	2713	700	1000	9069336	9069336	0.883	235	263	2.5	18.3
	230	300	276.8	25	34.5	73	103	3	967	3864	700	1000	29336		1.7	235	263	2.5	19.4
	250	360	325.5	39	53	109	110	5	1770	6460	630	900	29436		5.4	260	305	4	49.2
190	224	270	250	30	24	48	110	2	420	1746	950	1500	9069238	9069238	0.442	220	244	2	8
d 190～300mm
Overall Dimensions									Rated Load		Limiting Rotational Speed		Bearing Designation		Minimum Load A	Mounting Dimensions			Weight
d	d1	D	D1	B	C	H	S	rmin	Dynamic Load C	Static Load C。	Grease	Oil	Current Model	Original Model	Minimum Load A	da	Da	ramax	Weight
mm									kN		r/min								kg
190	226	270	253.3	14	25.5	48	103	2	2100	2260	950	1500	29238			220	244	2	7.87
190	268	380	340	41	53.5	115	117	5	2070	7594	430	600	29438	9039438	6.228	275	322	4	56.4
200	270	400	340	62	62	122	122	5	1740	6054	430	600	9069440	9069440	5.685	290	338	4	60.6
200	278	400	360	43	59	122	122	5	2760	9000	600	800	29440E	9039440E	5.978	290	338	4	71.1
220	254	300	278	29	26	48	117	2	504	1932	438	1300	9069244	9069244	0.491	260	277	2	11.2
	270	360	320	52	44	85	125	4	970	3769	560	800	9069344	9069344	2.059	285	316	3	32.5
	278	360	332.9	29	41	85	125	4	1500	5470	560	800	29344		3.8	285	316	3	31.9
	290	420	360	76	58	122	132	6	1830	6624	400	560	9069444	9069444	6.665	310	360	5	68.7
240	280	340	323.9	19	31.2	60	130	2.1	800	3450	770	1100	29248E	9039248E	1.483	285	311	2	19.3
	290	380	340	52	44	85	135	4	1320	4251	560	800	9069348	9069348	2.556	300	337		33.8
	310	440	380	62	62	122	142	6	1920	7158	380	530	9069448	9069448	7.645	330	381		70
260	295	360	330	38	30	60	139	2.1	645	2877	700	1000	9069252	9069252	1.128	305	331	2	16.9
	302	360	340.8	19	30	60	139	2.1	944	4000	700	1000	29252		1.5	305	331	2	17.1
	315	420	370	60	46	95	148	5	1390	5793	480	670	9069352	9069352	4.705	330	372	4	45.6
	327	420	390	32	45	95	148	5	2220	8300	600	800	29352E	9039352E	6.5	330	372	4	53.6
	335	480	415	80	66	132	154	6	2120	8118	340	480	9069452	9069452	9.81	360	419	5	91.8
	346	480	434.9	48	63	132	154	6	2730	10800	450	600	29452		16	360	419	5	99.2
280	323	380	360.4	19	30	60	150	2.1	852	4330	700	1000	29256		1.7	325	351	2	18.1
	335	440	390	62	46	95	158	5	1410	5980	450	630	9069356	9069356	5.097	350	394	4	48.4
	348	440	409.8	32	46	95	158	5	1980	7710	650	870	29356		7	350	394	4	50.2
	365	520	450	75	72	145	166	6	2550	9828	300	480	9069456	9069456	14.5	390	446	5	115
	372	520	475.6	52	70	145	166	6	3800	13450	400	550	29456		23	390	446	5	130
300	365	480	425	58	52	109	168	5	1870	7640	400	560	9069360	9069360	8.527	380	429	4	61.4
d 320～500mm
Overall Dimensions									Rated Load		Limiting Rotational Speed		Bearing Designation		Minimum Load A	Mounting Dimensions			Weight
d	d1	D	D1	B	C	H	S	rmin	Dynamic Load C	Static Load C。	Grease	Oil	Current Model	Original Model	Minimum Load A	da	Da	ramax	Weight
mm									kN		r/min								kg
320	385	500	445	68	55	109	180	5	2030	7915	380	530	9069364	9069364	8.919	400	449	4	73.4
	369	440	413	21	38	73	172	3	1300	5610	800	1100	29264		2.8	375	406	2.5	29.4
	410	580	500	95	75	155	191	7.5	2930	11660	240	360	9069464	9069464	20.1	435	507	6	171
	424	580	528.5	55	74	155	191	7.5	3910	16180	350	500	29464		35	435	507	6	168
	424	580	528.5	55	74	170	176	7.5	3910	16180	350	500	29464/P6		35	435	507	6	168
	424	580	530	70	74	170	176	7.5	4520	16300	350	500	29464X2		35	435	507		185
340	390.5	460	436.5	21	37	73	183	3	1410	6440	800	1100	29268		3.1	395	427	2.5	32.3
	410	540	480	74	62	122	192	5	2710	11000	420	600	9069368	9069368	11	430	484	4	94.9
	462	620	590	61	82	170	201	7.5	4550	17480	220	320	29468	9039468	30.19	465	541	6	226
360	442	560	523.1	41	59.5	122	202	5	2744	12707	550	700	29372		15	450	504	4	104
360	460	640	555	87	85	170	210	7.5	3790	15440	190	300	9069472	9069472	35.38	485	560	6	199
380	439	520	497	27	41.8	85	202	4	1460	6800	550	750	29276E	9039276E	5.6	440	480	3	50
400	450	540	500	55	42	85	212	4	1260	7060	430	600	9069280	9069280	6.763	460	500	3	49
	475	620	555	81	65	132	225	6	2860	12050	260	380	9069380	9069380	20.59	500	557	5	134
	510	710	620	113	93	185	236	7.5	4820	19060	260	380	9069480	9069480	53.8	540	622	6	3.88
420	514.5	650	608.3	48	68.5	140	235	6	3660	17600	400	500	29384		26	525	585	5	161
440	508	600	570.2	30	48	95	235	5	2350	11100	550	750	29288		12	510	554	4	72.7
460	527	620	690.8	30	47	95	245	5	2440	11800	430	600	29292		12	530	575	4	81
460	567	710	685	51	72	150	257	6	4310	19000	320	450	29392	9039392	34	575	628	5	217
480	540	650	600	65	50	103	259	5	1950	10500	340	480	9069296	9069296	14.99	555	603	4	89.4
500	560	670	620	60	50	103	268	5	1950	10540	320	450	90692/500	90692/500	15	575	622	4	89.6
d 500～1620mm
Overall Dimensions									Rated Load		Limiting Rotational Speed		Bearing Designation		Minimum Load A	Mounting Dimensions			Weight
d	d1	D	D1	B	C	H	S	rmin	Dynamic Load C	Static Load C。	Grease	Oil	Current Model	Original Model	Minimum Load A	da	Da	ramax	Weight
mm									kN		r/min								kg
500	569	670	637.3	33	52	103	268	5	2590	13000	400	560	292/500		16	575	622	4	95.7
	590	750	675	94	74	150	280	6	3520	16900	180	280	90693/500	90693/500	39.99	615	683	5	203
	590	750	675	94	74	150	280	6	3520	16900	180	280	90693/500K	90693/500K	40	630	675	5	203
	630	870	760	140	110	224	290	9.5	6290	27340	120	180	90694/500	90694/500	110.8	670	765	8	520
	652.5	870	794.5	81	107.5	224	290	9.5	7850	34600	200	300	294/500		130	670	765	8	521
530	601.5	710	681.2	39	57	109	288	5	3220	16400	400	550	292/530		22	620	655	4	114
	690	920	841.5	85	110.4	236	309	9.5	9000	41950	120	160	294/530E	90394/530E	179.2	700	810	8	624
	700	920	840	145	116	236	309	9.5	8386	32630	120	160	90694/530	90694/530	137.8	700	810	8	573
560	625	750	695	72	58	115	300	5	2430	13320	260	380	90692/560	90692/560	23.92	645	697	4	127
600	688	800	780	39	65	122	321	5	3420	20500	240	340	292/600	90392/600	37.04	690	744	4	172
600	750	1030	900	156	130	258	360	12	9626	37580	100	130	90694/600	90694/600	223	800	900	10	700
630	705	850	785	84	64	132	338	6	3270	17760	190	300	90692/630	90692/630	42.73	730	789	5	188
630	728	850	830	42	67	132	338	6	4634	24450	190	300	292/630	90392/630	52.95	730	789	5	218
670	750	900	830	86	70	140	365	6	3670	20280	180	280	90692/670	90692/670	55.67	790	825	5	218
710	915	1220	1131.8	113	150	308	415	15	15500	67400	120	160	294/710		560	925	1073	12	1400
750	935	1280	1120	195	155	315	450	15	14340	58590	80	100	90694/750	90694/750	412.8	1000	1130	12	1309
750	964	1280	1183	122	152	315	436	15	159000	70800	140	200	294/750		590	1000	1130	12	1650
800	1034	1360	1310	120	165	335	462	15	20000	91000	130	180	294/800		680	1080	1185	12	1870
1060	1180	1400	1300	128	103	206	566	12	10500	58500	120	160	906921/1060	90692/1060	300	1225	1290	8	824
1320	1380	1540	1510	87	72	175	1446	6	4050	50400	70	90	691/1320	691/1320	140	1430	1470	8	480
1620	1700	1860	1799	45	80	150	850	6	6150	48400	50	70	292/1620			1740	1780	10	552
