Taper Roller Thrust Bearings

1.Product Introduction: The same as "Tapered Roller Thrust Bearings (1)", capable of bearing unidirectional heavy axial loads, impact-resistant, suitable for axial positioning of heavy-duty equipment.
2.Structure Type: Shaft washer + housing washer + single-row tapered rollers + cage, open structure.
3.Size Range: Inner diameter: 20 - 500mm, outer diameter: 50 - 600mm, height: 15 - 80mm.
4.Material: Shaft washer: GCr15/GCR15SIMN/20Cr2Ni4A, housing washer: GCr15/GCR15SIMN/20Cr2Ni4A, rolling elements (tapered rollers): GCr15/GCR15SIMN, cage: stamped steel / brass.
5.Accuracy: Conventional P0/P6 grades, heavy-duty precision models are of P5 grade.
6.Application Fields: Heavy-duty trucks, mining machinery, thrust end of large reducers.
7.Key Inspection Items: Conformity of tapered surface fitting, axial load-bearing capacity, integrity of rollers.

Send Inquiry

Download

Product Description

Data Sheet

Taper Roller Thrust Bearings: Engineered for Extreme Loads & Precision

When your machinery faces relentless axial forces, Taper Roller Thrust Bearings deliver unmatched performance. Designed to handle heavy loads up to 5,000 kN and temperatures exceeding 150°C, these bearings are the backbone of industrial durability. At LUOYANG INNO BEARING CO., LTD, we combine 30+ years of metallurgical expertise with precision engineering to create solutions that reduce downtime, extend equipment lifespan, and withstand the harshest environments—from mining crushers to smelting plants.

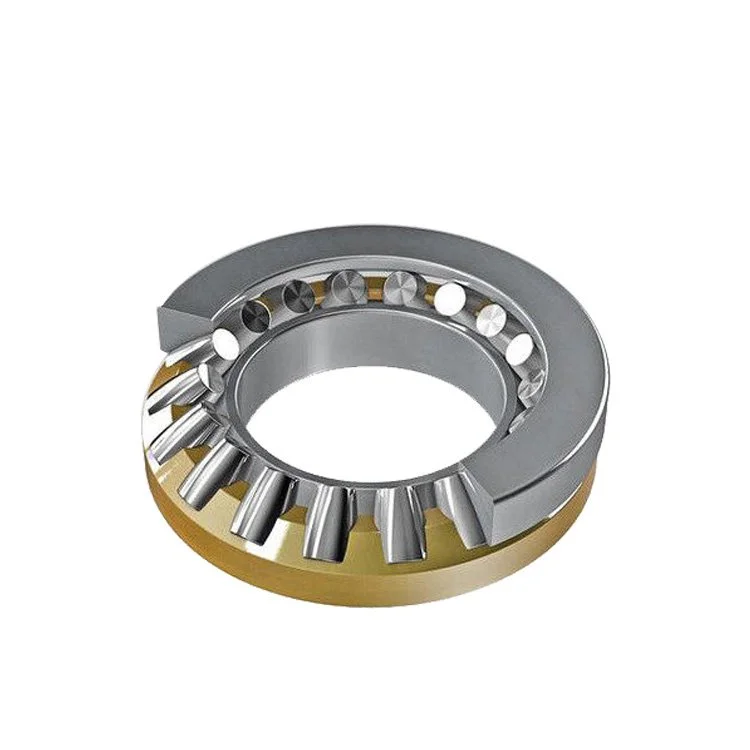

product-750-750

Technical Specifications: Built to Outperform

Parameter	Standard Series	Heavy-Duty Series	Custom Ultra-Large
Inner Diameter	50–500 mm	500–3,000 mm	3,000–5,000 mm
Axial Load	Up to 2,500 kN	Up to 5,000 kN	Bespoke Solutions
Temperature	-50°C to 150°C	-50°C to 150°C	Special Coatings Available
Precision	ABEC/P5	ABEC/P4	Custom Tolerance (±0.001mm)

Material Innovation

Rings & Rollers: Carburized GCr15/20Cr2Ni4A steel for wear resistance.
Cages: Stamped steel or brass for high-speed stability.

Where Taper Roller Thrust Bearings Excel?

1. Mining & Metallurgy

In jaw crushers and rolling mills, our bearings absorb shock loads while resisting abrasive dust. A steel plant reduced replacement costs by 40% after switching to our P4-grade bearings with surface-hardened rollers.

2. Heavy-Duty Gearboxes

Positioned at thrust ends, they maintain alignment under fluctuating loads. A gearbox manufacturer achieved 18+ months of service life in 24/7 cement production.

3. Port Machinery

Custom seals and corrosion-resistant coatings protect against saltwater exposure, extending maintenance intervals by 60%.

product-1256-742

Customization: Beyond Standard Dimensions

Need Taper Roller Thrust Bearings larger than φ5000mm or IoT-enabled sensors for predictive maintenance? Our engineers deliver:

Non-Standard Sizes: Up to φ5000mm with integrated load sensors.
Special Treatments: Tungsten carbide coatings for 3x longer lifespan in slurry pumps.
Fast-Track Production: 30% shorter lead times via modular manufacturing.

Quality Assurance: Zero Compromise

Every Taper Roller Thrust Bearing undergoes:

1. Material Screening: Spectrometry checks for alloy consistency.

2. Dimensional Accuracy: CMM-measured taper angles and surface finish.

3. Performance Testing: 12+ validation tests, including 500-hour endurance trials.

Result: 99.9% defect-free bearings, compliant with ISO 10482:2020.

Why Choose Us?

30+ Years of Expertise: Trusted by 500+ global projects.
48-Hour Delivery: 1,000+ standard bearings in stock.
Lifecycle Support: IoT-driven lubrication plans and 24/7 technical assistance.

FAQ

Q: Can you retrofit existing machinery with your products?

A: Yes! Share your shaft/housing dimensions, and we'll provide CAD-matched solutions.

Q: How do you ensure bearings survive abrasive environments?

A: Our proprietary heat treatment increases surface hardness to 60–65 HRC.

Q: What’s the lead time for φ3000mm custom bearings?

A: Typically 15–20 days—30% faster than industry averages.

Contact Us

Optimize Your Machinery's Axial Load Capacity Today with Taper Roller Thrust Bearings

Email sales@inno-bearing.com for a free load analysis or custom quote. Let's engineer reliability together!

d 25～65mm
Overall Dimensions						Rated Load		Limiting Rotational Speed		Bearing Designation		Minimum Load A	Mounting Dimensions			Weight
d	d1	D	D1	H	rmn	Dynamic Load C	Static Load C。	Grease	Oil	Current Model	Original Model	Minimum Load A	da	Da	ramax	Weight
mm						kN		r/min								kg
25	25.2	40.5	40.5	7	0.3	13.8	66	4000	5500	81705	589705	0.00031	39	26	0.3	0.038
34.925	37	79	78	15.875	1	76.8	316.8	2500	3400	817/34.925	549707	0.0083	75	38	1	0.441
35	35.2	52	52	8	0.6	18.1	95.74	3400	4500	87107	7009107	0.00057	51	36	0.6	0.0625
35	35	52	52	18.5	1						89707		51	36	1	0.173
40	40.2	60	60	13	0.6	38	118	1700	2400	81108	9108	0.0011	56	44	0.6	0.146
	40.2	68	68	19	1	83	255	1400	1900	81208	9208	0.0051	63	45	1	0.32
	40.2	90	90	16	1.1	92.9	400	2400	3100	87407X2	559708	0.0073	85	44	1.1	0.497
	42	78	78	22	1	91.1	285	2000	4000	89308M		0.009	76	44	1	0.526
45	45.2	110	110	19	1.1	150	619.5	1900	2600	81709	559709	0.0077	106	47	1.1	0.94
45	45	80	70	60	1						459709		68	46	1	1.21
50	50.2	78	78	22	1	91.5	300	1200	1700	81210	9210	0.0073	75	53	1	0.43
50	50	110	95	82	1.1						495710		91	54	1.1	3.59
55	55.2	78	78	16	0.6	69.5	285	1400	1900	81111	9111	0.0066	77	56	0.6	0.27
	57	90	90	25	1	116	365	950	1400	81211	9211	0.011	85	59	1	0.708
	57	105	105	30	1.1	145	564	1200	1600	89311	954311	0.019	102	59	1.1	1.38
60	62	85	85	17	1	80	300	1300	1800	81112	9112	0.0073	82	62	1	0.338
	62	95	95	26	1	117	332	1810	2400	81212	9212		91	64	1	0.792
	62	110	110	30	1.1	171	591	1400	2800	89312M		0.023	107	65	1	1.37
	62	130	130	32	1.5	206	998	1000	1400	87412	7559412	0.06	124	65	1.5	2.45
	60	100	130	12	1	91.4	372			KOW-87212X3			124	63	1	0.404
	60	120	105	82	1.1						459712		102	64	1.1	4.41
	60.2	138	138	22	2					81712	559712		134	65	2	1.18
65	65.2	90	90	18	1	83	320	1200	1700	81113	9113	0.0083	87	67	1	0.381
d 65～100mm
Overall Dimensions						Rated Load		Limiting Rotational Speed		Bearing Designation		Minimum Load A	Mounting Dimensions			Weight
d	d1	D	D1	H	rmn	Dynamic Load C	Static Load C。	Grease	Oil	Current Model	Original Model	Minimum Load A	da	Da	ramax	Weight
mm						kN		r/min								kg
65	67	100	100	27		140	490	1200	1700	81213	9213	0.019	96	69	1	0.874
	70	165	165	25						81714	559714		157	72	2	2.6
	65	90	90	26.4	1.5						89713		87	67	1.5	0.63
70	72	95	95	18	1	81.9	254	1200	1700	81114	9214	0.0096	92	72	1	0.403
72	72	108	102	13	1.5					81814	559814		99	74	1.5
75	77	100	100	19	1	75.5	266	1100	1600	81115	9115	0.0068	97	78	1	0.455
	77	110	110	27		125	440	850	1200	81215	9215	0.015	106	79	1	0.979
	77	135	135	36	15	218	920	1200	2400	89315M		0.042	132	83	1.5	2.51
80	80.2	150	150	26	1.5	238	1056	1400	1900	81716	9716	0.032	143	82	1.5	2.06
80	80.2	150	150	26	2.5					81716L	9716L		143			2.06
	82	105	105	19	l	76.5	134	1000	1500	81116	9116	0.0073	102	83	1	0.4
	82	115	115	28	1	160	270	850	1200	81216	9216	0.03	112	84	1	0.9
	90.2	135	134	62	0.6	311	1256	1000	1500	82716	59716	0.044	130	92	0.6	3.28
85	85.2	110	110	19	l	76.5	310	1000	1500	81117	9117	0.0077	108	87	1	0.52
	88	125	125	31	I	153	550	800	1100	81217	9217	0.024	119	90	1	1.44
	88	150	150	39	1.5	286	1200	900	1200	89317	9549317	0.054	144	91	1.5	3.35
	88	150	150	39	1.5	257	1100	1100	2200	89317M		0.054	147	93	1.5	3.29
90	90.2	120	120	22	I	104	415	900	1300	81118	9118	0.014	117	93	1	0.797
90	90.2	160	160	26	1.5	250	1210	1300	1800	81718	9718	0.039	154	96	1.5	2.25
100			135	11	1	77.6	530	1800	2500	KIW-87120	7789120	0.028	131	104		0.517
	100.2	190	190	39	1.5	451	2090	1000	1400	81720	9720	0.06	182	105		5.11
	100.2	135	135	25	1	152	544	850	1200	81120	9220	0.028	131	104	1	1.19
	103	150	150	38	1.1	214	830	800	1100	81220	9220	0.054	142	107	l	2.58
	103	170	170	42	1.5	327	1520	760	1100	89320	9549320	0.074	163	108	1.5	4.49
