Custom Slewing Ring Gear Solutions for Large-Scale Equipment

The most important thing for operational excellence is slewing ring gear Solutions for big industrial machinery that needs to rotate precisely under huge loads. These high-tech parts combine the functions of bearings and gears, which lets motors send power directly without using any other transmission parts. With 30 years of engineering experience, INNO Bearing is the leader in the US market when it comes to designing and making custom rotary bearing solutions that meet the exact needs of wind energy, heavy construction, mining, and aerospace applications.

Understanding Slewing Ring Gears: Definitions, Types, and Working Principles

Slewing ring gear assemblies are a completely new way to design heavy-duty rotation systems. They combine the load-bearing abilities of precision bearings with the power-transfer efficiency of gear mechanisms. These built-in parts get rid of the need for separate transmission parts. They connect directly to motor gears to make controlling rotation in large machines easy.

Basic Function and Structural Design

The basic idea behind slewing ring gears is to combine inner and outer rings that have been machined with straight or helical teeth all around them. Modules usually come in sizes between 2 and 12, which lets you meet a wide range of torque needs. The gear teeth are heated and cooled to achieve the best surface hardness, which is between HRC58 and 62. This gives them great wear resistance even when they are in use all the time.

The core assembly is made up of inner and outer rings that are integrally forged from high-quality materials like 50Mn and 42CrMo steel alloys. Rolling elements are made of GCr15 bearing steel or GCr15SiMn, which makes them more resistant to impact. Specialized cage designs keep the spacing between the elements exact. Nitrile rubber or fluororubber compounds are used in advanced sealing systems. Fluororubber compounds are better at resisting oil contamination and high temperatures.

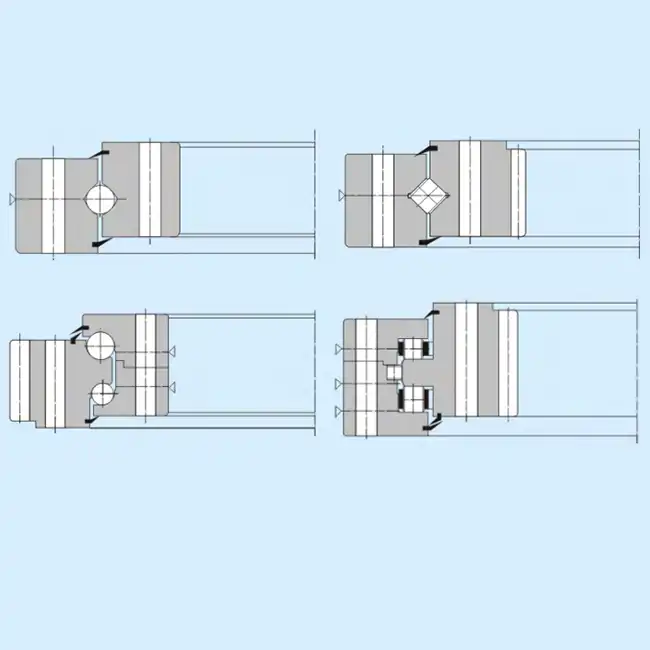

Configuration Types and Load Characteristics

Single-row configurations work best in situations where the load capacity is moderate and installation is straightforward. When used in tower cranes and portal cranes, these designs make the best use of space while still providing reliable performance. Double-row configurations are great for heavy-duty applications that have a lot of tilting moments and combined loads because they can spread the load out better.

The size range can accommodate outer ring diameters from 500mm to 3500mm, which is good for a lot of different types of equipment. Gear rings are usually between 20 and 80 mm wide and 30 to 100 mm high, which gives them a lot of contact areas for moving power. This wide range makes sure that it works with a lot of different kinds of equipment, from small industrial robots to huge wind turbine assemblies.

Comparing Slewing Ring Gear Options: Making the Right Choice for Your Equipment

To choose the best rotary bearing solutions, you need to carefully weigh the performance characteristics of each one against the needs of the application. Different slewing ring configurations have direct effects on how well equipment works, how much maintenance it needs, and how long it lasts.

Material Properties and Performance Characteristics

Better slewing ring gear assemblies are different from regular ones because they have better metallurgical properties. Our manufacturing processes use vacuum degassing to get 99.99% pure materials, which makes them much more resistant to fatigue and improves their structural integrity. The 42CrMo steel composition gives it great tensile strength and resistance to impact. Specialized heat treatment processes improve both the core toughness and the surface hardness.

P4 and P5 levels of accuracy are reached through precise manufacturing tolerances, which ensures noise levels below 60 decibels and smooth operation. These traits are very important in precise applications like medical imaging equipment and radar systems, where controlling vibrations is still very important.

Load Capacity and Environmental Considerations

Single-row four-point contact configurations work well in situations with dynamic loading and are flexible enough to be used in a wide range of conditions. Double-row arrangements are better at supporting static loads, which makes them perfect for heavy construction equipment that has to turn over a lot of times. Three-row roller configurations increase the load capacity while keeping the structure stiff. This is especially useful for mobile cranes and port machinery.

Specialized coatings for corrosive conditions are one way that environmental resistance works. Marine-grade seals have been tested for 2000 hours or more in salt spray. Ceramic-coated raceways and better heat treatment methods make the temperature stability go above 120°C, which lets them work reliably in steel mills and other metallurgical settings.

Custom Slewing Ring Gear Solutions: Design, Manufacturing, and Quality Assurance

Customization features are essential for meeting the specific needs of operations in a wide range of industries. When we do engineering work, we focus on using precise manufacturing methods to make slewing ring gear solutions that are perfect for the performance needs and environmental conditions of each job.

Advanced Manufacturing Processes

With precise forging techniques, dense structures are made from materials that are stronger than cast alternatives. High-precision CNC milling and gear cutting machines make sure that the tooth profiles and size tolerances are correct. During the important heat treatment phase, induction hardening is used to get the best hardness distribution. The tooth surfaces should reach 50–55 HRC, while the core should stay tough at 30–35 HRC to protect against impact.

Quality control protocols include a wide range of tests, such as vibration testing, fatigue analysis, and seal verification. Digital twin simulations copy more than 10,000 hours of operation before they are made, making sure that the design works well in real-world situations. Each batch goes through a strict inspection process that checks the accuracy of the gear pitch, the depth of the carburized layer, and the hardness of the surface.

Customization Capabilities and Technical Support

Our φ5000mm production facilities can handle non-standard sizes and deliver within 15 to 20 days, which is 30% faster than the standard time frame in the industry. As part of engineering support, 3D CAD modeling, prototype development, and optimization for specific uses are all done. When choosing materials, different grades of steel and special coatings are used to meet the needs of the environment.

Quality assurance for slewing ring gear: following the rules set by ISO 9001, CE, and GB/T certifications makes sure that international standards are met. Traceability documentation gives full information about the history of a material and proof of its performance, meeting strict needs for aerospace and defense uses.

Installation, Maintenance, and Longevity: Best Practices for Slewing Ring Gear Performance

To get the most out of an operational lifespan, installation procedures and preventative maintenance must be done in a planned way. Using these practices correctly cuts down on downtime by a large amount and increases the service life of parts.

Installation Procedures and Common Challenges

The success of the installation depends on how well the mounting surface is prepared and how tight the bolts are tightened. To keep bearings from warping when they're under load, mounting surfaces need to be flat within certain tolerances. Cross-pattern procedures are used for bolt tightening sequences to make sure that the load is spread evenly across the mounting interface.

Checking the alignment and protecting the seals during assembly are common problems that come up during installation. To address these concerns, our technical support team gives detailed installation instructions and suggestions for specialized tools. Handling things the right way keeps precision-machined surfaces from getting damaged and keeps the seal's integrity during the installation process.

Maintenance Protocols and Performance Monitoring

When to lubricate depends on the operating conditions and the type of load. For example, high-temperature applications need to be serviced more often. The main goal of inspection protocols is to find wear patterns, strange vibration signatures, and seal degradation as soon as possible. Monitoring the condition of gear teeth and bearing raceway surfaces on a regular basis lets you plan maintenance ahead of time.

IoT sensors can be added to performance monitoring systems to continuously check the situation and send real-time alerts for problems that are starting to happen. These advanced monitoring features allow for planned maintenance plans that increase the availability of equipment while lowering the number of unexpected breakdowns.

Procurement and Sourcing: How to Buy and Partner with Trusted Slewing Ring Gear Manufacturers？

Good procurement strategies for slewing ring gear find a balance between technical requirements, supplier dependability, and lowering costs. Understanding the most important evaluation criteria helps you make smart choices throughout the sourcing process.

Supplier Evaluation and Certification Verification

When evaluating a manufacturer, you should focus on their production capabilities, quality management systems, and technical support resources. Verification of ISO certification makes sure that quality standards are met that are recognized around the world. Audits of manufacturing facilities show how things are made and how quality control is done.

Lead times are very different for standard and custom products. For standard configurations, emergency replacements can be made within 48 hours if they are in stock. Custom projects usually take between 15 and 30 days, but this depends on how complicated they are and what specifications are needed. Reliable suppliers keep regional warehouse networks up and running so that they can respond quickly.

Pricing Factors and Contract Optimization

Pricing is based on things like the grade of the material, how complicated the customization is, and the number of orders. Most of the time, volume commitments allow for better pricing structures while also guaranteeing a steady supply. Total cost of ownership is affected by logistics and transportation issues, especially for big slewing ring gear assemblies that need special handling.

As you negotiate a contract, you should talk about technical support, warranty coverage, and the availability of replacement parts. Long-term partnerships often have benefits, such as giving you priority scheduling and access to dedicated technical resources.

Conclusion

Slewing ring gear solutions are important parts that make it possible for large pieces of industrial equipment to work reliably in many different fields. When bearing and gear functions are combined, they work better and take up less space. They also transfer power more efficiently. To have a successful implementation, you need to pay close attention to the quality standards, application-specific requirements, and supplier capabilities. Our all-around approach to custom solutions, high-quality manufacturing, and technical support makes sure that even the most difficult applications run at their best. Investing in high-quality rotary bearing systems pays off in the long run by making the machine more reliable, requiring less maintenance, and lasting longer.

FAQ

What factors determine the optimal slewing ring gear configuration for my application?

Configuration selection depends on load characteristics, environmental conditions, and precision requirements. Single-row designs are good for light loads and limited space, while double-row designs can handle heavy radial and axial loads. Three-row arrangements can hold the most weight for tough situations. Our engineering team looks at specific needs to suggest the best configurations.

How frequently should slewing ring gears undergo inspection and maintenance?

How often inspections are done depends on the operating conditions and the load. Standard applications usually need visual checks every three months and thorough checks once a year. In places with a lot of traffic or continuous operation, monitoring may need to be done once a month. Schedules for lubrication range from 500 to 2000 operating hours, depending on the load and the environment.

Can custom slewing ring gears accommodate non-standard dimensions and specifications?

When it comes to custom tooth profiles and special materials, we can make things up to Ά5000mm in diameter. Non-standard configurations take 15 to 20 days to make, and full engineering support is given during the whole design process. There are different grades of steel and coating systems that can be used as materials, depending on the environment.

Partner with INNO Bearing for Superior Slewing Ring Gear Solutions

INNO Bearing delivers unmatched expertise in custom slewing ring gear manufacturing with nearly 30 years of industry experience. Our comprehensive capabilities span from initial design consultation through ongoing technical support, ensuring optimal performance for your critical applications. As a trusted slewing ring gear maker, we combine cutting-edge production methods and strict quality control to meet the tough needs of the wind energy, construction, and heavy machinery industries. Email our engineering team at sales@inno-bearing.com to talk about your specific requirements and find out how our custom solutions can enhance your equipment performance and reliability.
